3/4 Main-saw Unit Assembly Without Auto-tension

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA108463	3	Bolt	5/16" UNF X 1 3/4"
2	WA108441	1	Guard	-
3	WA101959	18	Bolt	5/16" UNF X 1"
4	WA109147	1	Retainer	Bearing
5	WA115658	1	Arm	Saw
6	WA103505	1	Bolt	7/16" UNC X 3" G8
7	F350606	1	Seal	Felt
8	WA102933	1	Ball Bearing	-
9	WA106125	1	Adapter	Saw mount
10	F351031	1	Lubrication Fitting	1/4" UNF
11	WA100603	1	O-Ring	731-182 X 2.5N70
12	WA102872	1	Ring	-
13	WA106146	1	Adapter	Saw mount
14	WA100426	8	Lock Washer	5/16", Disc-lock
15	WA102464	8	Bolt	5/16" UNF X 1 1/2" G8
16	WA103169	1	Motor	-
16	WA100772	1	Seal	Shaft seal
17	WA102555	4	Washer	1/2", ORDER WA121409
17	WA121409	4	Washer	1/2"
18	WA108273	4	Bolt	1/2" UNF X 1 1/2"
18	WA103072	4	Bolt	1/2" UNF X 1 1/2" G8, ORDER WA108273
19	F351059	1	Fitting	Banjo
20	WA102097	2	Sealing Washer	1/8" Dowty (-02)
21	WA102906	1	O-Ring	731-214N90-CODE 62 ID 0.984
22	F350806	1	Sealing Washer	18 mm, Dowty
23	WA101121	1	Fitting	18 mm X 9/16" JIC, Nipple
24	WA108477	2	Flange	Hose clamp kit
25	12M7172	4	Lock Washer	10.380 mm
26	19M8867	4	Screw	M10 X 35
27	WA100299	8	Bolt	7/16" X 1 1/4" UNC
28	WA102398	8	Washer	7/6", Disc-lock
29	F351076	1	Pipe Plug	3/8" BSPP, Dust
30	WA106149	1	Support	-
31	WA102525	2	Washer	5/16", Hardened ORDER F042820
31	F042820	2	WASHER	-
32	WA101342	2	Bolt	5/16" UNC X 3/4" G8, ORDER WA102302
32	WA102302	2	Screw	-
33	WA120501	1	Proximity Sensor	NLA; ORDER <service-part>F351139</service-part> PNP, TimberRite™ controller
33	F351139	1	Proximity Sensor	ORDER WA136319
34	WA136319	1	Proximity Sensor	PNP, TimberRite™ and H16 Controller

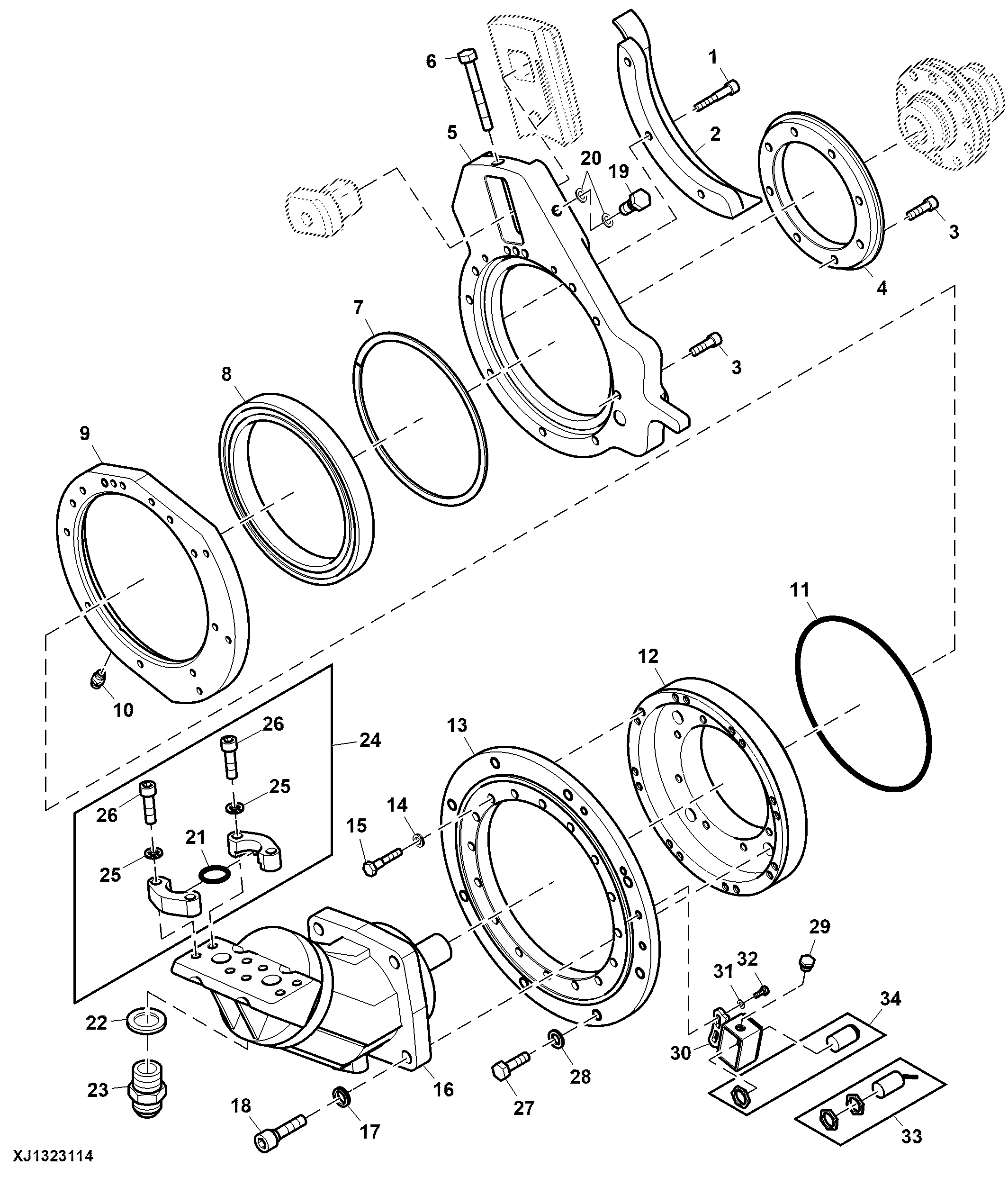

3/4 Main-saw Unit Assembly Without Auto-tension
