3/4" Main Saw Oiler Hoses (000475 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

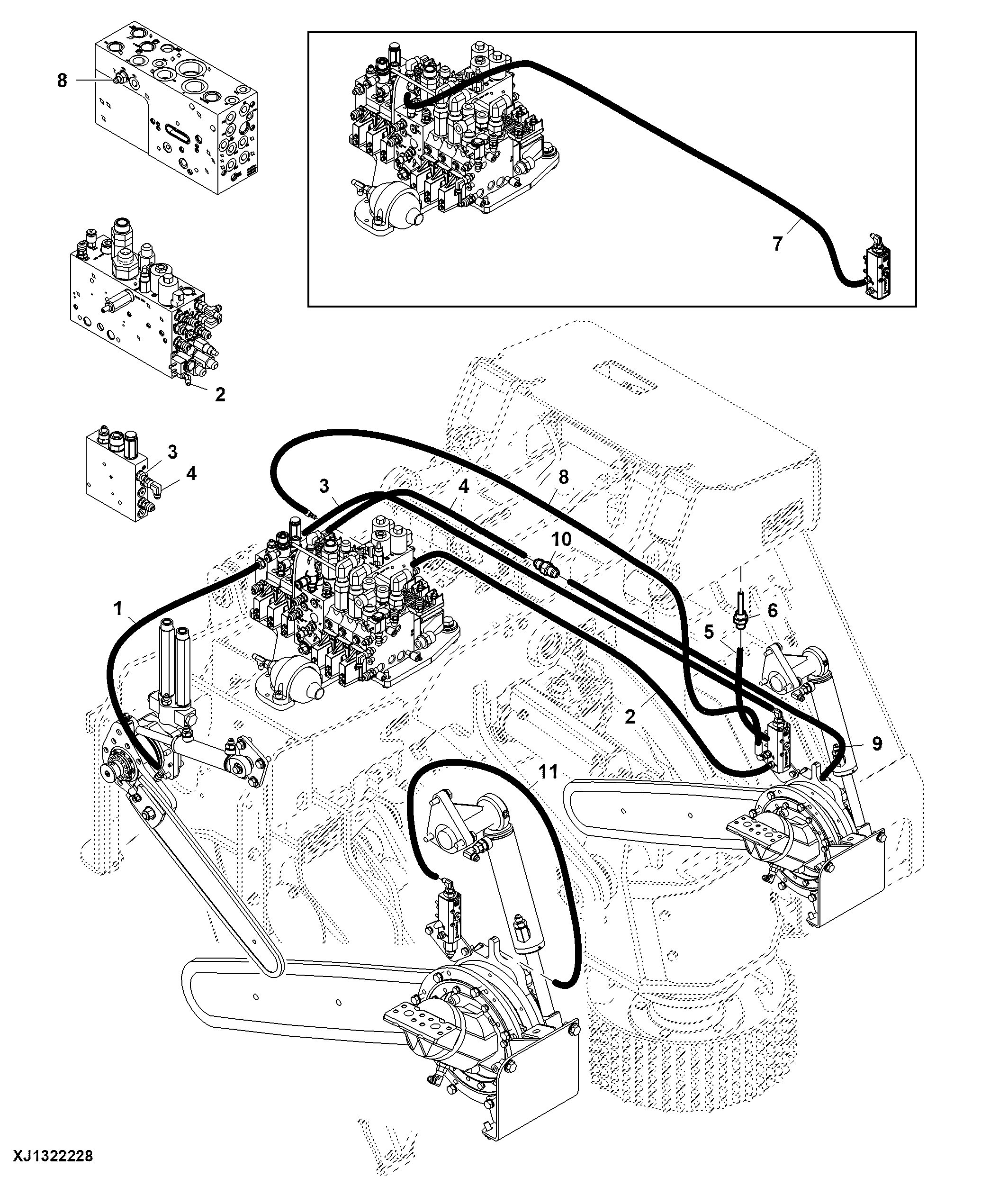

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA115526	1	Hydraulic Hose	Top saw
2	WA115535	1	Hydraulic Hose	Pulse oiler in to main valve
3	WA115548	1	Hydraulic Hose	Pulse oiler lube oil hose
4	WA116889	1	Hydraulic Hose	Joiner to main valve, for top saw option
5	WA115545	1	Hydraulic Hose	Olil tank to oil block
6	WA122172	1	Hose Fitting	-
7	WA130981	1	Hydraulic Hose	Pulse oiler constant pressure USE WITH WA128875
8	WA134614	1	Hydraulic Hose	Pulse oiler constant pressure USE WITH WA134574
9	WA115552	1	Hydraulic Hose	3/4" main saw swing arm lube to joiner, for top saw option
10	WA116750	1	Fitting	7/16" JICM X 7/16" JICM
11	WA115552	1	Hydraulic Hose	3/4" main saw swing arm lube to pulse oiler (OUT) for non top saw option

3/4" Main Saw Oiler Hoses (000475 - )
