End Section, Main Valve, 1 of 2 (000405 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA135006	1	Manifold	-
1	WA133192	1	Manifold	ORDER WA135006
2	F351044	1	Elbow Fitting	9/16" JICM X 3/8" BSPPM, For top saw
3	WA129373	1	Seal	O-ring, V-06, OD 14.3 X 2.4 mm
4	WA129362	1	Sealing Washer	3/8" Retaining ring, OD 23.9 X 1.6 mm
5	F351110	1	Pressure Relief Valve	Top saw cylinder flow control (TSFC)
6	WA103057	3	Seal Kit	Includes 2 o-rings and 3 back-up rings
7	WA115104	1	Valve	45 bar, ORDER WA110080
8	WA115088	2	Seal Kit	-
9	WA103344	1	Adapter Fitting	3/8" BSPPM X 9/16" JICM
10	WA103517	6	Sealing Washer	3/8" Dowty (-06)
11	WA115768	2	Elbow Fitting	11/16" ORFSM X 11/16" ORFSF S/N
12	WA102254	1	Elbow Fitting	1/4" BSP X 7/16" JIC
13	WA101140	8	Sealing Washer	1/4" Dowty (-04)
14	WA103606	7	Plug	1/4" BSPPM, Internal hex
15	WA124438	1	Seal Kit	-
16	WA125569	1	Check Valve	-
17	WA115767	2	Adapter	3/8" BSP X 11/16" ORFS
18	WA101135	1	Fitting	1/4" BSPPM O/R - M16 X 2, Tilt cylinder B pressure (TILTBTP) test point
19	WA125361	1	Valve	8 bar, Top saw cylinder direction control (TSDCV)
20	WA125920	1	Seal Kit	Includes 4 o-rings and 6 back-up rings
21	F351076	1	Pipe Plug	For non top saw
22	WA129372	1	Seal	OD 11.1 X 2.4 mm, O-ring, V-04
23	F351111	1	Pressure Relief Valve	250 bar, Tilt A pressure relief valve (TILTARV)
24	WA110327	1	Seal Kit	Includes 2 o-rings and 3 back-up rings
25	WA102842	1	Relief Valve	150 bar, Tilt B pressure (TILTBRV)
26	WA103217	1	O-Ring	-
27	WA103290	1	Threaded Nipple	1/2" BSPPM X 13/16" ORFSM, For top saw
28	WA101547	1	Sealing Washer	1/2" Dowty (-08)
29	WA100674	1	O-Ring	731-014N90-ORFS ID 0.488" (12.4 mm) X W 0.07" (1.78 mm) (-08)
30	WA115083	1	Plug	For non top saw
31	WA115056	1	Fitting	-
32	F351114	1	Plug	For non top saw
33	F351110	1	Pressure Relief Valve	Tilt B flow control valve (TILTBFC)
34	WA130080	1	Orifice	5 mm
35	F351110	1	Pressure Relief Valve	Tilt A flow control valve (TILTAFC)
36	F687525	1	Sensor	600 bar, Head main pressure
37	F696375	1	Sensor	25 bar, Case drain pressure
38	WA129361	1	Sealing Washer	OD 20.2 X 1.5 mm, 1/4" retaining ring
39	WA101135	1	Fitting	Measuring cylinder arm test point
40	WA115104	1	Valve	120 bar, ORDER WA110080
41	WA118952	1	O-Ring	9.3 mm X 1.78 mm
42	WA119458	3	Sealing Washer	1/4" DIN 3869
43	WA135010	1	Pressure Relief Valve	250 bar, Tilt A pressure relief valve (TILTARV)
44	TT226864	1	O-Ring	-
45	WA110080	2	Pressure Relief Valve	(a) Top saw pressure reducing (TSPRR), (b) Tilt B pressure reducing (TBPRR)
46	WA108412	2	Seal Kit	-
47	WA136202	1	Plug	For non top saw option
48	WA133116	1	Seal Kit	Size 10 3-Way

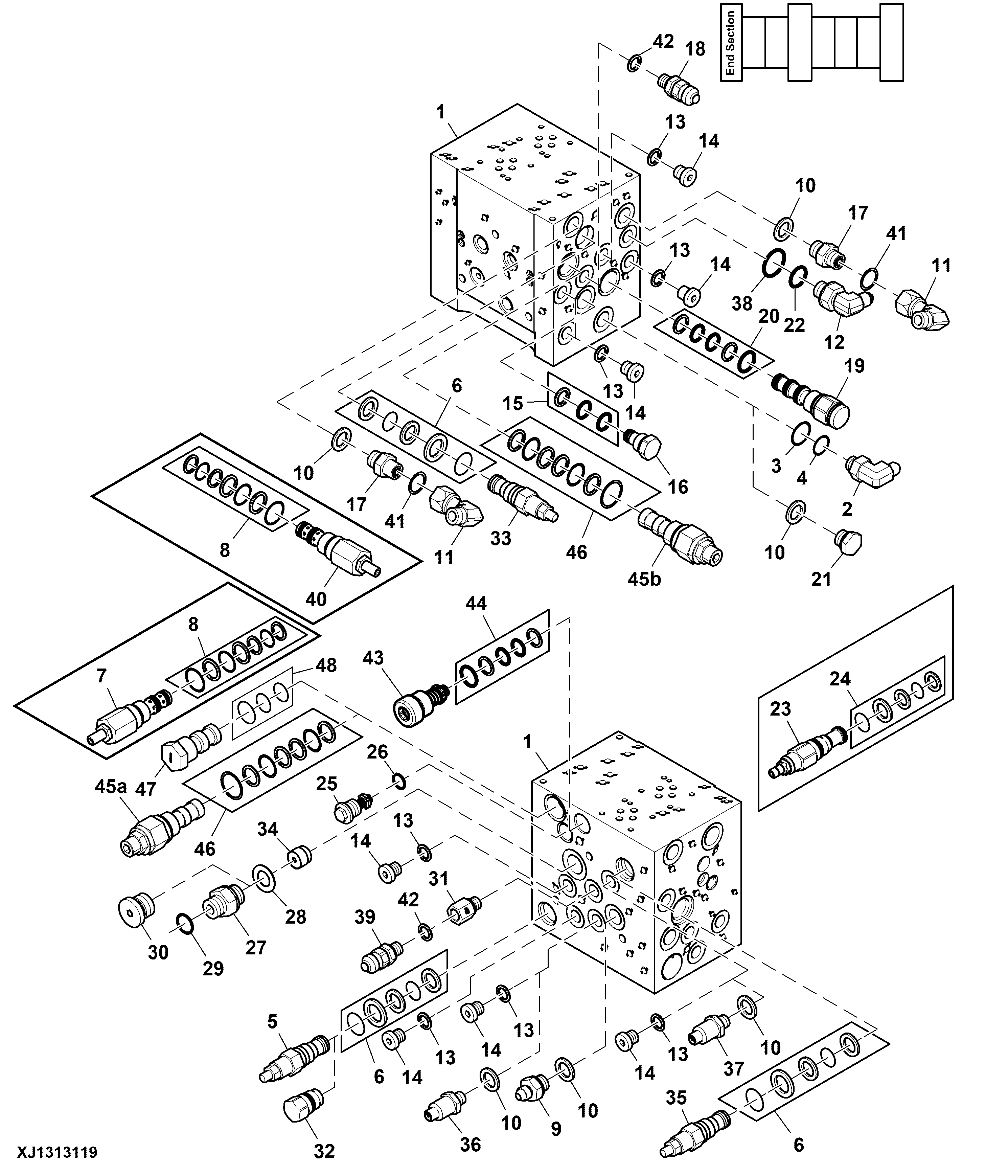

End Section, Main Valve, 1 of 2 (000405 - )
