Открытый узел

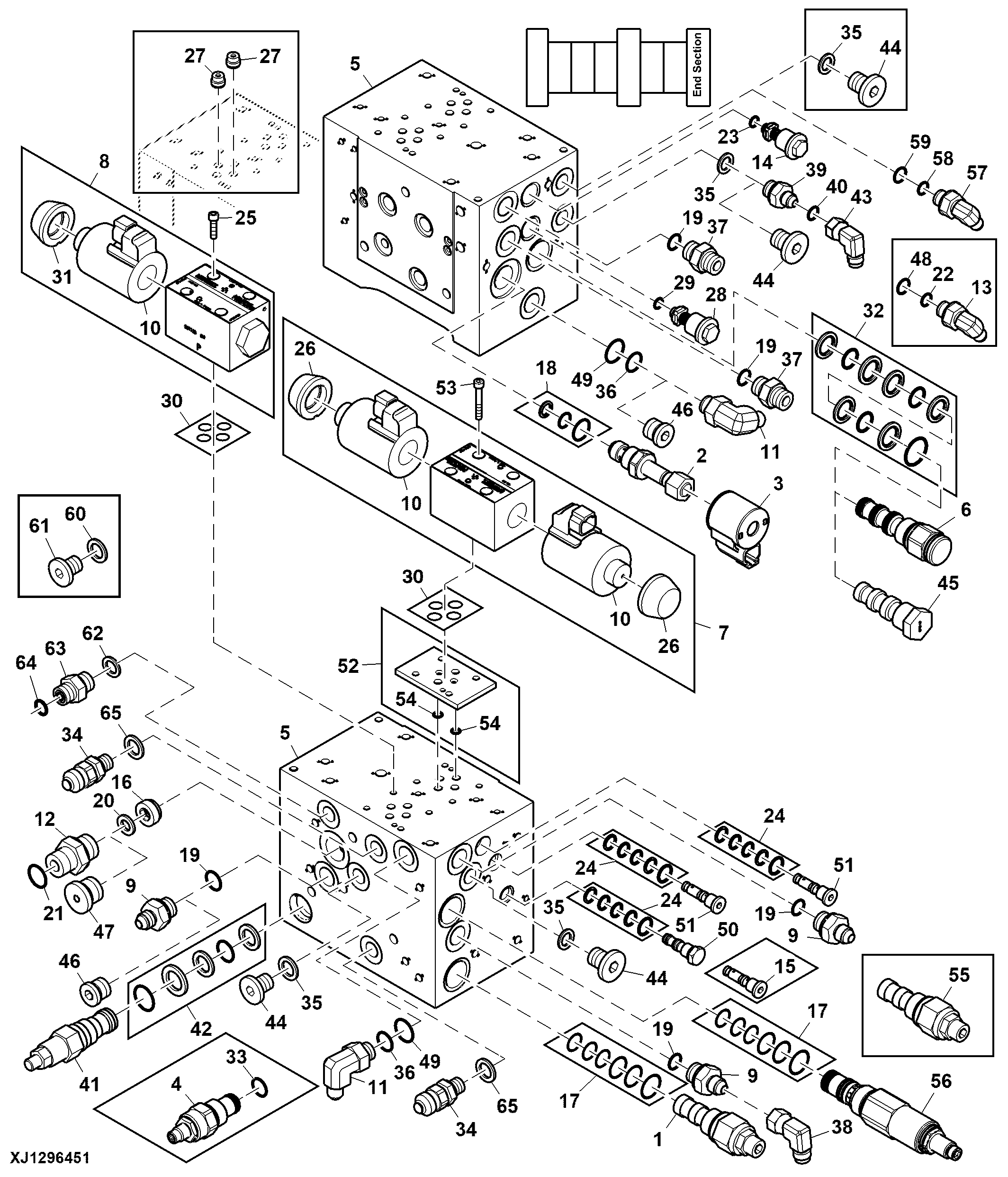

End Section, Main Valve ( - 000404)

End Section, Main Valve ( - 000404)

End Section, Main Valve ( - 000404)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

End Section, Main Valve ( - 000404)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA110080	1	Pressure Relief Valve	-
2	WA112809	1	Hydraulic Pressure Valve	-
3	WA123551	1	Electrical Coil	-
4	WA123557	1	Flow Control Hyd. Valve	-
5	WA125359	1	Manifold	-
6	WA125361	1	Valve	Directional Piloted
7	WA133059	1	Solenoid Valve	SUB FOR WA125482
8	WA125483	1	Solenoid Valve	-
9	WA103344	3	Adapter Fitting	3/8" BSPPM - 9/16" JICM
10	WA125946	3	Solenoid Valve Coil	-
11	F351044	2	Elbow Fitting	9/16" JICM - 3/8" BSPPM
12	WA103290	1	Threaded Nipple	1/2" BSPPM - 13/16" ORFSM
13	WA102254	1	Elbow Fitting	7/16" JICM - 1/4" BSPPM
14	WA100418	2	Relief Valve	210 BAR
15	WA106184	1	Valve	ORDER <service-part>WA129785</service-part>
16	WA125624	1	Orifice	6 mm
16	WA130080	1	Orifice	5 mm
17	WA108412	2	Seal Kit	-
18	WA116615	1	Seal Kit	Includes 2 O-rings and 1 Back-up ring
19	WA103517	4	Sealing Washer	3/8" Dowty Seal (- 06)
20	WA101547	1	Sealing Washer	1/2" Dowty Seal (- 08)
21	WA100674	1	O-Ring	731-014N90-ORFS ID 0.488" (12.4 mm) X W 0.07" (1.78 mm) (-08)
22	WA129372	1	Seal	O-ring, V-04, OD 11.1 X 2.4 mm
23	WA103217	1	O-Ring	731-016N90-ORFS ID
24	WA125921	3	Seal Kit	Includes 3 O-rings and 2 Back-up rings
25	19M8576	4	Screw	M5 X 30
26	WA125945	2	Cap	Tilt Valve
27	WA125772	2	Orifice	3 mm
28	WA103151	1	Pressure Relief Valve	265 BAR
29	WA103217	1	O-Ring	016N90
30	WA125948	2	Seal Kit	-
31	WA125944	1	Cap	-
32	WA125920	1	Seal Kit	Includes 4 O-rings and 6 Back-up rings
33	WA125922	1	Seal Kit	-
34	WA101135	2	Fitting	Test Port
35	WA101140	4	Sealing Washer	1/4 Dowty (-04)
36	WA129373	2	Seal	O-ring, V-06, OD 14.3 X 2.4 mm
37	WA115767	2	Adapter	1/2" BSPP - 11/16" ORFS
38	WA101141	1	Elbow Fitting	9/16" -09 JICM
39	WA101361	1	Threaded Nipple	1/4" BSPF X 7/16" JIC
40	-	1	Part 41	AS568A 904N90 (9.92 mm X 1.83 mm)
41	F351110	1	Pressure Relief Valve	-
42	WA103057	1	Seal Kit	Includes 2 O-rings and 3 Back-up rings
43	WA100477	1	Elbow Fitting	7/16" JIC X 7/16" JIC
44	WA103606	4	Plug	1/4" BSPP, Internal Hex
45	WA117307	1	Plug	Non-top-saw
46	WA125616	2	Plug	3/8" BSPP, Non-top-saw Internal Hex
47	WA115083	1	Plug	Non-top-saw
48	WA129361	1	Sealing Washer	1/4" Retaining Ring, OD 20.2 X 1.5 mm
49	WA129362	2	Sealing Washer	3/8" Retaining Ring, OD 23.9 X 1.6 mm
50	WA129785	1	Plug	Cavity Plug
51	WA106184	2	Valve	Shuttle Valve
52	WA130061	1	Plate	Orifice
53	19M10649	4	Socket Head Screw	M5 X 35
54	WA111292	4	O-Ring	012N90
55	WA110080	1	Pressure Relief Valve	-
56	WA131139	1	Pressure Relief Valve	-
57	WA102254	1	Elbow Fitting	1/4" BSP X 7/16" JIC M/M, Compact 90°
58	WA129372	1	Seal	O-ring, V-04, OD 11.1 X 2.4 mm
59	WA129361	1	Sealing Washer	1/4" Retaining Ring, OD 20.2 X 1.5 mm
60	WA101140	1	Sealing Washer	1/4 Dowty (-04)
61	WA103606	1	Plug	1/4" BSPP, Internal Hex
62	WA101140	1	Sealing Washer	1/4 Dowty (-04)
63	WA115766	1	Adapter Fitting	1/4" BSPP - 11/16" ORFSM
64	WA118952	1	O-Ring	731-012N90-ORFS ID 0.364" (9.3 mm) X W 0.07" (1.78 mm) -06
65	WA119458	2	Sealing Washer	1/4" DIN 3869
..	WA130301	1	Orifice Kit	Top-saw Orifice Field Kit: Includes x1 Orifice (WA130080); and x1 Instructions (WA130300)
..	WA130122	1	Plate Kit	Orifice Plate Assembly Kit: Includes x1 Plate (WA130061); x4 O-rings (WA111292); and x4 Screws (19M10649)
