Открытый узел

Valve Block TimberRite™ (002000 - )

Valve Block TimberRite™ (002000 - )

Valve Block TimberRite™ (002000 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

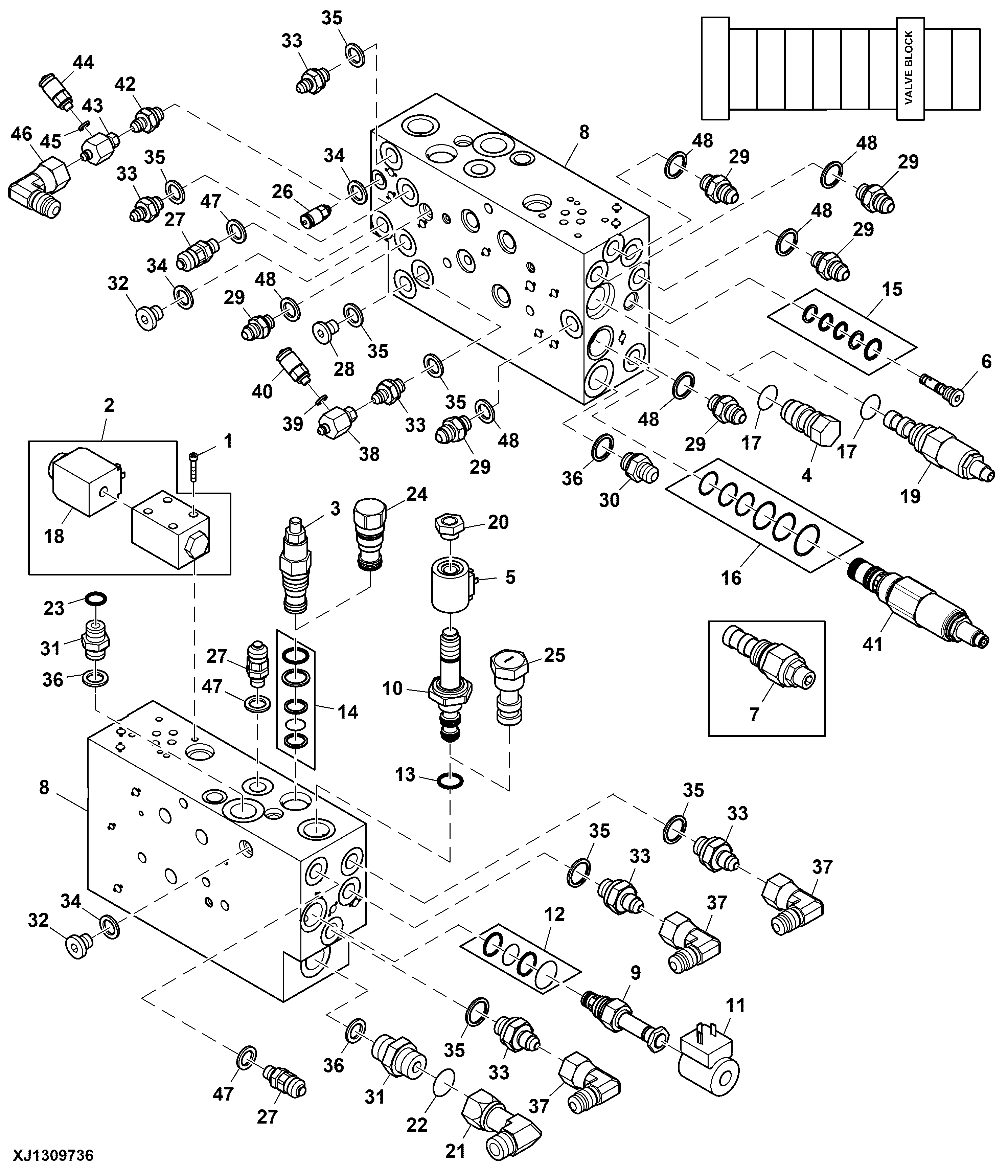

Valve Block TimberRite™ (002000 - )

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8576	4	Screw	M5 X 30
2	F351106	1	Solenoid Valve	-
3	F351110	1	Pressure Relief Valve	With top saw
4	F351113	1	Plug	With 3/4 manual tension saw
5	WA102012	1	Solenoid Valve Coil	-
6	WA106184	1	Valve	-
7	WA110080	1	Pressure Relief Valve	-
8	WA122388	1	Manifold	-
9	WA122435	1	Solenoid Valve	-
10	WA122436	1	Solenoid Valve	With top saw
11	WA122584	1	Solenoid Valve Coil	Tilt lock
12	WA123548	1	Seal Kit	Includes 2 O-rings and 2 Back-up rings USE WITH WA122435
13	WA110243	1	Seal Kit	-
14	WA103057	1	Seal Kit	Includes 2 O-rings and 3 back-up rings
15	WA125921	1	Seal Kit	-
16	WA108412	1	Seal Kit	-
17	WA120398	2	Seal Kit	-
18	WA105576	1	Electrical Coil	-
19	WA101874	1	Pressure Relief Valve	With SC100 saw
19	WA119415	1	Pressure Relief Valve	With SC100 and 3/4 Auto-tension Saws
20	WA121179	1	Nut	-
21	WA102610	1	Elbow Fitting	11/16" ORFS
22	WA118952	1	O-Ring	AS568A 012N90 (9.25 mm x 1.78 mm)
23	WA100674	1	O-Ring	AS568A 014N90 (12.42 mm x 1.78 mm)
24	WA123087	1	Plug	Without top saw
25	WA101447	1	Pipe Plug	Without top saw
26	WA100951	1	Test Device	1/8" BSPPM O/R - M16 X 2, Test
27	WA101135	3	Fitting	1/4" BSPPM O/R - M16 X 2, Test
28	WA103606	3	Plug	1/4" BSPPM, Internal hex
29	WA102853	6	Fitting	1/4" BSPPM - 9/16" JICM, For seal, check key 48
30	WA101777	1	Threaded Nipple	1/2" BSPPM - 3/4" JICM
31	WA103290	2	Threaded Nipple	1/2" BSPPM - 13/16" ORFSM
32	WA102849	2	Plug	1/8" BSPPM, Internal hex
33	WA101361	6	Threaded Nipple	1/4" BSPPM - 7/16" JICM
34	WA102097	3	Sealing Washer	1/8" Dowty (-02)
35	WA101140	1	Sealing Washer	1/4" Dowty (04)
36	WA101547	3	Sealing Washer	1/2" Dowty (-08)
37	WA100477	3	Elbow Fitting	7/16" JIC X 7/16" JIC 90 degree
38	WA130985	1	Fitting	7/16" JICF X 7/16" JICM X 1/8"BSPF , Test point
39	WA102097	1	Sealing Washer	1/8" Dowty (-02)
40	WA100951	1	Test Device	1/8" BSPPM O/R - M16 X 2, Test
41	WA131139	1	Pressure Relief Valve	-
42	WA103458	1	Fitting	1/8" BSPP X 7/16" JIC
43	WA130985	1	Fitting	-
44	WA100951	1	Test Device	1/8" BSPPM, Test point
45	WA102097	1	Sealing Washer	1/8" Dowty (-02)
46	WA100477	1	Elbow Fitting	7/16" JICM X 7/16" JICF S/N
47	WA119458	3	Sealing Washer	1/4" DIN 3869
48	WA101140	6	Sealing Washer	1/4" Dowty (04)
48	WA129372	6	Seal	OD 11.1 X 2.4 mm, O-ring V-04
