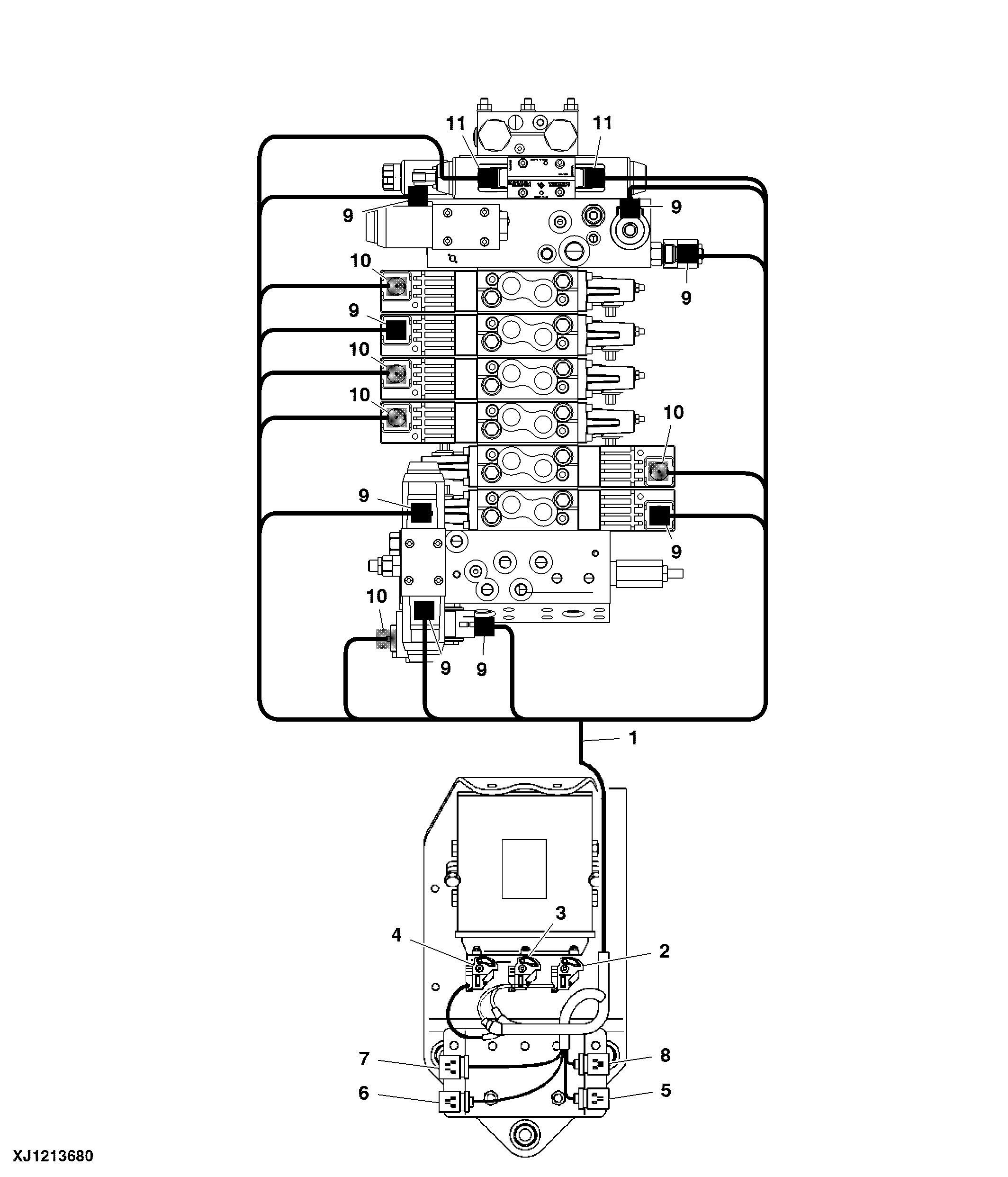

Electrical Connector TR100 Controller (002000 - 002319)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA122917	1	Wiring Harness	-
2	57M10612	1	Elec. Connector Housing	32 Way Molex Plug Red
2	57M10604	1	Elec. Connector Housing	Small Cap J1
2	57M10334	1	Elec. Connector Cavity Plug	Blanking Plug 1.5 mm Orange
2	57M10333	1	Elec. Connector Cavity Plug	Blanking Plug 0.6 mm White
2	57M10330	24	Elec. Connector Terminal	0.635mm, Socket
3	57M10615	1	Elec. Connector Housing	48 Way Molex Plug
3	57M10613	1	Elec. Connector Housing	Large Cap J2
3	57M10334	1	Elec. Connector Cavity Plug	Blanking Plug 1.5 mm Orange
3	57M10333	1	Elec. Connector Cavity Plug	Blanking Plug 0.6 mm White
3	57M10330	24	Elec. Connector Terminal	0.635mm, Socket
4	57M10333	1	Elec. Connector Cavity Plug	Blanking Plug 0.6 mm White
4	57M10330	1	Elec. Connector Terminal	0.635mm, Socket
4	57M10334	1	Elec. Connector Cavity Plug	Blanking Plug 1.5 mm Orange
4	57M10604	1	Elec. Connector Housing	Small Cap J3
4	57M10606	1	Elec. Connector Housing	32 way Molex Plug
5	57M9786	1	Elec. Connector Housing	6 Way Ampseal Plug
5	57M8263	6	Elec. Connector Terminal	16-18 AWG Socket Gold
5	57M9814	1	Elec. Connector Cavity Plug	Blanking Plug Ampseal
6	57M9817	1	Elec. Connector Housing	4 Way Ampseal Plug
6	57M8263	4	Elec. Connector Terminal	16-18 AWG Socket Gold
6	57M9814	1	Elec. Connector Cavity Plug	Blanking Plug Ampseal
7	57M9800	1	Elec. Connector Housing	12 Way Ampseal Plug
7	57M8263	36	Elec. Connector Terminal	16-18 AWG Socket Gold
7	57M9814	1	Elec. Connector Cavity Plug	Blanking Plug Ampseal
8	57M9789	1	Elec. Connector Housing	6 Way Ampseal Receptacle
9	57M10890	8	Elec. Connector Housing	Plug Solenoid Hershman Black
10	57M10891	5	Elec. Connector Housing	Plug Solenoid Hershman Grey
11	57M10890	2	Elec. Connector Housing	Plug Solenoid Hershman Black
