Rotator, Continuous Rotation Through Hosing

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2029	18	Cap Screw	1/2" X 2-1/4"
2	19H2433	2	Cap Screw	1/2" X 2"
3	F351025	2	Lock Nut	G8 1/2
4	WA100044	20	Washer	0.500 X OD -M26 X 2, Hardened
5	WA100184	1	Lubrication Fitting	-
6	WA100221	4	Bolt	G8 1/2" X 1-1/4"
7	WA102555	4	Washer	1/2", Disc lock
8	WA107760	1	Ring Gear	INCLUDES WA111174
9	WA109066	2	Guard	-
10	WA109513	1	Bearing	-
11	WA109638	1	Pinion	-
12	WA131612	1	Hydraulic Motor	Continuous rotation 240cc
12	WA131649	1	Seal Kit	-
13	WA116869	2	Fitting	13/16" ORFSM - 7/8" UNOM BNUT 90 elbow
14	WA134070	1	Spacer	-
15	WA134031	1	Support	Rotator drive motor assembly
16	WA121409	4	Washer	-
17	WA121757	1	Rotator	Through hosing
18	WA121966	1	Guard	Rotator guard USE WITH WA121757
19	WA122049	1	Guard	Rotator front
20	WA123106	2	Bushing	USE WITH WA121757
21	WA111174	2	Sealing Ring	Seal strip fitted top and bottom
22	WA123820	4	Bolt	1/2" X 2" UNC
23	WA100674	2	O-Ring	AS568A 014N90 12.42 mm X 1.78 mm
24	WA134502	2	O-Ring	19.2ID X 2.5t
25	WA133138	1	Spacer	Only for stump treatment rotary manifold (Optional)
26	WA116870	2	Hydraulic Component	13/16" ORFSF

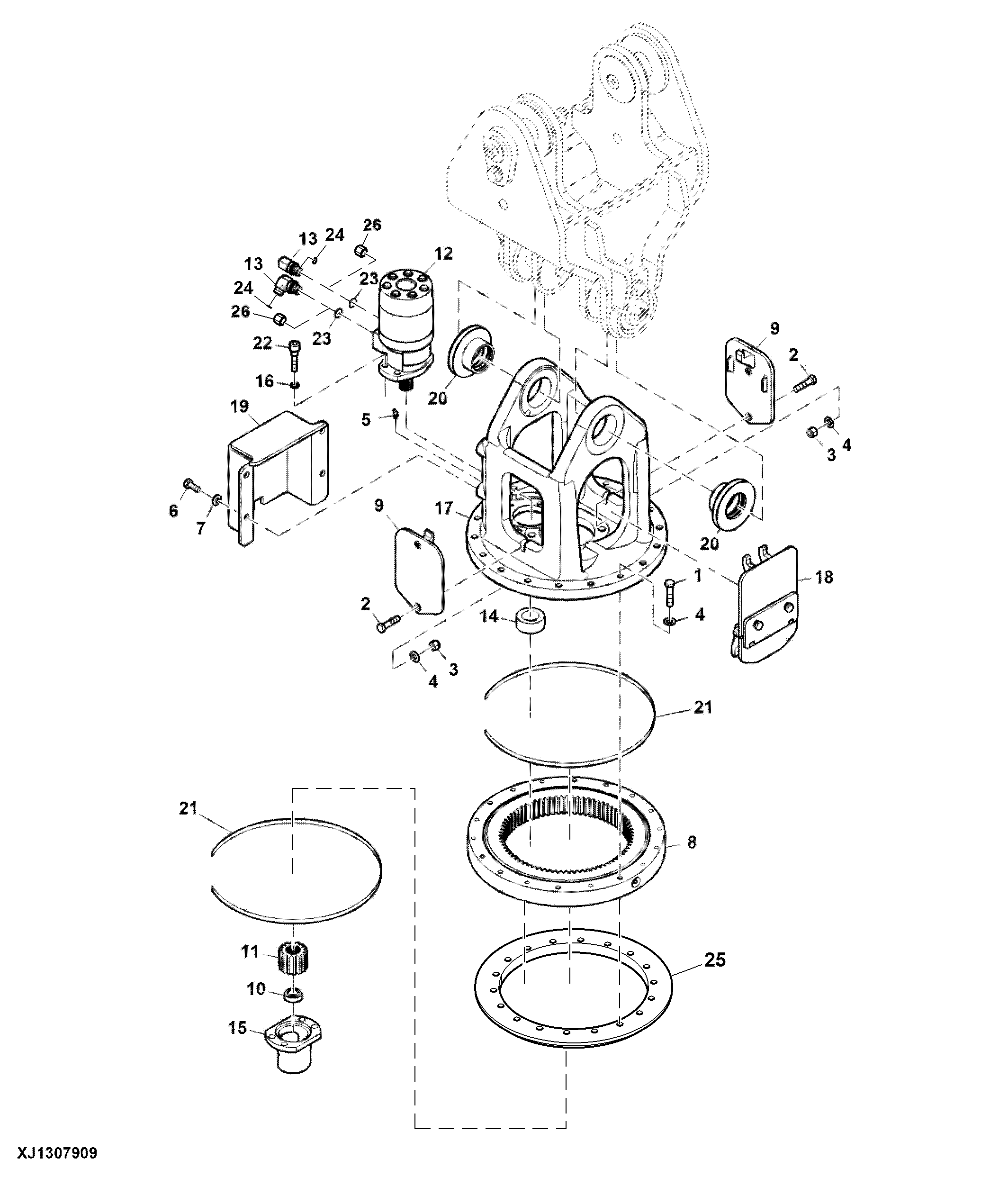

Rotator, Continuous Rotation Through Hosing
