Открытый узел

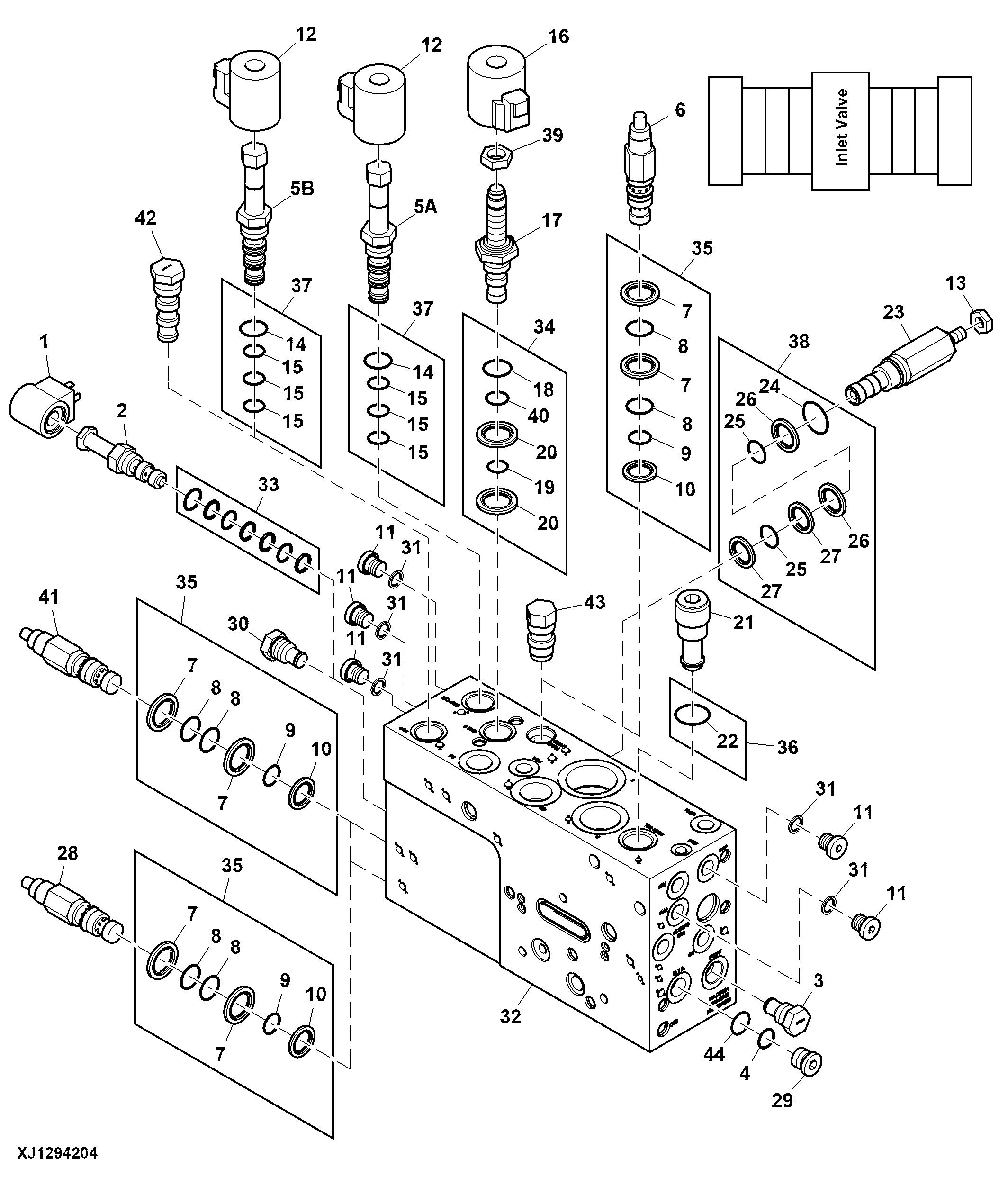

Valve Manifold, H16 ( - 000085)

Valve Manifold, H16 ( - 000085)

Valve Manifold, H16 ( - 000085)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Valve Manifold, H16 ( - 000085)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA123551	1	Electrical Coil	SV08 Deutsch Coil
2	WA106193	1	Valve	Pulse oiler solenoid valve
3	WA107660	1	Plug	Without Tilt Lock
4	WA129373	1	Seal	O-ring, V-06, OD 14.3 X 2.4 mm
5	WA115090	2	Solenoid Valve	(a) Measuring arm cylinder solenoid valve, (b) Main saw cylinder solenoid valve
6	F351112	1	Relief Valve	Measuring arm pressure control valve
7	-	6	Part 7	Red,Solid
8	-	4	Part 8	-
9	-	3	Part 9	-
10	-	3	Part 10	Red,Solid
11	WA103606	5	Plug	908 BG 1/4-8.8, Without Measuring Arm
12	WA112531	2	Solenoid Valve Coil	With Measuring Arm
13	WA134706	1	Nut	-
14	-	1	Part 14	-
15	-	1	Part 15	O-Ring With Built In Back-Up Ring
16	WA113152	1	Solenoid Valve Coil	-
17	WA105882	1	Valve	Main saw bar proportional pressure control valve
18	-	1	Part 18	-
19	-	1	Part 19	-
20	-	2	Part 20	White,Split
21	WA112533	1	Relief Valve	Main supply pressure relief valve
22	-	1	Part 22	-
23	WA130442	1	Hydraulic Pressure Valve	Main saw, top saw oiler — main saw, measuring cylinder pressure reducing control valve
24	-	1	Part 24	-
25	-	2	Part 25	-
26	-	2	Part 26	Yellow,Solid
27	-	2	Part 27	Red,Solid
28	WA117360	1	Relief Valve	Pilot pressure control valve (PILOT). Also main saw tensioning control valve (TENSION), manual tension only
29	WA125616	1	Plug	3/8" BSPP , Internal Hex
30	WA101447	1	Pipe Plug	SC100 Without Topping Saw
30	WA107660	1	Plug	Without Tilt Lock
31	WA101140	5	Sealing Washer	1/4" Dowty (04)
32	WA127834	1	Manifold	-
33	WA110243	1	Seal Kit	-
34	WA116613	1	Seal Kit	-
35	WA116614	3	Seal Kit	-
36	AT350215	1	O-Ring Kit	-
37	F435664	3	Seal Kit	-
38	-	1	Part 39	-
39	WA130375	1	Nut	-
40	-	1	Part 41	Black,Solid
41	WA117360	1	Relief Valve	Main saw tensioning control valve (TENSION), auto-tension only
42	WA117307	1	Plug	Without Measuring Arm
43	F351113	1	Plug	Without Measuring Arm
44	WA129362	1	Sealing Washer	3/8" Retaining Ring, OD 23.9 X 1.6 mm
