Supercut 100 Saw Assembly (Main Housing)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

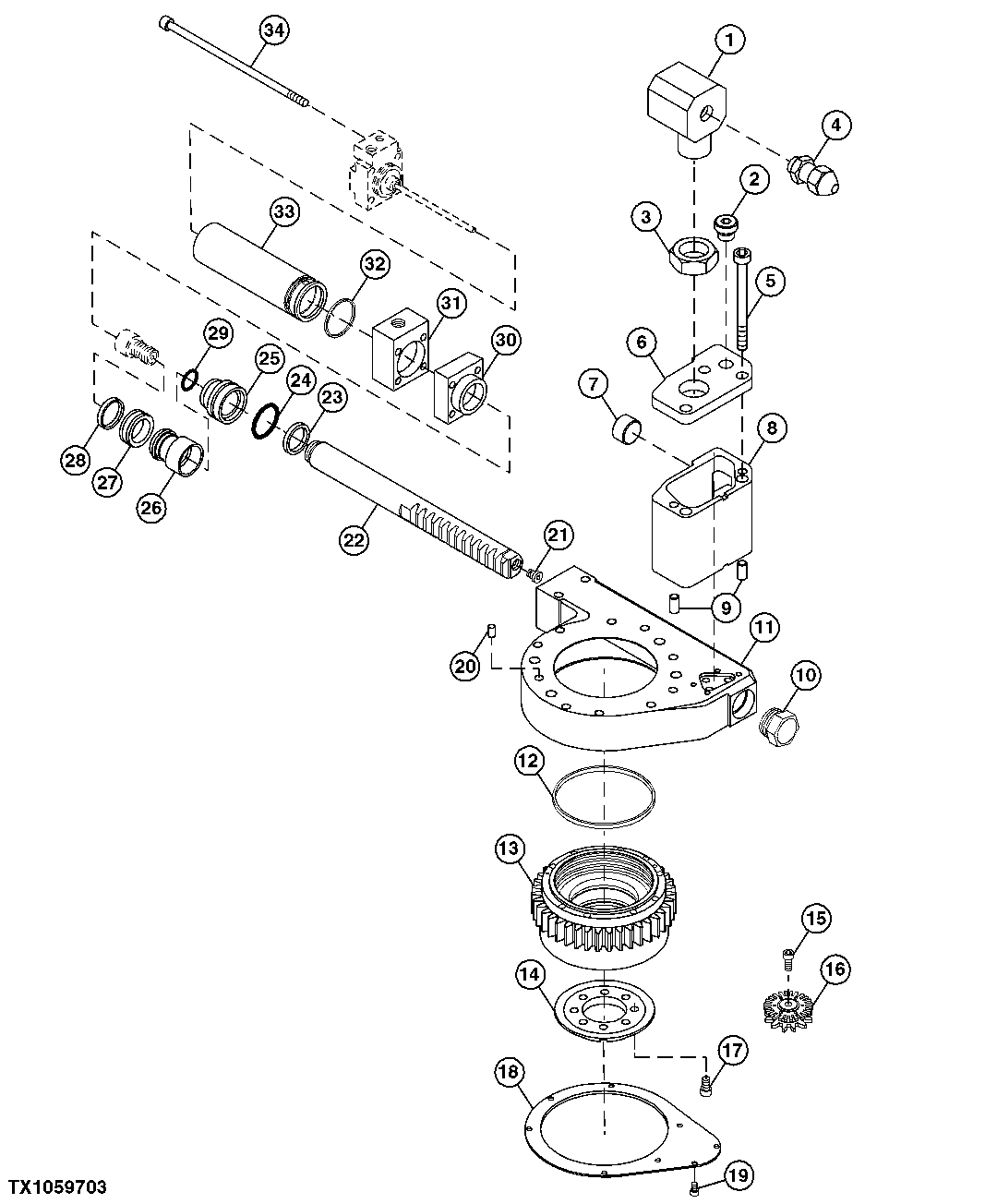

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F063884	1	Elbow Fitting	-
2	F022700	1	Plug	M10 X 1
3	WA108472	1	Nut	BSPP NO. 8
4	WA110266	1	Fitting	M12 X 1.5, (GLAND)
5	F018811	3	SCREW	M6 X 90 MM (12.9)
6	F057755	1	COVER	-
7	F022641	2	Plug	BSPT 3/8"
8	F067194	1	Housing	-
9	F056039	2	PIN	CP 5 X 6
10	F056031	1	PLUG	95°, FEED OUT
11	F056034	1	Bracket	SAW STAND
12	F056033	3	SEAL	SWIVEL KIT
13	F056032	1	Gear	DRIVE (WITH BEARING)
14	F061582	1	Washer	-
15	F057427	1	Screw	MLC6S 06 X 12 MM (12.9), (SOCKET HEAD)
16	F434977	1	WHEEL	(TimberRite™ Controller) 12Z/12
17	F056048	8	Screw	M8 X 14 MM (12.9), (SOCKET HEAD)
18	F057433	1	WASHER	(LEFT HAND)
19	F056049	9	Cap Screw	M6 X 08 MM (12.9), (SOCKET HEAD)
20	F026743	2	Spring Pin	8 X 14
21	F011293	1	PLUG	VSTI 1/8"
22	F056009	1	Rod	PISTON (95&deg; FEED OUT)
23	F056012	1	Seal	PISTON ROD (KIT)
24	F056045	1	O-Ring	40.6 X 2.4 MM, Kit
25	F056011	1	Cap	-
26	F056016	1	Piston	-
27	F056013	1	Seal	Kit
28	F056014	1	Ring	GUIDE (KIT)
29	F013913	1	O-RING	21.5 X 2.4 MM, Kit
30	F057431	1	Spacer	ONLY ON 95&deg; FEED OUT
31	F056005	1	Flange	CONTACT
32	F057434	1	Seal	RING (KIT)
33	F056007	1	Hydraulic Cylinder Barrel	40MM, DIAMETER, 95&deg; FEED OUT
34	F056050	4	Screw	M8 X 260 MM (12.9), 95°, FEED OUT (SOCKET HEAD)
