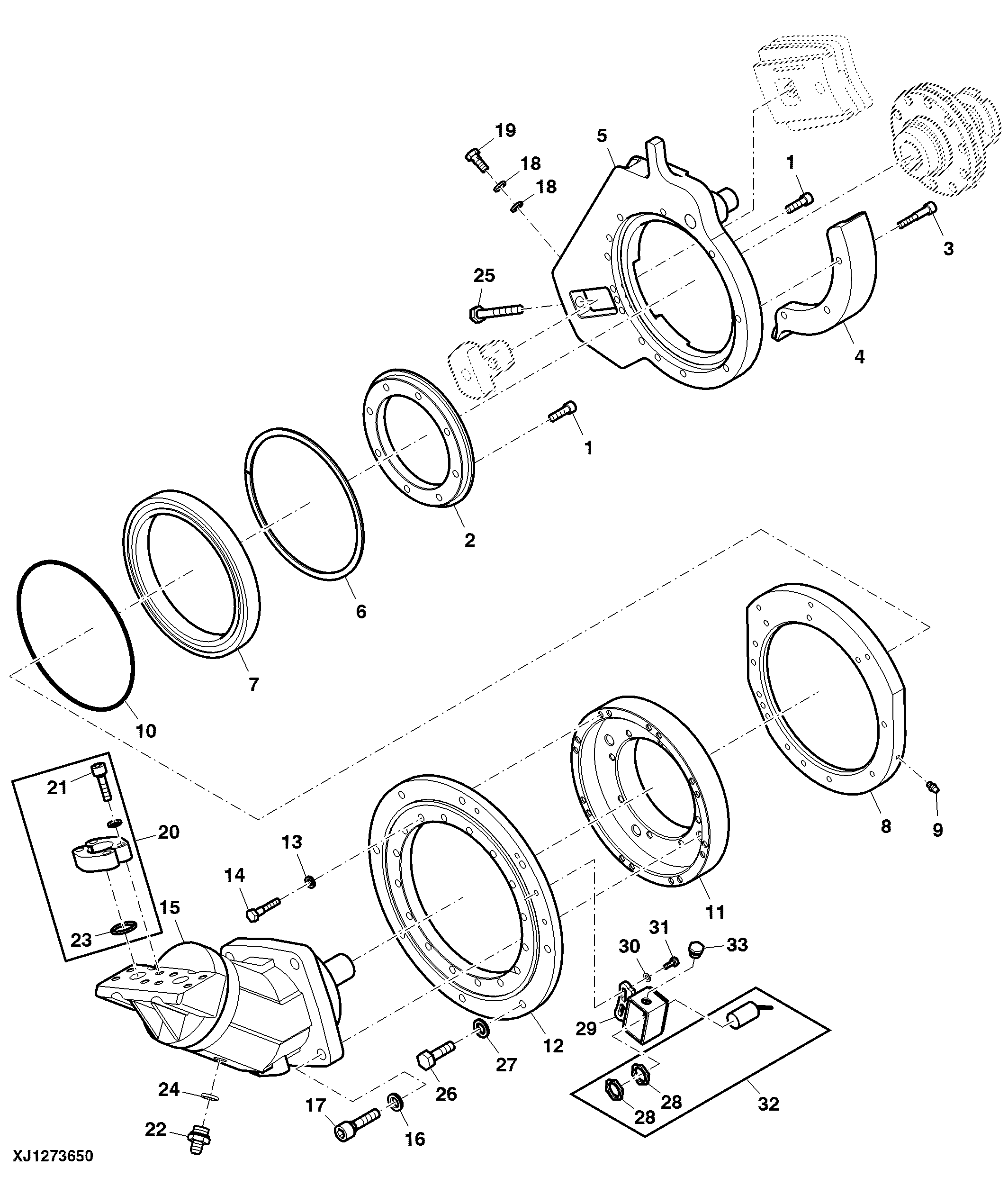

3/4" Main-saw Unit Assembly Without Auto-tension

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA101959	18	Bolt	5/16" UNF X 1" S/CAP
2	WA109147	1	Retainer	-
3	WA108463	3	Bolt	5/16" UNF X 1 3/4" S/CAP
4	WA108441	1	Guard	-
5	WA115658	1	Arm	-
6	F350606	1	Seal	8 X 4 X 600, FELT
7	WA102933	1	Ball Bearing	-
8	WA106125	1	Adapter	-
9	F351031	1	Lubrication Fitting	1/4" UNF, Grease
10	WA100603	1	O-Ring	182 X 2.5 N70
11	WA102872	1	Ring	-
12	WA106146	1	Adapter	-
13	WA100426	8	Lock Washer	5/16", Disc Lock
14	WA102464	8	Bolt	5/16" UNF X 1 1/2" G8
15	WA103169	1	Motor	-
15	WA100772	1	Seal	Shaft Seal
16	WA102555	4	Washer	1/2", Disc Lock ORDER WA121409
16	WA121409	4	Washer	1/2"
17	WA103072	4	Bolt	1/2" UNF X 1 1/2", ORDER WA108273
17	WA108273	4	Bolt	1/2" UNF X 1 1/2"
18	WA102097	2	Sealing Washer	1/8" Dowty (-02)
19	F351059	1	Fitting	Banjo
20	WA108477	4	Flange	-
21	-	1	Part 24	-
22	WA101121	1	Fitting	18 MM X 9/16 JIC
23	WA102627	1	O-Ring	-
24	F350806	2	Sealing Washer	M18, Dowty
25	WA103505	1	Bolt	-
26	WA100299	8	Bolt	7/16" X 1 1/4" UNC
27	WA102398	8	Washer	7/6", Disc Lock
28	-	2	Part 31	-
29	WA106149	1	Support	-
30	WA102525	2	Washer	5/16", Hardened ORDER F042820
30	F042820	2	WASHER	-
31	WA101342	2	Bolt	5/16" UNC X 3/4" G8, ORDER WA102302
31	WA102302	2	Screw	-
32	WA120501	1	Proximity Sensor	NLA; ORDER <service-part>F351139</service-part> PNP, TimberRite™ Controller
32	F351139	1	Proximity Sensor	PNP, TimberRite™, Logrite and H16 Controller
32	WA101136	1	Proximity Sensor	NPN, TR100 Controller
33	F351076	1	Pipe Plug	3/8" BSPP, Dust

3/4" Main-saw Unit Assembly Without Auto-tension
