Открытый узел

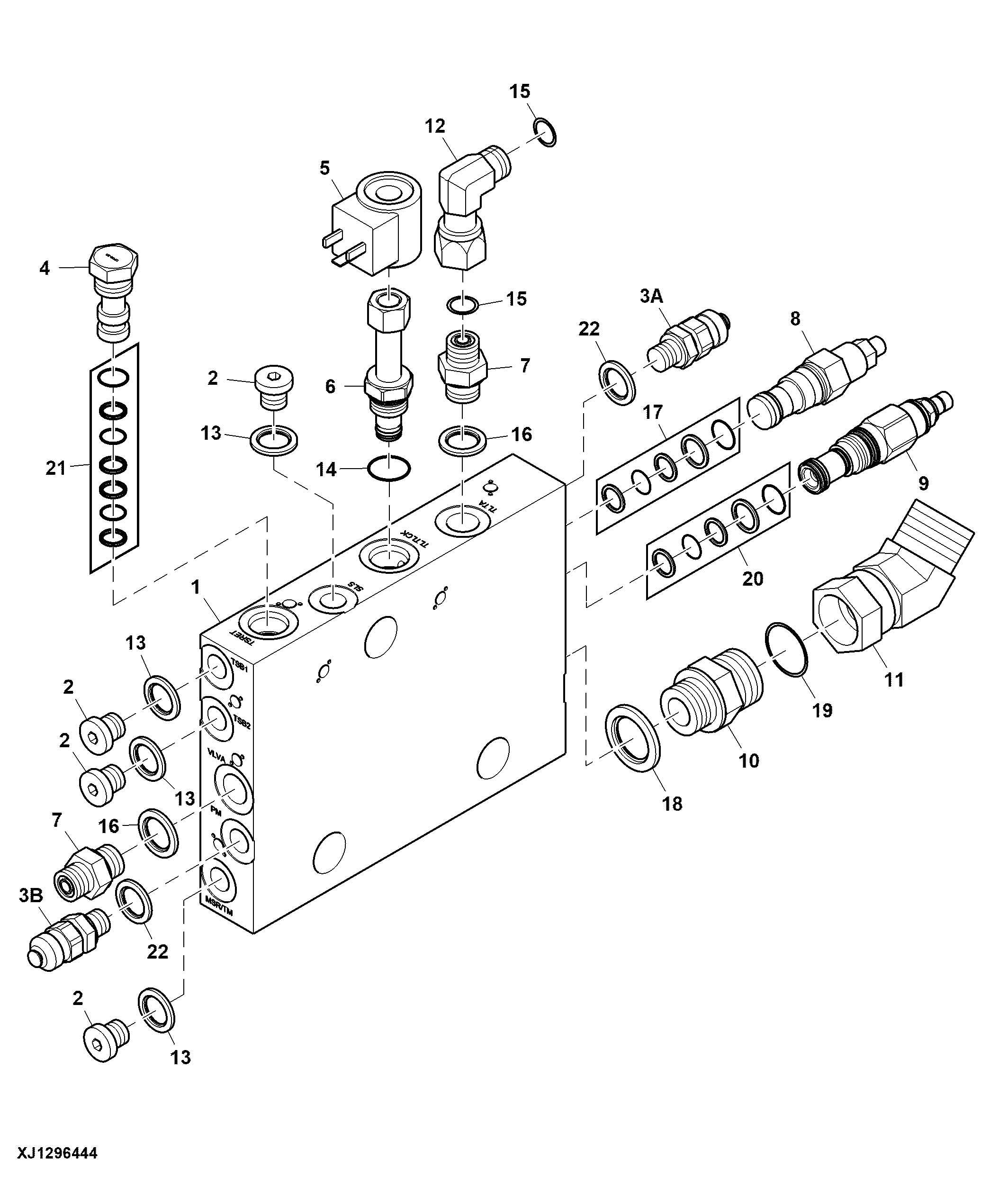

PVG100 Manifold Non Top-saw (000472 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA131656	1	Manifold	-
2	WA103606	4	Plug	-
3	WA101135	2	Fitting	1/4" BSPF, test Point, (a) Tilt lock pressure (TPTLT), (b) Main pressure (PM)
4	WA101447	1	Pipe Plug	-
5	WA101415	1	Solenoid Valve Coil	-
6	WA131261	1	Solenoid Valve	Tilt lock one-way valve (TLTLCK)
7	WA115767	2	Adapter	3/8" BSPPM - 11/16" ORFSM
8	F351110	1	Pressure Relief Valve	Float control valve (FCFLT)
9	F351111	1	Pressure Relief Valve	Tilt lock pressure relief valve (TLTREL)
10	WA103100	1	Adapter Fitting	3/4" BSPPM X 1-3/16" ORFSM
11	WA116999	1	Elbow Fitting	1-3/16" ORFSM 45 Degree
12	WA115768	1	Elbow Fitting	11/16" ORFSM - 11/16" ORFSF 90 Degree
13	WA101140	4	Sealing Washer	1/4" Dowty (-04)
14	WA116615	1	Seal Kit	-
15	WA118952	2	O-Ring	731-012N90-ORFS ID 0.364" (9.3 mm) X W 0.07" (1.78 mm) (-06)
16	WA103517	2	Sealing Washer	3/8" Dowty (-06)
17	WA103057	1	Seal Kit	Includes 2 o-rings and 3 back-up rings
18	WA102850	1	Sealing Washer	3/4" Dowty (-12)
19	WA102979	1	O-Ring	731-018N90-ORFS ID 0.739" (18.8 mm) X W 0.07" (1.78 mm) (-12)
20	WA110327	1	Seal Kit	Includes 2 o-rings and 3 back-up rings
21	WA110243	1	Seal Kit	-
22	WA119458	2	Sealing Washer	1/4" DIN 3869

PVG100 Manifold Non Top-saw (000472 - )
