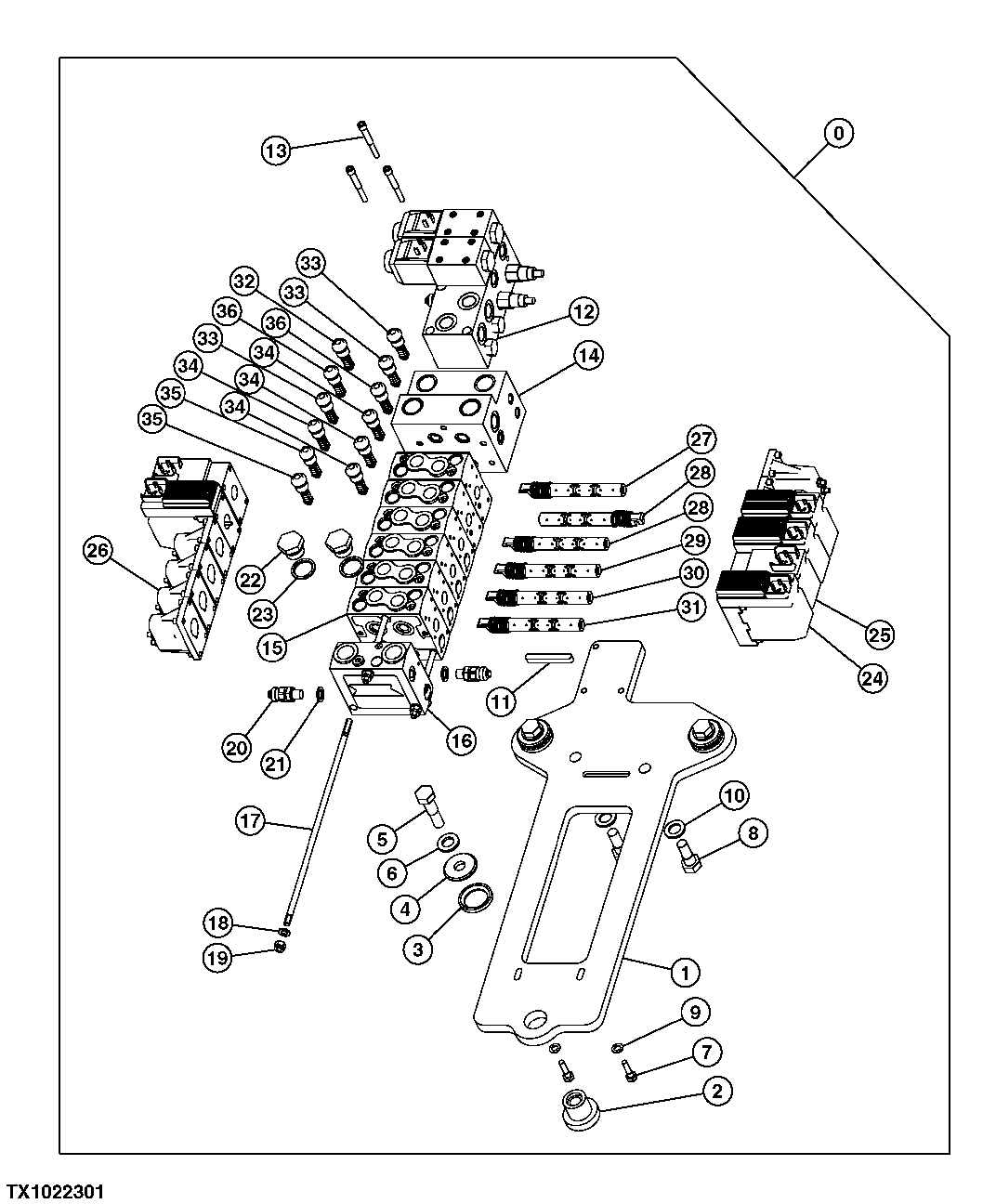

DEBARKING CONTROL VALVE (SERIAL NUMBER WA616XX00218- ) [E19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	WA106993	1	VALVE	STANDARD
1	WA100217	1	BASE	-
2	F350523	3	Isolator	DAMPER
3	F350526	3	Washer	-
4	F350525	3	Washer	-
5	WA101022	3	Bolt	M16 X 60, CL10.9
6	WA102654	3	Lock Washer	5/8" DISC LOCK
7	WA102456	2	Bolt	M8 X 30 CL10.9
8	WA100820	2	Bolt	M16 X 40 CL10.9
9	WA100426	2	Lock Washer	5/16" DISC LOCK
10	WA102654	2	Lock Washer	5/8" DISC LOCK
11	F351039	1	Shaft Key	-
12	F351092	1	MANIFOLD	-
13	WA100860	3	BOLT	UNC 5/16" X 3" S/CAP
14	WA102515	1	MANIFOLD	-
14	WA102947	1	Plug	-
15	WA100725	6	Control Valve	-
16	WA102709	1	Valve	PUMP
17	WA103091	3	ROD	TIE
18	607-09-08	3	WASHER	M8 HARDENED
19	WA101038	3	Lock Nut	M8
20	WA101135	2	Fitting	1/4" BSPP TEST POINT
21	WA101140	2	Sealing Washer	1/4" BSPP DOWTY WASHER
22	F351078	2	Pipe Plug	3/4" BSPP
23	WA102850	2	Sealing Washer	3/4" DOWTY WASHER
24	WA107548	4	Actuator	PROPORTIONAL
25	WA103186	2	Actuator	ON/OFF
26	WA100523	6	ACTUATOR	MANUAL
27	WA100324	1	Valve Spool	-
28	WA107428	2	Valve Spool	-
29	WA101794	1	Valve Spool	-
30	WA100112	1	Valve Spool	-
31	WA101931	1	Valve Spool	-
32	WA102568	1	RELIEF VALVE	050 BAR
33	WA103151	3	Pressure Relief Valve	265 BAR
34	WA102842	4	Relief Valve	150 BAR
35	WA100418	2	Relief Valve	210 BAR
36	WA103499	2	Pressure Relief Valve	320 BAR
37	WA102090	1	Seal Kit	ACTUATOR MODULE (NOT ILLUSTRATED)
38	WA101652	1	Seal Kit	SOLENOID MODULE (NOT ILLUSTRATED)
39	WA108478	1	Seal Kit	SEAL, 7 BANK MODULE (NOT ILLUSTRATED)
40	WA118717	1	Seal Kit	(USE WITH WA107548 OR WA103186) (CONTAINS 9 O-RINGS)(NOT ILLUSTRATED)

DEBARKING CONTROL VALVE (SERIAL NUMBER WA616XX00218- ) [E19]

Нет текстового описания
