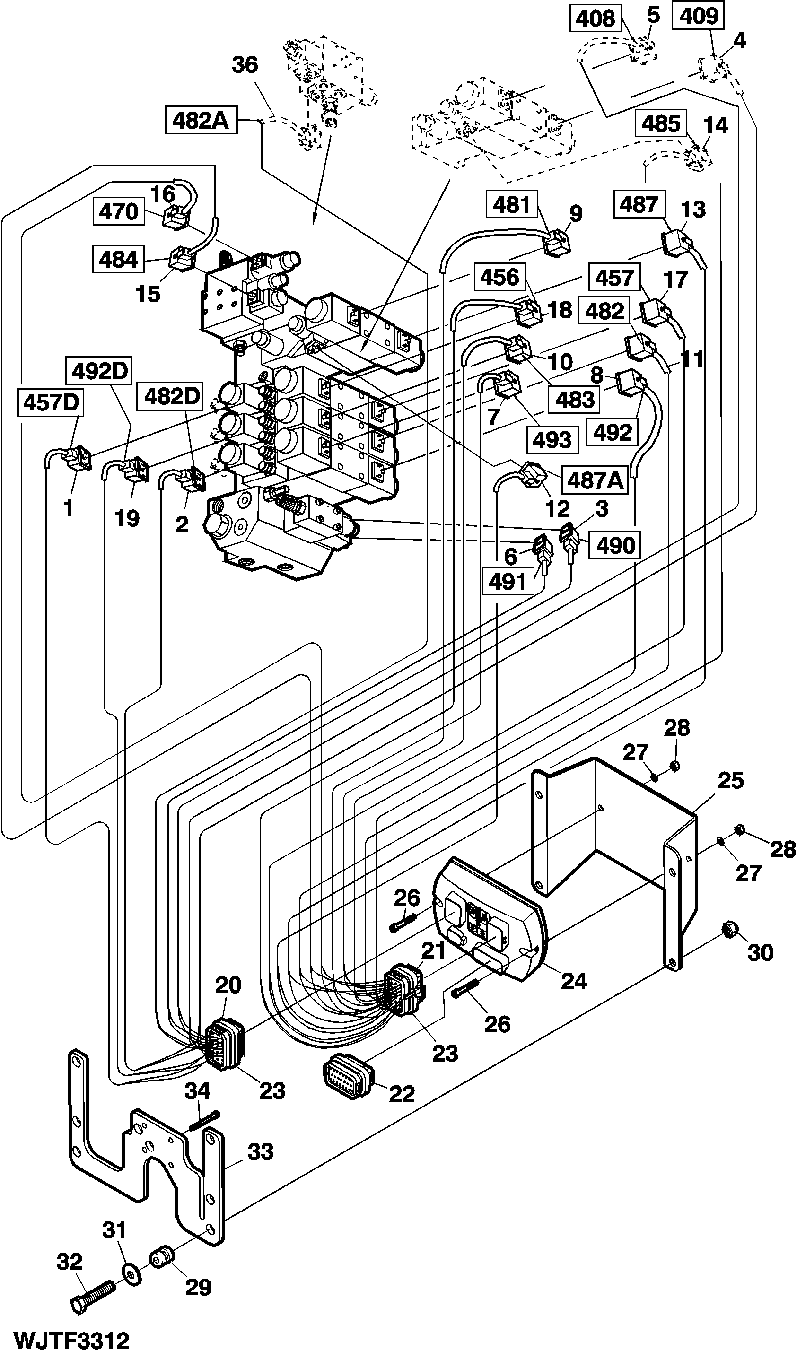

Wiring Harness (TM10, 3G+) option

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	F644223	1	WIRING HARNESS	Incl. Keys 7-18, 21, 23 (Sub for F634302)
0	F644224	1	Wiring Harness	Incl. Keys 1-6, 20, 23, (Sub for F634301)
1	F071043	1	Wiring Harness	L= 630 mm, Y457D (Sub for F063049)
2	F071043	1	Wiring Harness	L= 720 mm, Y482D (Sub for F063050)
3	F071084	1	WIRING HARNESS	L= 300 mm, Y490 (Sub for F062851)
4	F071043	1	Wiring Harness	L= 450 mm, Y409 (Sub for F063051)
5	F071043	1	Wiring Harness	L= 450 mm, Y408 (Sub for F063052)
6	F071084	1	WIRING HARNESS	L= 300 mm, Y491 (Sub for F062854)
7	F071043	1	Wiring Harness	L= 260 mm, Y493 (Sub for F063053)
8	F071043	1	Wiring Harness	L= 320 mm, Y492 (Sub for F063054)
9	F071043	1	Wiring Harness	L= 460 mm, Y481 (Sub for F063055)
10	F071043	1	Wiring Harness	L= 310 mm, Y483 (Sub for F063056)
11	F071043	1	Wiring Harness	L= 370 mm, Y482 (Sub for F063057)
12	F071043	1	Wiring Harness	L= 550 mm, Y487A (Sub for F063058)
13	F071043	1	Wiring Harness	L= 520 mm, Y487 (Sub for F063059)
14	F071043	1	Wiring Harness	L= 620 mm, Y485 (Sub for F063060)
15	F071043	1	Wiring Harness	L= 670 mm, Y484 (Sub for F06306)
16	F071043	1	Wiring Harness	L= 800 mm, Y470 (Sub for F064703)
17	F071043	1	Wiring Harness	L= 420 mm, Y457 (Sub for F063063)
18	F071043	1	Wiring Harness	L= 360 mm, Y456 (Sub for F063064)
19	F063065	1	CABLE	-
20	F054940	1	Electrical Connector Assy	-
21	F054941	1	CONNECTOR	-
22	F053324	1	Electrical Connector Assy	-
23	F053303	14	Elec. Connector Terminal	(For connector XM1)
23	F053303	23	Elec. Connector Terminal	(For connector XM2)
24	F056541	1	HARVESTER HEAD MODULE	-
25	F062866	1	BRACKET	-
26	F003404	2	SCREW	-
27	F003337	2	WASHER	-
28	14M7528	2	Lock Nut	M6, SUB FOR F003586
29	F039343	4	GROMMET	-
30	F003587	4	LOCK NUT	-
31	F003338	4	WASHER	-
32	F003526	4	SCREW	-
33	F062865	1	BRACKET	-
35	F064703	1	Wiring Harness	-
36	F065232	1	WIRING HARNESS	L= 1000 mm
..	F064671	1	WIRING HARNESS	(With MTH) Option
34A	F010706	4	SCREW	-
34B	19M8674	4	CAP SCREW	M5 X 85, Option, SuperCut™
