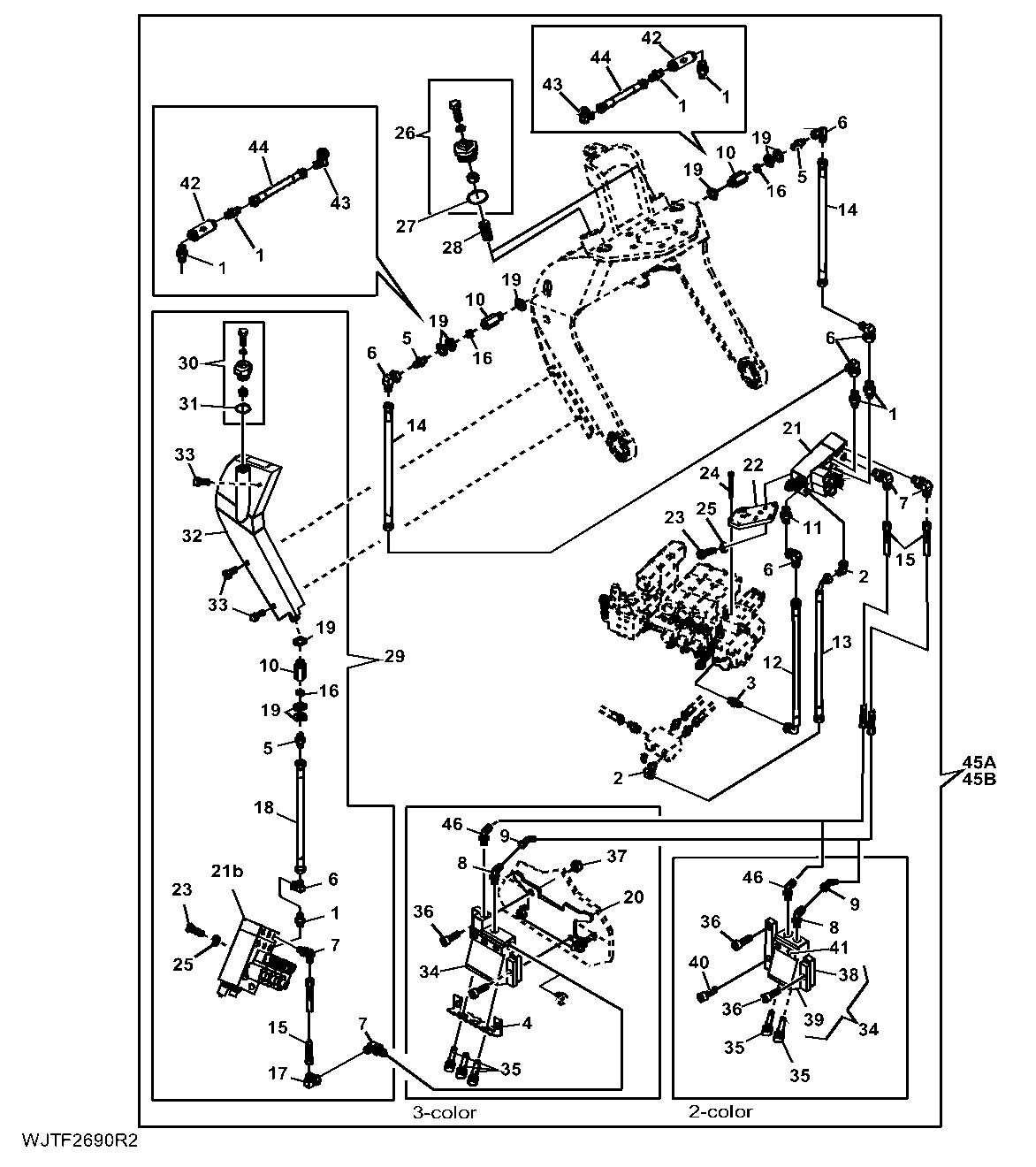

Paint Marking Device, (SuperMark™, SC saw unit) Optional

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F005057	7	Fitting	-
1	F005057	3	Fitting	-
2	F024599	2	Elbow Fitting	-
3	F005056	1	Fitting	-
4	F672437	1	Shield	OPTION
5	X6-6F4OMXS	3	Adapter Fitting	-
6	F022417	6	Elbow Fitting	-
7	F011057	5	ELBOW NIPPLE	-
8	F019105	1	ELBOW NIPPLE	-
8	X4-4F4OMXS	1	Adapter Fitting	-
9	F059241	1	Fitting	-
10	F056974	3	VALVE	-
11	F062272	1	ORIFICE	-
12	F054371	1	HOSE-ASSY	-
13	F057067	1	Hydraulic Hose	-
14	F054362	2	Hydraulic Hose	-
15	F722336	3	Hydraulic Hose	SUB FOR F061518
16	F058985	3	FILTER	-
17	F040596	4	ELBOW NIPPLE	-
18	F025142	1	Hydraulic Hose	-
19	F005166	9	SEAL RING	-
20	F061951	1	PLATE	(For SC-Saw Unit) (Welding part)
20	F638320	1	Plate	(For Om-Saw Unit) (Welding part)
22	F063952	1	Bracket	-
23	19M9681	3	Cap Screw	M8 X 16
24	19M8674	4	CAP SCREW	M5 X 85
25	24M7509	3	Washer	8.400 X 16 X 1.600 mm
26	F056977	2	PLUG	-
27	F003291	2	O-RING	-
28	F063631	2	Strainer	-
29	F066539	1	Paint Marking Unit	-
30	F021661	1	PLUG	-
31	F017167	1	O-Ring	-
32	F636831	1	Tank	-
33	19M7386	3	Cap Screw	M12 X 20
34	F059114	1	NOZZLE	(3-Colors)
34	F066923	1	Nozzle	(2-Colors)
35	F059115	3	NOZZLE	(3-Colors)
35	F059115	2	NOZZLE	(2-Colors)
36	19M8448	2	Screw	M12 X 35
37	F003590	2	LOCK NUT	-
38	F061946	1	PLATE	(2-Colors)
39	F066922	1	Nozzle Holder	(2-Colors)
40	F061948	1	CAP SCREW	-
41	F011293	2	PLUG	-
42	F067379	2	Filter	-
43	F024402	2	Elbow Fitting	-
44	F683307	2	Hydraulic Hose	SUB FOR F055112
46	F019105	1	ELBOW NIPPLE	SUB FOR X4-4F4OMXS
21A	F063506	1	Pump	-
21B	F061483	1	PROCESS PUMP	-
45A	F632045	1	Paint Marking Unit	(2-Colors)
45B	-	1	Part 52	(3-Colors)

Paint Marking Device, (SuperMark™, SC saw unit) Optional
