Hydraulic Mounting, Rotator and Rotator With MTH, Option (000501 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	F652969	1	Hose Kit	(Used With Indexator) INCLUDES ITEMS 2-4, 6, 7B, MTH
0	F652972	1	Hose Kit	(Used With Sampo) INCLUDES ITEMS 2-4, 7A, 12
0	F652970	1	Hose Kit	(Used With Sampo) INCLUDES ITEMS 2-4, 7A, 12, MTH
0	F652971	1	Hose Kit	(Used With Indexator) INCLUDES ITEMS 2-6, 7A
2	F071442	2	Fitting	-
3	F033375	3	CONNECTION	-
4	F005166	3	SEAL RING	SUB FOR F005167
5	F022417	2	Elbow Fitting	(Used With Indexator) (Without MTH)
6	F028840	2	NIPPLE	(Used With Indexator) R3/4
6	F005056	2	Fitting	(Used With Indexator) R1/2
7	F065980	2	Hydraulic Hose	(Used With Indexator) L= 1420 mm, Fabricate
8	F012507	2	Fitting	R3/4
8	F005061	2	Fitting	R1/2
9	F024602	2	Fitting	-
10	F032109	2	Hose Guard	-
11	F065845	2	Hydraulic Hose	Fabricate
12	F005056	2	Fitting	(Used With Sampo)
13	F655147	1	Wiring Harness	(Cable Kit for Rotator Valve, (TM300 and HHC), Option)
7A	F024311	2	Hydraulic Hose	(Used Indexator Without MTH) (Used With Sampo and Sampo MTH) L= 2300 mm, SUB FOR F057983, MTH
7B	F044399	2	HOSE-ASSY	(Used With Indexator) 2500 mm, MTH

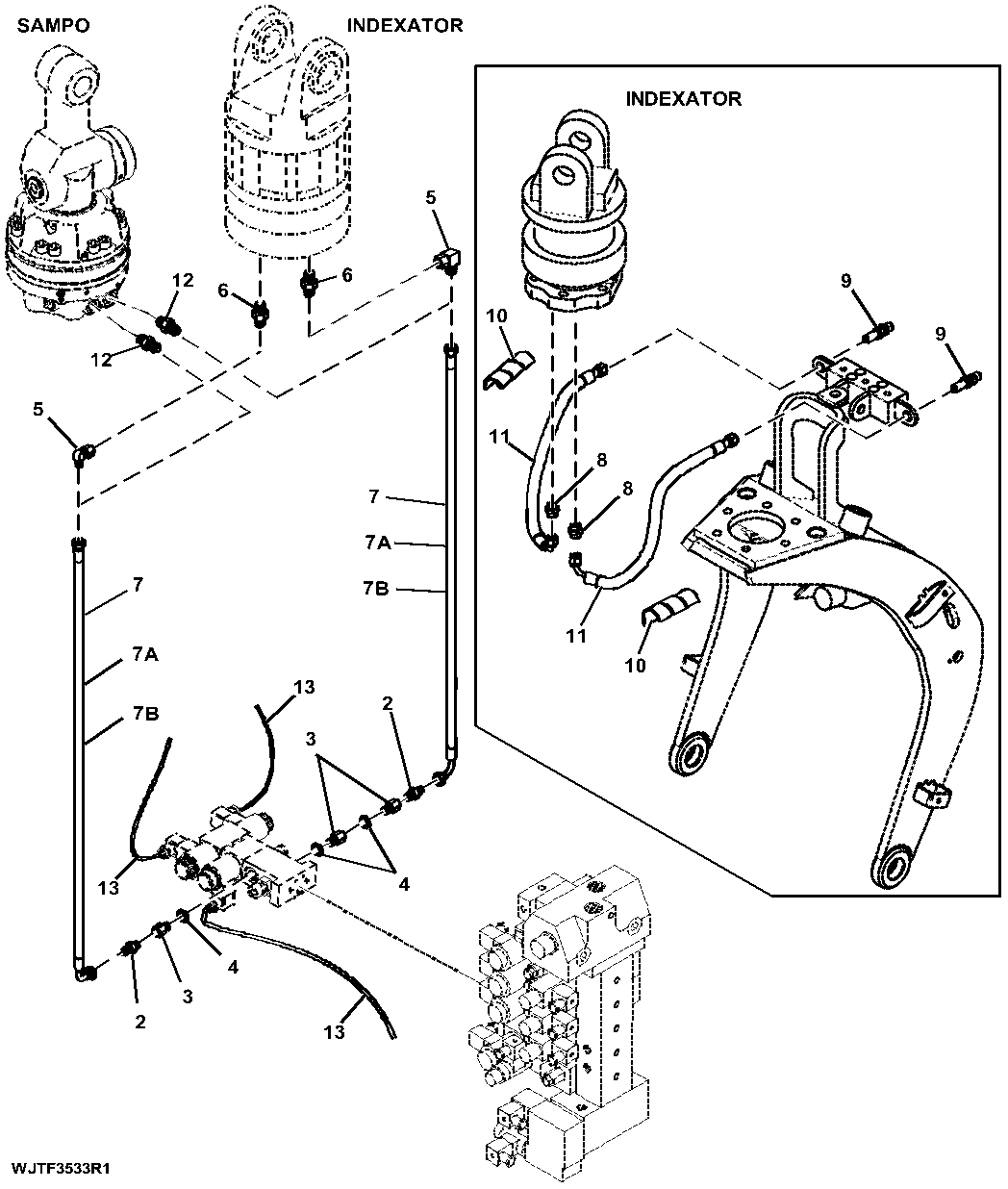

Hydraulic Mounting, Rotator and Rotator With MTH, Option (000501 - )
