Открытый узел

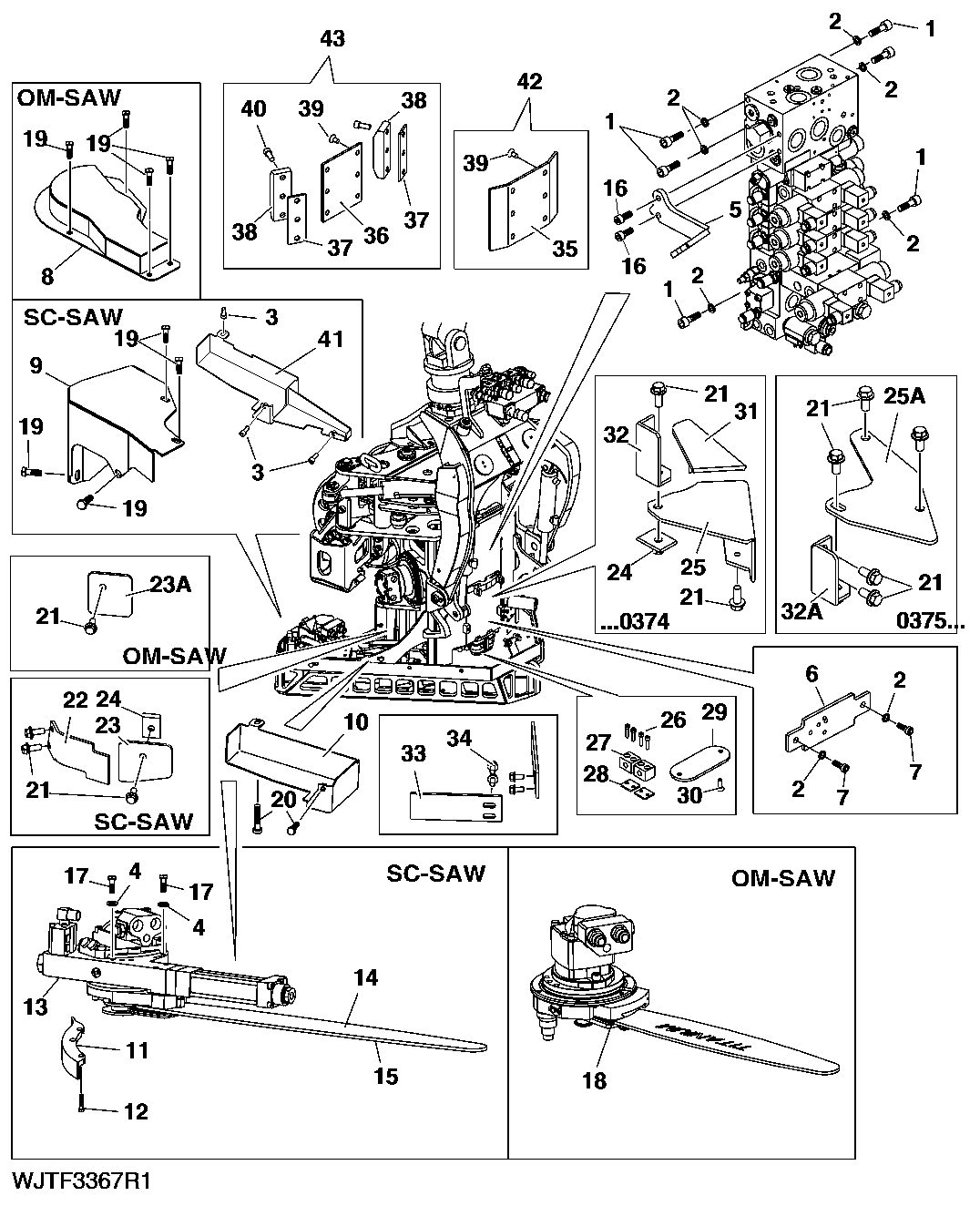

Saw Shields and Fastenings for Valve Stack

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8448	6	Screw	M12 X 35
2	F002805	8	Lock Washer	-
3	19M8440	5	Screw	M10 X 25
4	F005551	10	Lock Washer	-
5	F634142	1	Bracket	-
6	F634127	1	Plate	(For Color Pump)
7	F002912	2	SCREW	-
8	F636217	1	Cover	(For Om-Saw Unit)
9	F636218	1	Cover	(For SC-Saw Unit)
9	F638965	1	Cover	-
10	F635287	1	Cover	(For SC-Saw Unit)
11	F627941	1	Cover	(For SC-Saw Unit)
12	T116311	3	Bolt	M8 X 40
13	F069599	1	Saw Unit	(With 2.5 ml Lubrication Pump)
13	F069953	1	Saw Unit	(With 3.5 ml Lubrication Pump)
14	F076924	1	Guide Bar	(Oregon) (Urea) 67 cm, 15 mm, 2 mm mm, 672HLFL163
14	F066058	1	Guide Bar	(Oregon) (Urea) 82 cm, 15 mm, 2 mm, 822HLFL149
14	F076968	1	Package Of Parts	Use W/ F076966, F076967, F076969
14	F076969	1	Sprocket Kit	Use W/ F076966, F076967
14	F076967	1	Guide Bar	(Replaceable Sprocket Nose) 82.5 cm
14	F076966	1	Guide Bar	(Replaceable Sprocket Nose) 75 cm
14	F070203	1	Guide Bar	(Oregon) 822HSFL149
14	F072045	1	Guide Bar	(Waratah) 82 cm, 15 mm, 2 mm, 822HSFL149
14	F050208	1	SWORD	(Oregon) (Urea) 59 cm, 10 mm, 2 mm
14	F071173	1	GUIDE BAR	(Oregon) 753HLFL114
14	F064646	1	GUIDE BAR	(John Deere) NLA, 753HLFL114
14	F071172	1	GUIDE BAR	(Oregon) 643HLFL104
14	F064644	1	GUIDE BAR	(John Deere) 643HLFL104
14	F060047	1	Guide Bar	(John Deere) 82 cm, 15 mm, 2 mm, 822HSFL149
15	F071856	1	Saw Chain	(97 Links) 2 mm
15	F064023	1	SAW CHAIN	(93 Links) 2 mm
15	F058830	1	Saw Chain	(70 Links) 2 mm
16	F072914	2	Screw	-
17	19M8440	9	Screw	M10 X 25
18	-	1	Part 35	Components on Separate Pages
19	19M9570	4	Screw	M12 X 25
20	-	4	Part 37	-
21	19M9571	6	Screw	M12 X 30
22	F639429	1	Plate	(SuperCut™)
23	F641222	1	Plate	(SuperCut™)
24	F643968	2	Clip	-
25	F643972	1	Shield	-
26	19M9727	4	Screw	M6 X 30
27	F051593	2	Hose Support	-
28	F005182	2	Hose Support	-
29	F644653	1	Plate	-
30	19M9561	2	Screw	M8 X 25
31	F642656	1	Plate	-
32	F642661	1	Bracket	-
33	F643871	2	Plate	-
34	19M9448	4	Screw	M10 X 20
35	F644492	1	Plate	(Option)
36	F643870	1	Plate	-
37	F639551	2	Plate	-
38	F639544	2	Plate	-
39	19M9438	6	Screw	M10 X 20
40	19M9502	6	Screw	M12 X 30
41	F647240	1	Cover	-
42	F645570	1	Shield	INCLUDES ITEMS 39, 35
43	F645567	1	Slide Set	INCLUDES ITEMS 36-40
23A	F644519	1	Plate	(Om)
25A	F644396	1	Shield	-
32A	F644398	1	Bracket	-

Saw Shields and Fastenings for Valve Stack
