Открытый узел

Saw Bar and Chain, SuperCut 100S, H415

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

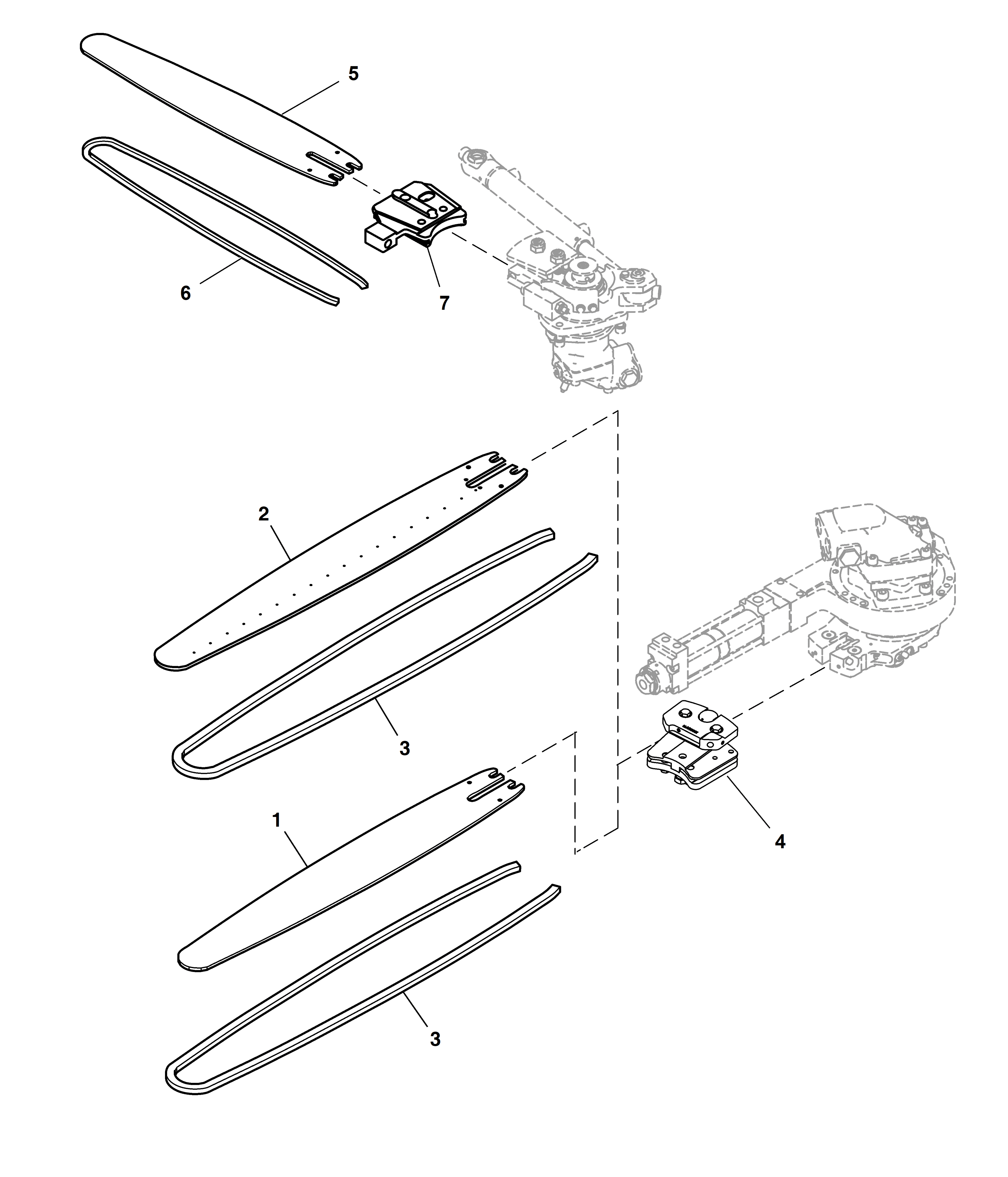

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F697331	1	Guide Bar	LGTH = 82.5 cm, JD Sprocket 11-13
1	F697325	1	Guide Bar	LGTH = 75 cm, JD Sprocket 14-16
1	F702912	1	Guide Bar	LGTH = 90 cm, Waratah Buttress Sprocket 16-18
1	F702911	1	Guide Bar	LGTH = 90 cm, Waratah Buttress Sprocket 12-14
1	F702909	1	Guide Bar	LGTH = 90 cm, Waratah Buttress Sprocket 13-15
1	F702908	1	Guide Bar	LGTH = 82.5 cm, Waratah Sprocket 16-18
1	F702907	1	Guide Bar	LGTH = 82.5 cm, Waratah Sprocket 12-14
1	F702906	1	Guide Bar	LGTH = 82.5 cm, Waratah Sprocket 13-15
1	F702901	1	Guide Bar	LGTH = 75 cm, Waratah Sprocket 13-15
1	F702903	1	Guide Bar	LGTH = 75 cm, Waratah Sprocket 12-14
1	F702913	1	Guide Bar	LGTH = 90 cm, JD Buttress Sprocket 16-18
1	F698326	1	Guide Bar	LGTH = 90 cm, JD Buttress Sprocket 13-15
1	F697342	1	Bar	LGTH = 90 cm, JD Buttress Sprocket 12-14
1	F697335	1	Guide Bar	LGTH = 82.5 cm, JD Sprocket 17-19
1	F697332	1	Guide Bar	LGTH = 82.5 cm, JD Sprocket 14-16
1	F697322	1	Guide Bar	LGTH = 75 cm, JD Sprocket 11-13
2	F725573	1	Guide Bar	LGTH = 90 cm, Waratah Stump Treatment Buttress Sprocket 16-18, SUB FOR F702924
2	F725572	1	Guide Bar	LGTH = 90 cm, Waratah Stump Treatment Buttress Sprocket 12-14, SUB FOR F702923
2	F725571	1	Guide Bar	LGTH = 90 cm, Waratah Stump Treatment Buttress Sprocket 13-15, SUB FOR F702922
2	F725570	1	Guide Bar	LGTH = 82.5 cm, Waratah Stump Treatment Sprocket 16-18, SUB FOR F702921
2	F725569	1	Guide Bar	LGTH = 82.5 cm, Waratah Stump Treatment Sprocket 12-14, SUB FOR F702920
2	F725568	1	Guide Bar	LGTH = 82.5 cm, Waratah Stump Treatment Sprocket 13-15, SUB FOR F702919
2	F698327	1	Guide Bar	LGTH = 90 cm, JD Stump Treatment Buttress Sprocket 13-15
2	F725560	1	Guide Bar	LGTH = 75 cm, Waratah Stump Treatment Sprocket 13-15, SUB FOR F702917
2	F702925	1	Guide Bar	LGTH = 90 cm, JD Stump Treatment Buttress Sprocket 16-18
2	F697459	1	Bar	LGTH = 90 cm, JD Stump Treatment Buttress Sprocket 12-14
2	F702890	1	Guide Bar	LGTH = 82,5 cm, JD Stump Treatment Sprocket 17-19
2	F702889	1	Guide Bar	LGTH = 82.5 cm, JD Stump Treatment Sprocket 14-16
2	F697326	1	Guide Bar	LGTH = 75 cm, JD Stump Treatment Sprocket 13-15
2	F697333	1	Guide Bar	LGTH = 82.5 cm, JD Stump Treatment Sprocket 11-13
2	F702887	1	Guide Bar	LGTH = 75 cm, JD Stump Treatment Sprocket 14-16
2	F725558	1	Guide Bar	LGTH = 75 cm, Waratah Stump Treatment Sprocket 12-14, SUB FOR F702918
3	F700128	1	Saw Chain	94 Links, See saw bar and chains selection guide at the end of the catalog
3	F700132	1	Saw Chain	105 Links, See saw bar and chains selection guide at the end of the catalog
3	F700176	1	Saw Chain	103 Links, See saw bar and chains selection guide at the end of the catalog
3	F700175	1	Saw Chain	102 Links, See saw bar and chains selection guide at the end of the catalog
3	F700130	1	Saw Chain	98 Links, See saw bar and chains selection guide at the end of the catalog
3	F700127	1	Saw Chain	96 Links, See saw bar and chains selection guide at the end of the catalog
3	F700174	1	Saw Chain	95 Links, See saw bar and chains selection guide at the end of the catalog
3	F700122	1	Saw Chain	88 Links, See saw bar and chains selection guide at the end of the catalog
3	F700121	1	Saw Chain	87 Links, See saw bar and chains selection guide at the end of the catalog
4	F707900	1	Holder	Stump Treatment, COMPONENTS ON SEPARATE PAGE
5	F697312	1	Guide Bar	LGTH = 60 cm, JD Top Saw Sprocket 11-13
6	F700106	1	Saw Chain	72 Links, Top Saw
7	F678223	1	Bracket	Top Saw See saw bar and chains selection guide at the end of the catalog

Saw Bar and Chain, SuperCut 100S, H415
