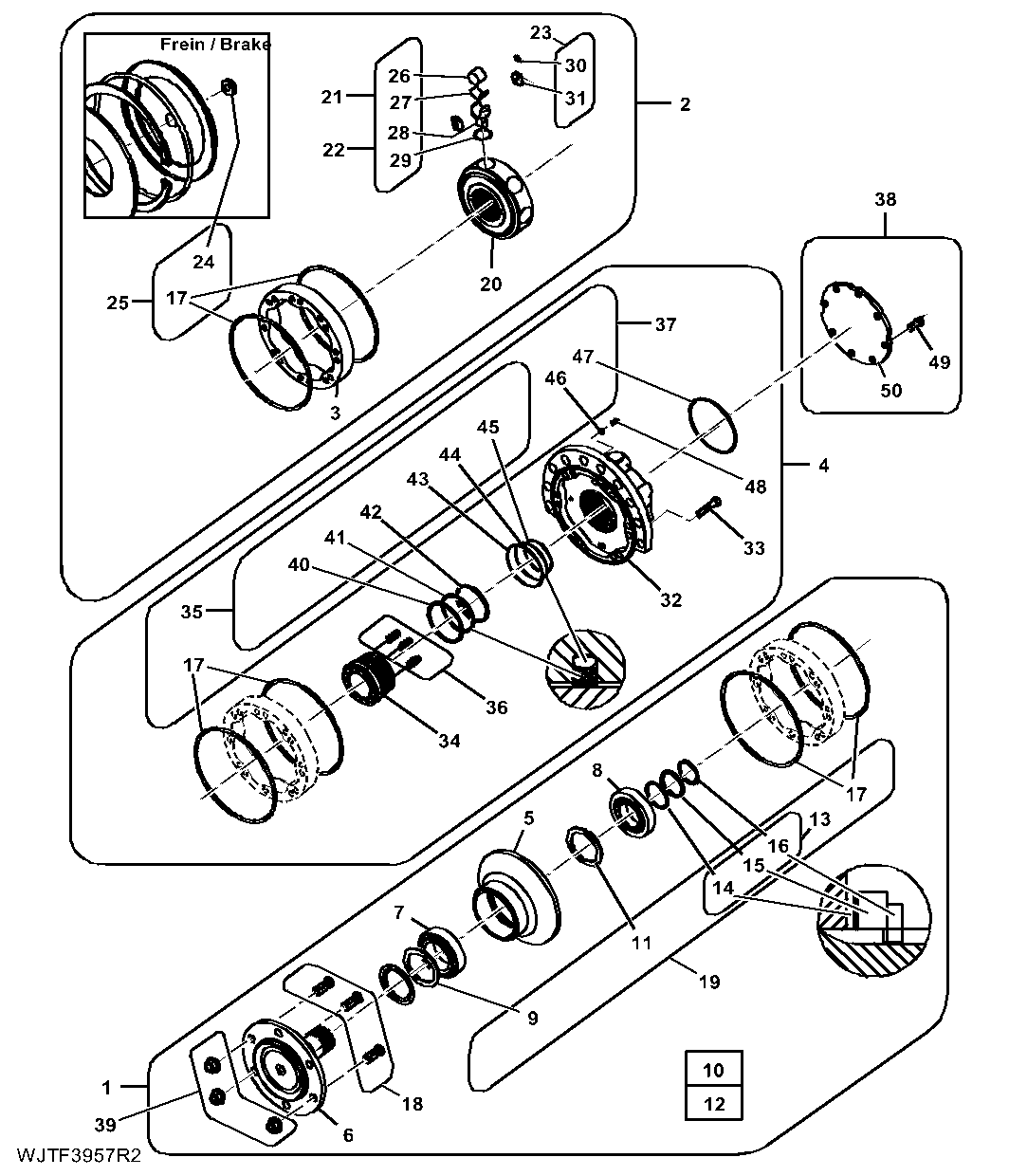

Hydraulic Motor, Lower Feed Rollers (Poclain 625CC) ( - 000489)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	F071039	1	Hydraulic Motor	-
1	F074966	1	Bearing Kit	-
2	F074978	1	Cylinder Block	-
3	F074980	1	Cam	-
4	F074981	1	Repair Kit	-
5	F074967	1	Bearing Housing W/O Bearing	-
6	F074968	1	Shaft	-
7	F074969	1	Bearing	-
8	F074970	1	Bearing	-
9	F074971	1	Seal	-
10	F074972	1	Repair Kit	-
11	F074973	1	Seal	-
12	F074974	1	Washer	-
13	F074975	1	Repair Kit	-
14	-	1	Part 15	-
15	-	1	Part 16	-
16	-	1	Part 17	-
17	-	2	Part 18	-
18	F074976	1	Bolt Kit	(Bolt kit include 5 pcs bolt)
19	F074977	1	Seal Kit	-
20	F074979	1	Cylinder Block	-
21	F059926	1	Piston	-
22	F059927	1	Part Not Coded	-
23	F059936	1	KIT	-
24	-	1	Part 25	-
25	-	1	Part 26	-
26	-	1	Part 27	-
27	-	1	Part 28	-
28	-	1	Part 29	-
29	-	1	Part 30	-
30	-	1	Part 31	-
31	-	2	Part 32	-
32	F074982	1	Cover	-
33	F059928	12	Screw	-
34	F059923	1	DISTRIBUTOR PLATE	-
35	F059935	1	Seal Kit	-
36	F074407	1	Spring Kit	-
37	F074983	1	Repair Kit	-
38	F059934	1	Plate	-
39	F074984	1	Nut Kit	(Nut kit Include 10 pcs nut)
40	-	1	Part 41	-
41	-	1	Part 42	-
42	-	1	Part 43	-
43	-	1	Part 44	-
44	-	1	Part 45	-
45	-	1	Part 46	-
46	-	1	Part 47	-
47	T20758	1	O-Ring	-
48	-	1	Part 49	-
49	F059922	8	Screw	-
50	F678753	1	Lock Plate	-

Hydraulic Motor, Lower Feed Rollers (Poclain 625CC) ( - 000489)

Нет текстового описания
