Открытый узел

Saw Bar and Chain, SuperCut 100S, H413

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

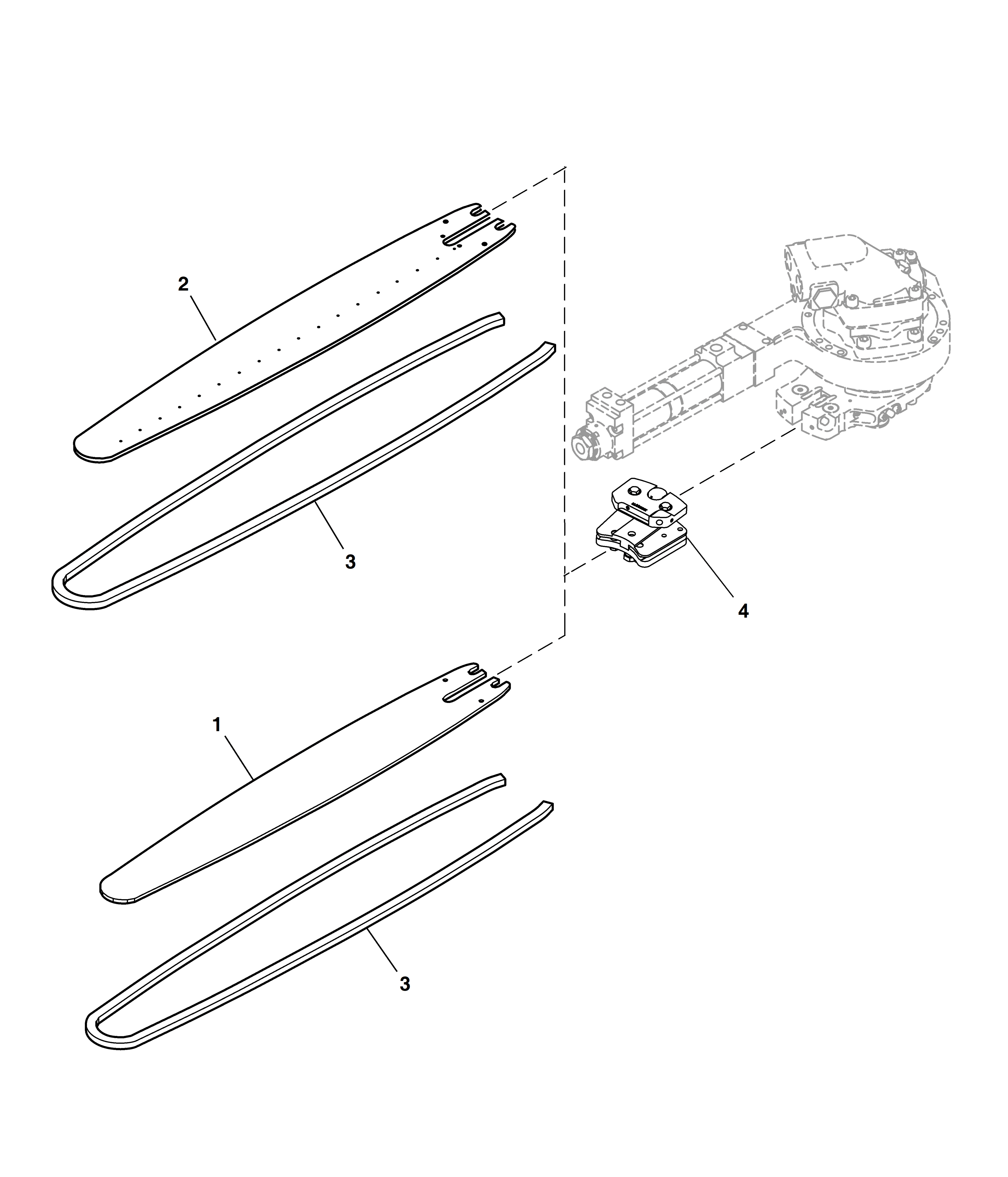

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F697320	1	Guide Bar	LGTH = 67.5 cm, JD Sprocket 11-13
1	F702879	1	Guide Bar	LGTH = 67.5 cm, JD Sprocket 14-16
1	F697319	1	Guide Bar	LGTH = 64 cm, JD Sprocket 11-13
1	F697322	1	Guide Bar	LGTH = 75 cm, JD Sprocket 14-16
1	F702901	1	Guide Bar	LGTH = 75 cm, Waratah Sprocket 13-15
1	F702899	1	Guide Bar	LGTH = 67.5 cm, Waratah Sprocket 13-15
1	F702900	1	Guide Bar	LGTH = 67.5 cm, Waratah Sprocket 12-14
1	F702903	1	Guide Bar	LGTH = 75 cm, Waratah Sprocket 12-14
1	F697325	1	Guide Bar	LGTH = 75 cm, JD Sprocket 14-16
2	F697318	1	Guide Bar	LGTH = 64 cm, JD Stump Treatment Sprocket 11-13
2	F725558	1	Guide Bar	LGTH = 75 cm, Waratah Stump Treatment Sprocket 12-14, SUB FOR F702918
2	F702916	1	Guide Bar	LGTH = 67.5 cm, Waratah Stump Treatment Sprocket 12-14
2	F702915	1	Guide Bar	LGTH = 67.5 cm, Waratah Stump Treatment Sprocket 13-15
2	F725560	1	Guide Bar	LGTH = 75 cm, Waratah Stump Treatment Sprocket 13-15, SUB FOR F702917
2	F697326	1	Guide Bar	LGTH = 75 cm, JD Stump Treatment Sprocket 11-13
2	F702888	1	Guide Bar	LGTH = 67.5 cm, JD Stump Treatment Sprocket 14-16
2	F697321	1	Guide Bar	LGTH = 67.5 cm, JD Stump Treatment Sprocket 11-13
2	F702887	1	Guide Bar	LGTH = 75 cm, JD Stump Treatment Sprocket 14-16
3	F700108	1	Saw Chain	75 Links, See saw bar and chains selection guide at the end of the catalog
3	F700110	1	Saw Chain	80 Links, See saw bar and chains selection guide at the end of the catalog
3	F700112	1	Saw Chain	81 Links, See saw bar and chains selection guide at the end of the catalog
3	F700121	1	Saw Chain	87 Links, See saw bar and chains selection guide at the end of the catalog
3	F700122	1	Saw Chain	88 Links, See saw bar and chains selection guide at the end of the catalog
3	F700123	1	Saw Chain	89 Links, See saw bar and chains selection guide at the end of the catalog
4	F707900	1	Holder	Bar Holder, COMPONENTS ON SEPARATE PAGE

Saw Bar and Chain, SuperCut 100S, H413

Нет текстового описания
