Открытый узел

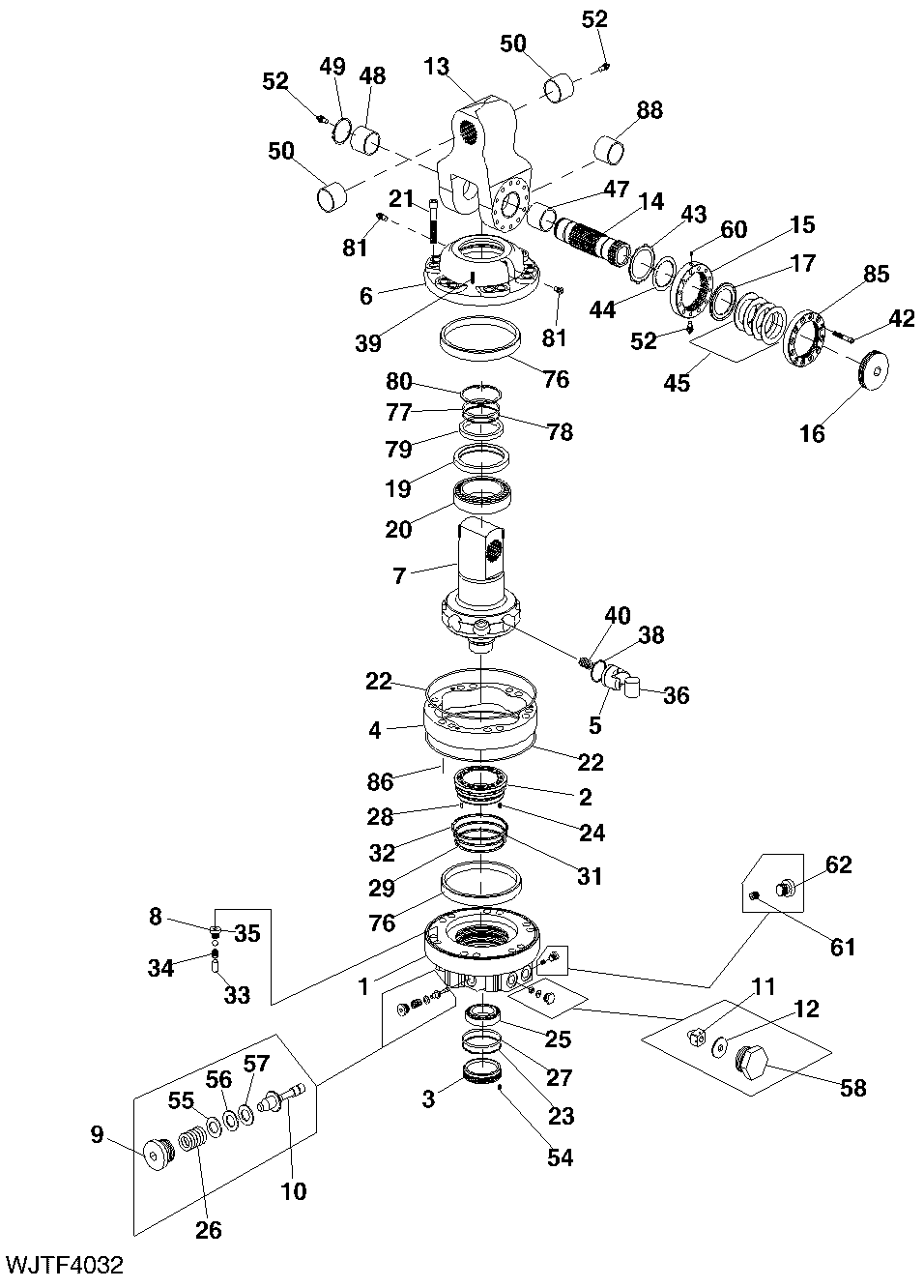

BBR08 HD Rotator Sampo-Hydraulics, Single Swing Damper, Option

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	F074701	1	Rotator	Link 80 mm, Incl. Keys 1-88, Single Swing Damper
0	F074553	1	Rotator	Link 100 mm, Incl. Keys 1-88, Single Swing Damper
0	F066045	1	Brake Kit	Incl. Keys 15-17, 42-45, 52, 60, 85
0	F075511	1	Center Link	Incl. Keys 14, 47-49, 52, for Brake
0	F075521	1	Link Kit	Incl. Keys 13, 47, 48, 50, 52, Long Damper Link and Bearings Use With F074553 Rotator
0	F075522	1	Link Kit	Incl. Keys 13, 47, 48, 50, 52, Long Damper Link and Bearings Use With F074701 Rotator
1	-	1	Part 7	-
2	-	1	Part 8	-
3	F073949	1	Cover	-
4	-	1	Part 10	-
5	-	8	Part 11	-
6	F075496	1	Cover	-
7	-	1	Part 13	-
8	-	2	Part 14	-
9	F073951	2	Plug	-
10	F073954	2	Spool	-
11	F026150	2	Orifice	-
12	F026151	2	Holder	-
13	-	1	Part 19	L= 100 mm, For F074553 Rotator
13	-	1	Part 20	L= 80 mm, For F074701 Rotator
14	F075497	1	Pin	-
15	F073955	2	Gear	-
16	F070147	2	Cover	-
17	F073956	2	Plunger	-
19	-	1	Part 25	-
20	F075498	1	Bearing	-
21	F075499	12	Screw	-
22	-	2	Part 28	-
23	-	1	Part 29	-
24	-	14	Part 30	-
25	F075500	1	Bearing	-
26	F073958	2	Spring	-
27	-	1	Part 33	-
28	-	1	Part 34	-
29	-	1	Part 35	-
30	-	9	Part 36	-
31	-	1	Part 37	-
32	-	1	Part 38	-
33	-	2	Part 39	-
34	-	2	Part 40	-
35	-	2	Part 41	-
36	-	8	Part 42	-
38	-	8	Part 43	-
39	F073960	3	Screw	-
40	-	8	Part 45	-
42	F073961	12	Screw	-
43	F070198	9	Brake Disk	-
44	F070199	8	Brake Disk	-
45	F070200	4	Spring	-
47	F075502	1	Bearing	-
48	F075503	1	Bearing	-
49	F075504	1	Snap Ring	-
50	F072793	2	Bearing	-
52	F073963	3	Lubrication Fitting	-
54	F073964	1	Screw	-
55	F073965	2	Shim	-
56	F073966	2	Shim	-
57	F073967	2	Shim	-
58	F073968	2	Plug	-
60	F073970	1	Plug	-
61	F073971	1	Orifice	-
62	F073972	1	Plug	-
71	-	1	Part 63	-
72	-	2	Part 64	-
76	-	2	Part 65	-
77	-	1	Part 66	-
78	-	1	Part 67	-
79	F075505	1	Sealing Ring	-
80	F075506	1	Snap Ring	-
81	F073975	2	Lubrication Fitting	-
85	F070148	1	Cover	-
86	-	1	Part 72	-
87	-	1	Part 73	-
88	F075509	1	Bearing	-
..	F075512	1	Seal Kit	Incl Keys 19, 22, 23, 27, 77, 78, 87

BBR08 HD Rotator Sampo-Hydraulics, Single Swing Damper, Option

Нет текстового описания
