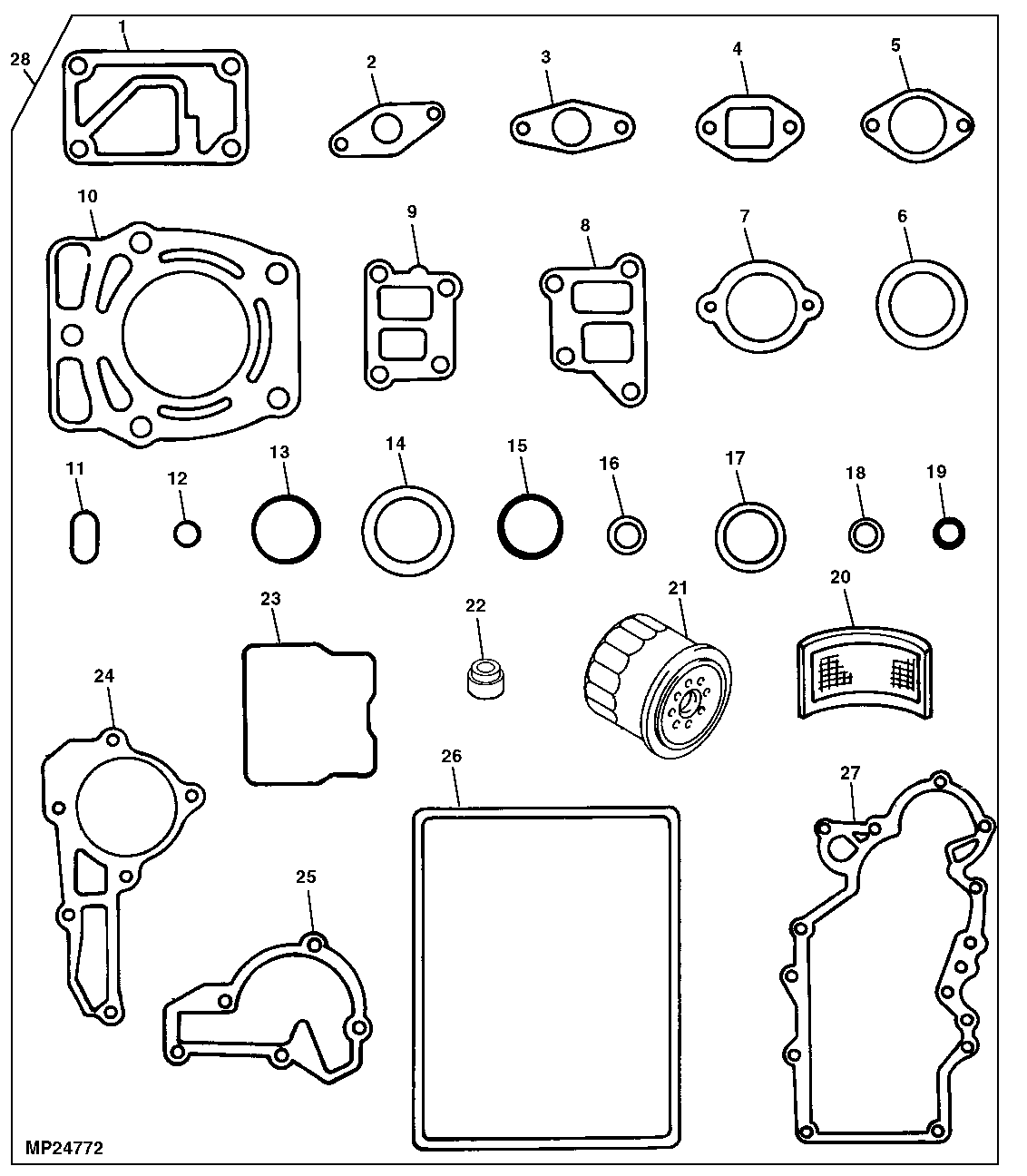

ENGINE GASKET KIT (FD611V-ES01, -FS01)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M113676	1	Gasket	BREATHER COVER
2	M113678	1	Gasket	FILLER NECK
3	M113686	2	Gasket	MUFFLER
4	M113687	2	Gasket	FUEL PUMP
5	M113683	1	Gasket	AIR INTAKE TO CARBURETOR
5	M97307	1	Gasket	CARBURETOR TO INTAKE MANIFOLD
6	M76154	1	Seal	CRANKCASE
7	M113682	1	Gasket	THERMOSTAT
8	M113684	1	Gasket	INTAKE MANIFOLD
9	M113685	1	Gasket	INTAKE MANIFOLD
10	M76070	2	Engine Cylinder Head Gasket	-
11	M76103	1	O-Ring	OIL PUMP
12	M76104	1	O-Ring	OIL PUMP
13	M76139	1	O-Ring	THERMOSTAT
14	M76154	1	Seal	CRANKCASE COVER
15	M77743	1	Gasket	COOLANT RESERVOIR CAP
16	M77746	1	Gasket	COOLANT TEMPERATURE SWITCH
17	M88482	1	Gasket	DIPSTICK
18	M88987	1	Seal	GOVERNOR SHAFT
19	M76158	1	Gasket	OIL DRAIN PLUG
20	M97206	1	Screen	OIL PUMP
21	AM107423	1	Oil Filter	-
22	M76090	4	Seal	OIL
23	MIU11358	2	Gasket	ROCKER COVER, (SUB FOR M76072)
24	M139018	1	Gasket	WATER PUMP CASE
25	M139017	1	Gasket	WATER PUMP COVER
26	M95170	1	Seal	AIR DUCT
27	M139016	1	Gasket	CRANKCASE COVER
28	MIA10942	1	Gasket Kit	(SUB FOR AM131776)

ENGINE GASKET KIT (FD611V-ES01, -FS01)
