Blower Housing (54C) (High-Performance Power Flow)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7867	4	Screw	M8 X 25
2	24M7024	4	Washer	9 X 28 X 3 mm
3	M144110	1	Blower Fan	-
4	M146046	1	Bracket	-
5	M118454	1	Label	(A), WARNING
5	M158480	1	Label	-
6	M112447	15	Nut	(A)
7	M163545	1	Drive Shaft	(SUB FOR M144683)
8	M133474	1	Shaft Key	5 X 5 X 38
9	49M6496	1	Shaft Key	5 X 22 mm, 5 X 22
10	AM133425	1	Housing	ORDER AM138660, INCLUDES PARTS MARKED (A), SUB FOR M145425
11	AM130969	1	Support	SUB FOR AM130969BLE
12	M140225	15	Bolt	NLA; ORDER TCU33283
12	TCU33283	15	Bolt	-
13	24M7051	1	Washer	21 X 37 X 3 mm
14	JD7142	2	Ball Bearing	-
15	28H1885	1	Bushing	0.824" X 1.050" X 1/2"
16	AM121832	1	Sheave	-
17	M145565	1	Shield	NLA; ORDER M167606; INCLUDES BELT INSTALLATION LABEL
17	M167606	1	Shield	-
18	14M7396	6	Lock Nut	M8
19	M110316	3	Washer	-
20	M144500	1	Lever	TENSION
21	M144501	1	Rod	-
22	24M7095	2	Washer	8.400 X 15 X 1.600 mm
23	M146119	1	Spring	-
24	03M7185	1	Bolt	M8 X 25
25	M144494	1	Clevis	TENSION PIVOT
26	19M7979	2	Screw	M8 X 55
27	M147446	1	Shield	-
28	AM118447	1	Sheave	-
29	M71682	1	Bushing	-
30	M135488	2	Bracket	-
31	AM128189	1	Pulley With Dampener	Idler
32	14M7298	2	Flange Nut	M8
33	M144490BLE	1	Bracket	IDLER MOUNTING, (SUB FOR M144490)
34	M155570	1	Arm	IDLER PIVOT, (SUB FOR M144493)
35	M145493	1	Cover	-
36	M145519	1	Spring	-
37	M145496	1	Hinge	-
38	M145495	1	Hinge	-
39	JD8535	1	Ball Bearing	-

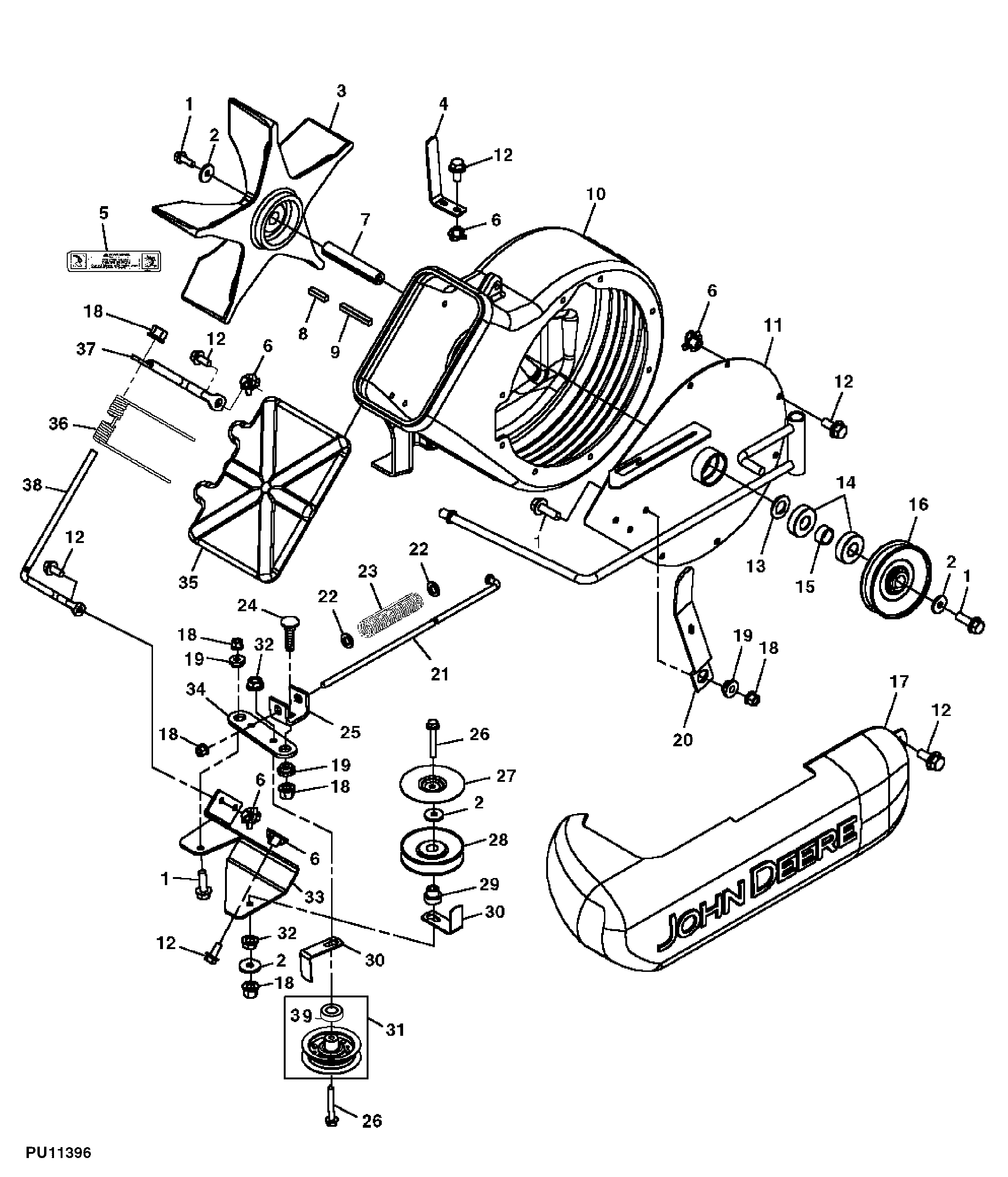

Blower Housing (54C) (High-Performance Power Flow)
