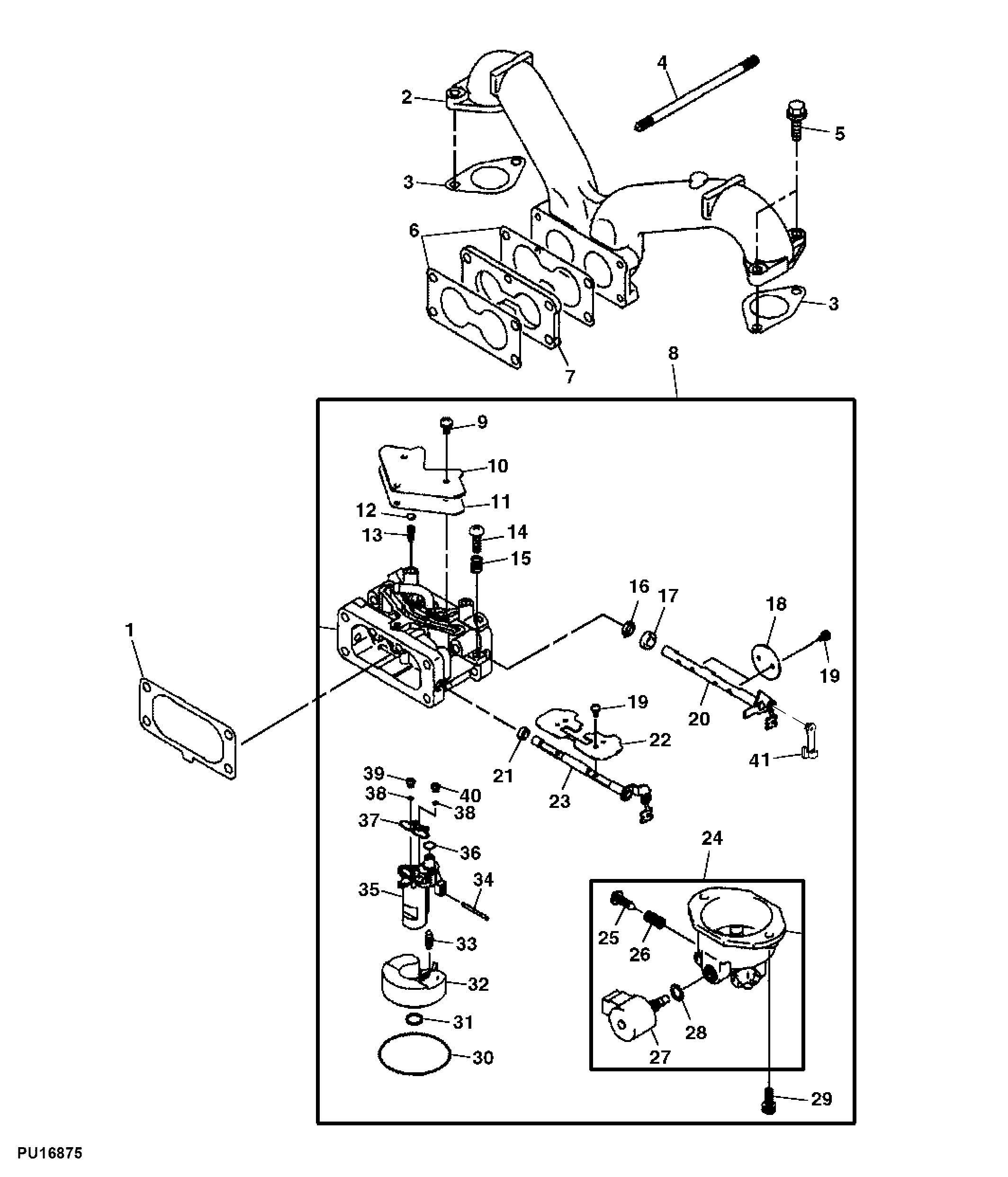

Carburetor and Intake Manifold (Carburetor Marked 15003-7114)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M140260	1	Gasket	AIR FILTER
2	MIU12056	1	Intake Manifold	(SUB FOR M140276)
3	M140262	2	Gasket	MANIFOLD
4	M140293	2	Stud	-
5	19M7862	4	Screw	M6 X 20
6	M141357	2	Gasket	CARBURETOR
7	M141358	1	Insulator	-
8	AM134637	1	Carburetor	(INTERNALLY VENTED) (ENGINE MARKED FH601V-ES15)
9	M153088	3	Screw	COVER
10	M153061	1	Cover	-
11	M153060	1	Gasket	COVER
12	M140285	2	Plug	-
13	M140274	1	Needle	-
14	M140278	1	Screw	-
15	M140288	1	Spring	-
16	M140287	1	Seal	-
17	M153149	1	Bushing	-
18	M147604	2	Valve	THROTTLE
19	M140277	6	Screw	-
20	MIU10705	1	Shaft	ORDER MIU14506 AND MIU12442; Carburetor
20	MIU14506	1	Shaft	-
21	M140286	1	Seal	ORDER UC20531
21	UC20531	1	Seal	-
22	M153067	1	Valve	CHOKE
23	M153143	1	Shaft	ORDER MIU14615 AND MIU12442; Choke
23	MIU12442	1	Holder	(Not Illustrated)
23	MIU14615	1	Shaft	(Not Illustrated)
24	AM134973	1	Chamber	FLOAT
25	M140280	1	Screw	-
26	M140289	1	Spring	-
27	M153069	1	Solenoid	FUEL
28	M153056	1	Gasket	-
29	M153087	2	Screw	-
30	M153059	1	Gasket	-
31	M153077	1	O-Ring	-
32	M153064	1	Float	-
33	M152992	1	Valve	FLOAT
34	M153074	1	Pin	-
35	M153073	1	Spacer	-
36	MIU12486	1	O-Ring	SUB FOR M153075; Spacer
37	M153058	1	Gasket	SPACER
38	M153076	2	O-Ring	-
39	M153078	1	Jet	MAIN (NO.102) (CYL. NO.1)
39	M153080	1	Jet	(3500-7000 FT/1067-2134 M), MAIN (NO.99) (HIGH ALTITUDE)
39	M153148	1	Jet	(7000 FT/2134 M AND ABOVE), MAIN (NO.96) (HIGH ALTITUDE)
40	-	1	Part 46	MAIN (NO.104) (CYL. NO.2)
40	M153079	1	Jet	(3500-7000 FT/1067-2134 M), MAIN (NO.101) (HIGH ALTITUDE)
40	M153147	1	Jet	(7000 FT/2134 M AND ABOVE), MAIN (NO.98) (HIGH ALTITUDE)
41	MIU12442	1	Holder	-
