JD Wrist, FR24B (000143 - )

JD Wrist, FR24B (000143 - )

JD Wrist, FR24B (000143 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

JD Wrist, FR24B (000143 - )

Нет текстового описания

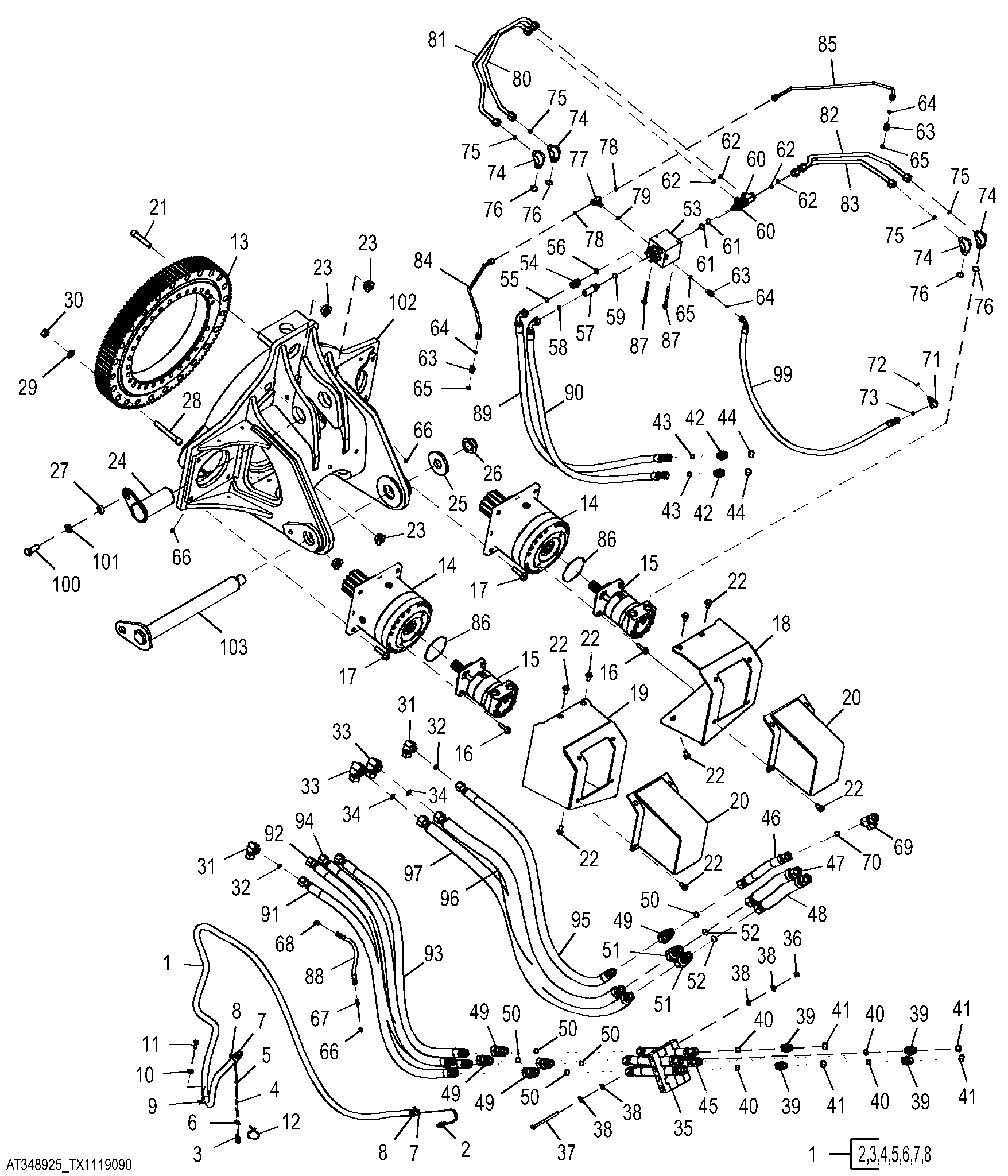

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT371914	1	Wiring Harness	Speed Sensor
2	57M7626	1	Elec. Connector Terminal	-
3	57M7256	1	Elec. Connector Housing	-
4	57M7252	2	Elec. Connector Terminal	-
5	57M7493	2	Elec. Connector Seal	-
6	57M7289	1	Elec.Connect Locking Device	-
7	780003900	2	Electrical Connector Assy	-
8	AR21837	2	Clamp	-
9	R114103	1	Clamp	-
10	810309900	1	Washer	-
11	19M7662	1	Cap Screw	M10 X 30
12	R44302	1	Tie Band	-
13	AT431788	1	Swing Bearing	LINE FILL, SUB FOR AT357750
14	AT499291	2	Planetary Assembly	Components Listed On Separate Pages, SUB FOR AT461537, AT444409 AND AT347070
15	AT364566	2	Hydraulic Motor	Components Listed on Separate Pages
16	19H3619	8	Screw	1/2" X 1-3/4"
17	TM12687	8	Screw	-
18	AT500833	1	Cover	RH, SUB FOR AT375464
18	AT503791	1	Cover	RH
19	AT500834	1	Cover	LH, SUB FOR AT375465
19	AT503792	1	Cover	LH
20	AT500374	2	Cover	Wrist Motor Cover, SUB FOR AT375796
21	TH115476	28	Socket Head Screw	-
22	H205560	14	Screw	-
23	15M7029	4	Fitting	-
24	F278192	1	Pin	-
25	F290811	1	Plate	-
26	T412530	1	Nut	SUB FOR F123560
27	F278195	1	Spacer	-
28	TH115477	24	Socket Head Screw	-
29	R94361	20	Washer	-
30	14H1058	20	Nut	3/4"
31	38H1097	2	Elbow Fitting	-
32	T77858	2	O-Ring	-
33	38H1098	2	Elbow Fitting	-
34	T76938	2	O-Ring	-
35	F392433	2	Clamp	-
36	14M7518	4	Flange Nut	M10
37	19M8990	4	Cap Screw	M10 X 150
38	24M7240	16	Washer	13 X 25 X 3 mm
39	38H1163	4	Adapter Fitting	-
40	T77858	4	O-Ring	-
41	U12547	4	O-Ring	-
42	38H1329	2	Adapter Fitting	-
43	T77932	2	O-Ring	-
44	U12547	2	O-Ring	-
45	AT415529	4	Hydraulic Hose	-
46	AT415529	1	Hydraulic Hose	-
47	AT415530	1	Hydraulic Hose	-
48	AT415530	1	Hydraulic Hose	-
49	AT360396	5	Fitting	-
50	T77858	5	O-Ring	-
51	AT360397	2	Fitting	-
52	T76938	2	O-Ring	-
53	AT351171	1	Hydraulic Pressure Valve	Wrist Crossover Relief Valve Components on Separate Page
54	38H1162	1	Adapter Fitting	-
55	T77932	1	O-Ring	-
56	R26906	1	O-Ring	-
57	38H1214	1	Adapter Fitting	-
58	T77932	1	O-Ring	-
59	R26906	1	O-Ring	-
60	38H1025	1	Tee Fitting	-
61	R26906	2	O-Ring	-
62	T77932	2	O-Ring	-
63	38H1160	3	Adapter Fitting	-
64	T77613	3	O-Ring	-
65	R26448	3	O-Ring	-
66	JD7759	3	Lubrication Fitting	-
67	R35352	1	Fitting	-
68	M86661	1	Elbow Fitting	-
69	T247368	1	Tee Fitting	-
70	T77858	1	O-Ring	-
71	38H1004	1	Elbow Fitting	-
72	R26448	1	O-Ring	-
73	T77613	1	O-Ring	-
74	38H1404	4	Elbow Fitting	-
75	T77932	4	O-Ring	-
76	U12547	4	O-Ring	-
77	38H1016	1	Tee Fitting	-
78	T77613	2	O-Ring	-
79	R26448	1	O-Ring	-
80	AT364606	1	Oil Line	-
81	AT364607	1	Oil Line	-
82	AT364608	1	Oil Line	-
83	AT364609	1	Oil Line	-
84	AT364610	1	Oil Line	-
85	AT364611	1	Oil Line	-
86	810656300	2	O-Ring	-
87	19M8006	2	Screw	M8 X 120
88	AT352880	1	Hydraulic Hose	-
89	AT352463	1	Hydraulic Hose	-
90	AT352463	1	Hydraulic Hose	-
91	AT415526	1	Hydraulic Hose	-
92	AT415526	1	Hydraulic Hose	-
93	AT415526	1	Hydraulic Hose	-
94	AT415526	1	Hydraulic Hose	-
95	AT415557	1	Hydraulic Hose	-
96	AT415528	1	Hydraulic Hose	-
97	AT415528	1	Hydraulic Hose	-
99	AT364656	1	Hydraulic Hose	-
100	19M7597	1	Cap Screw	M20 X 50
101	R94361	1	Washer	-
102	AT460183	1	Frame	CA, SUB FOR AT347055
103	AT409264	1	Pin	-
