Открытый узел

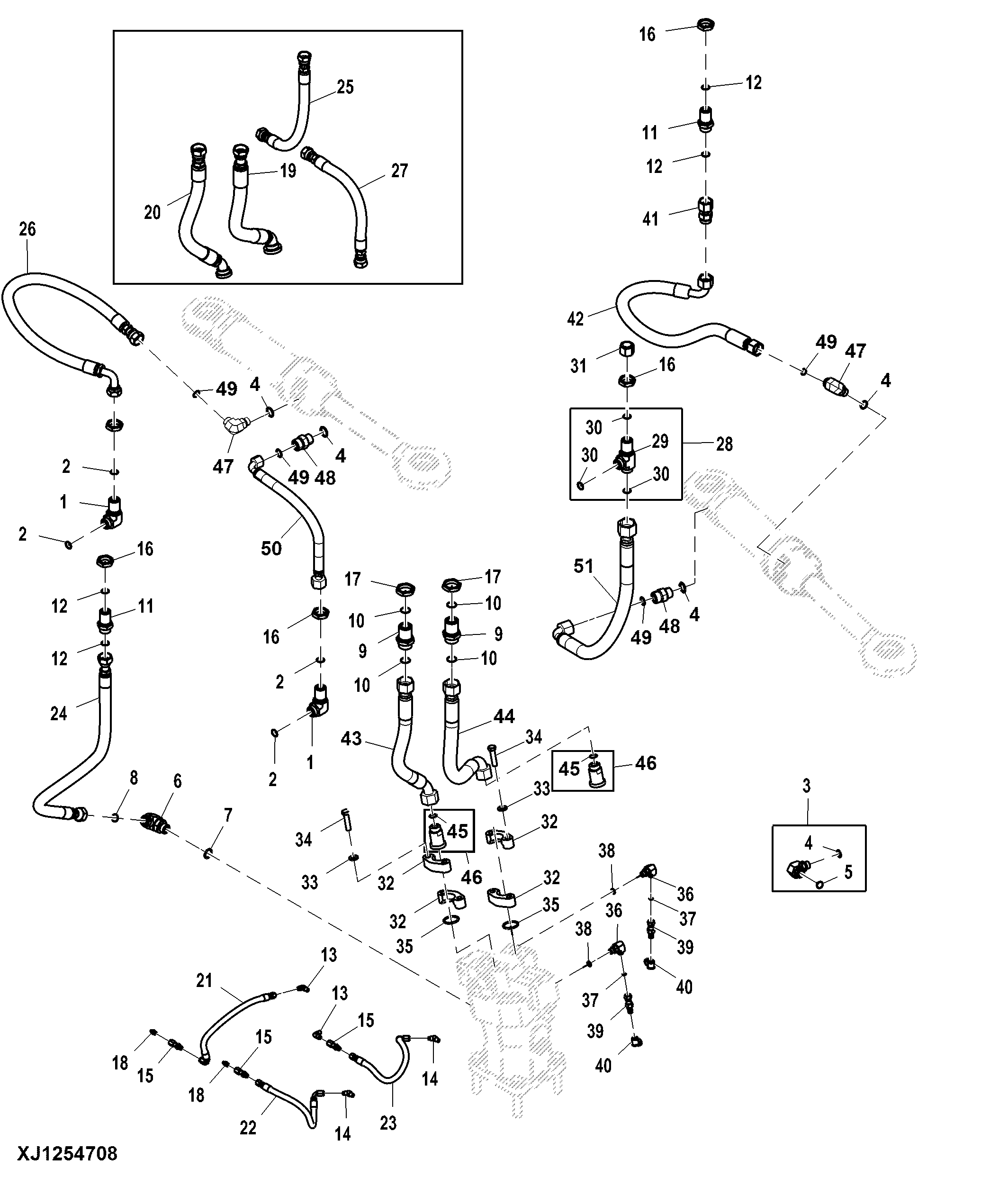

Hydraulic System, FR24B Felling Head ( - 000445)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1324	2	Elbow Fitting	USE WITH AT495828, AT468076
2	T77858	4	O-Ring	-
3	AT436351	4	Elbow Fitting	USE WITH AT338319, AT338318, AT462910, AT472183
4	R26906	4	O-Ring	-
5	T77858	1	O-Ring	USE WITH AT338319, AT338318, AT462910, AT472183
6	38H1007	1	Elbow Fitting	-
7	U12547	1	O-Ring	-
8	T77858	1	O-Ring	-
9	38H1287	2	Adapter Fitting	-
10	T76938	4	O-Ring	-
11	38H1276	2	Adapter Fitting	-
12	T77858	2	O-Ring	-
13	T28850	2	Elbow Fitting	SUB FOR 810273400
14	M86661	2	Elbow Fitting	SUB FOR 810301600
15	AT119064	3	Fitting	SUB FOR 811103400
16	38H5094	5	Nut	1-3/16"
17	38H5095	2	Nut	1-7/16"
18	JD7759	2	Lubrication Fitting	-
19	AT338322	1	Hydraulic Hose	ORDER AT468010
19	AT468010	1	Hydraulic Hose	ORDER AT479208, T395259
20	AT338321	1	Hydraulic Hose	ORDER AT479209, T395259
21	811428500	1	Hydraulic Hose	Fabricate
22	811428400	1	Hydraulic Hose	Fabricate
23	811428400	1	Hydraulic Hose	Fabricate
24	AT338323	1	Hydraulic Hose	ORDER AT468008
24	AT468008	1	Hydraulic Hose	-
25	AT338319	1	Hydraulic Hose	ORDER AT468007, 38H1162, T77932, R26906
26	AT495828	1	Hydraulic Hose	SUB FOR AT468011
26	AT462910	1	Hydraulic Hose	Fabricate, SUB FOR AT338320; ORDER AT468011, 38H1006, T77932, R26906
27	AT338318	1	Hydraulic Hose	ORDER AT468076, 38H1162, T77932, R26906
27	AT468076	1	Hydraulic Hose	-
28	61H1463	1	Tee Fitting	-
29	38H1463	1	Tee Fitting	-
30	T77858	3	O-Ring	-
31	38H1418	1	Fitting	-
32	AT131685	4	Flange Fitting	-
33	24M7240	8	Washer	13 X 25 X 3 mm
34	19H2735	8	Cap Screw	1/2" X 2"
35	T78393	2	O-Ring	-
36	38H1009	2	Elbow Fitting	-
37	T77814	2	O-Ring	-
38	R26448	2	O-Ring	-
39	RE60700	2	Diagnostic Coupling	-
40	R77175	2	Cover	-
41	T145733	1	Adapter Fitting	-
42	AT338320	1	Hydraulic Hose	Fabricate, NLA;ORDER AT472183; SUB FOR APPL F125914
42	AT472183	1	Hydraulic Hose	ORDER AT468018, 38H1006, T77932, R26906
42	AT468018	1	Hydraulic Hose	-
43	AT479209	1	Hydraulic Hose	-
44	AT479208	1	Hydraulic Hose	SUB FOR AT487866
45	T76938	2	O-Ring	-
46	T395259	2	Flange Fitting	USE WITH AT479209, AT479208
47	38H1006	2	Elbow Fitting	USE WITH AT468011, AT468018, AT495828
48	38H1162	2	Adapter Fitting	USE WITH AT468007, AT468076
49	T77932	4	O-Ring	USE WITH AT468007, AT468076, AT468011, AT468018
50	AT468076	1	Hydraulic Hose	-
51	AT468007	1	Hydraulic Hose	-

Hydraulic System, FR24B Felling Head ( - 000445)

Нет текстового описания
