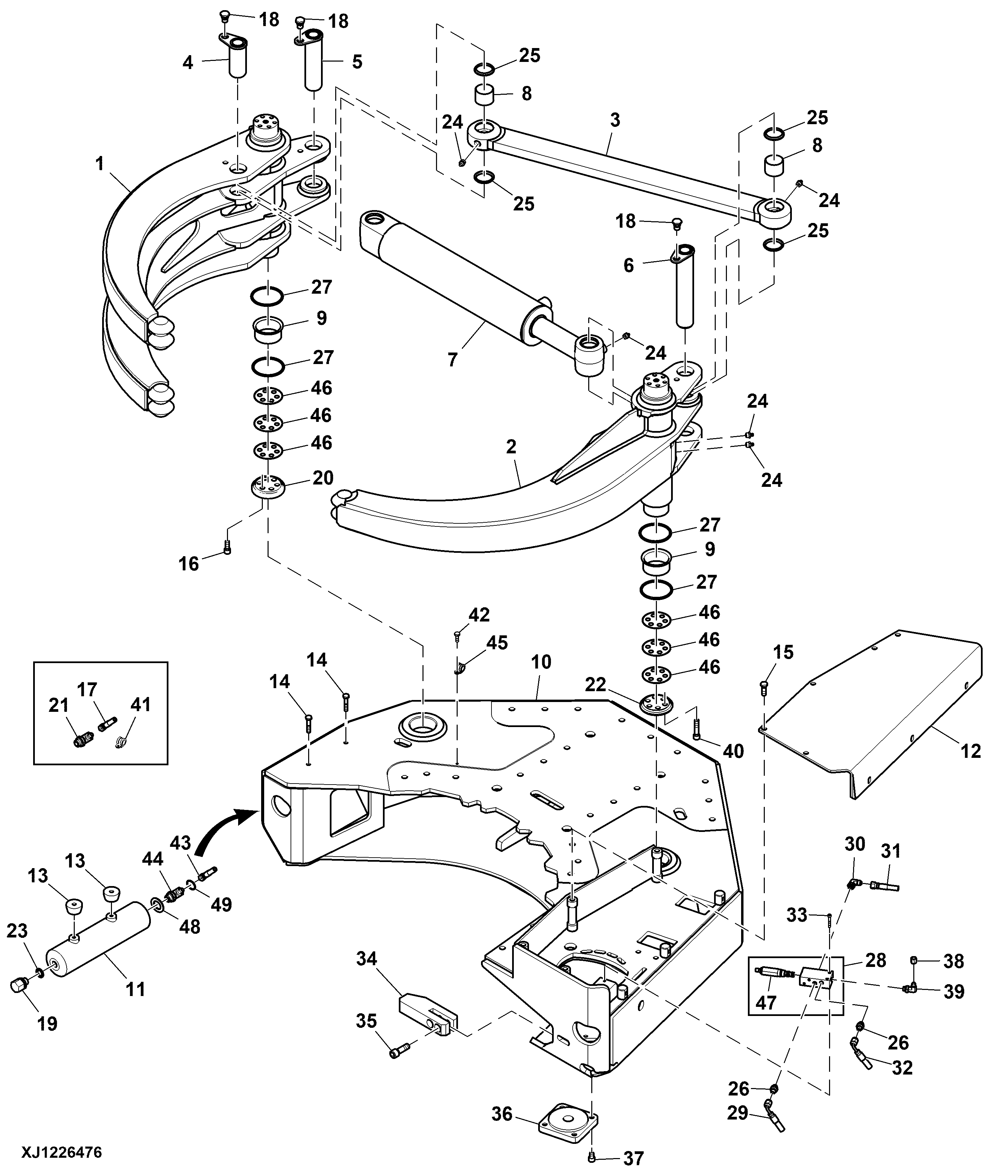

Saw Box With Grapple Series II (000090 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA114547	1	Arm	Female Grapple
2	WA114548	1	Arm	Male grapple
3	WA114549	1	Push Rod	-
4	WA114550	1	Pin	-
5	WA114551	1	Pin	-
6	WA114552	1	Pin	-
7	-	1	Part 7	Grapple Function Component on separate page
8	WA114778	2	Bushing	-
9	WA114484	2	Bushing	-
10	-	1	Part 10	-
11	F008334	1	Tank	Air tank
12	WA114555	1	Cover	Saw motor cover plate
13	WA114556	2	Spacer	-
14	19M8616	2	Cap Screw	-
15	WA114558	8	Socket Head Screw	M12 X 35, 12.9
16	WA114487	6	Socket Head Screw	M12 X 30, 8.8
17	WA114727	1	Hydraulic Hose	1390 mm, FJIC 6 STR.- FJIC 6 STR.
17	WA130333	1	Hydraulic Hose	1500 mm, 3/8"
18	WA114490	3	Self-Locking Screw	-
19	F070398	1	Plug	-
20	WA114486	1	Washer	-
21	WA114560	1	Elbow Fitting	MBSP 8 - FJIC 6
21	WA130331	1	Fitting	11/16" ORFSM X 1/2" BSPPM
22	WA114590	1	Washer	M12 X 45, 8.8
23	WA114771	1	Seal	BSP 8
24	WA114562	8	Lubrication Fitting	M10 X 1
25	F008330	4	Seal	Dust
26	WA114564	2	Threaded Nipple	MBSP 4 - MJIC 6
27	WA114565	4	O-Ring	90 X 5
28	WA129192	1	Valve	Pressure regulating
29	WA114738	1	Hydraulic Hose	285 mm, FJIC 6 90 degree- FJIC 6 90 degree
30	WA114567	1	Elbow Fitting	MBSP 4 - MJIC 6
31	WA114728	1	Hydraulic Hose	375 mm, FJIC 6 STR. - FJIC 6 90 degree
32	WA114729	1	Hydraulic Hose	360 mm, FJIC 6 90 degree - FJIC 6 90 degree, ORDER WA133755
32	WA133755	1	Hydraulic Hose	1/4", OAL=420
33	WA114572	2	Socket Head Screw	M6 X 40, 12.9
34	WA114575	1	Stop	-
35	WA114573	2	Socket Head Screw	M16 X 50, 12.9
36	WA114576	1	Cover	-
37	F061948	4	CAP SCREW	M12 X 16, 12.9
38	WA114578	1	Cap	FJIC 4
39	WA102254	1	Elbow Fitting	1/4" BSPP X 7/16" JIC
40	WA114582	6	Socket Head Screw	M12 X 55, 12.9
41	WA129183	1	Hose Clamp	-
41	WA130332	1	Hose Clamp	-
42	WA114512	1	Cap Screw	-
43	WA133752	1	Hose	1500 mm
44	WA133775	1	Fitting	11/16"-16 ORFSM x 1/2" BSPPM
45	WA133773	1	Hose Clamp	22 mm
46	WA130335	6	Shim	0.5 mm
47	WA129184	1	Pressure Relief Fitting	-
48	WA101547	2	Sealing Washer	1/2" Dowty (-08)
49	WA118952	2	O-Ring	731-012N90-ORFS ID 0.364" X W 0.07" (-06)

Saw Box With Grapple Series II (000090 - )
