Wiring Harness, Less Application System

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

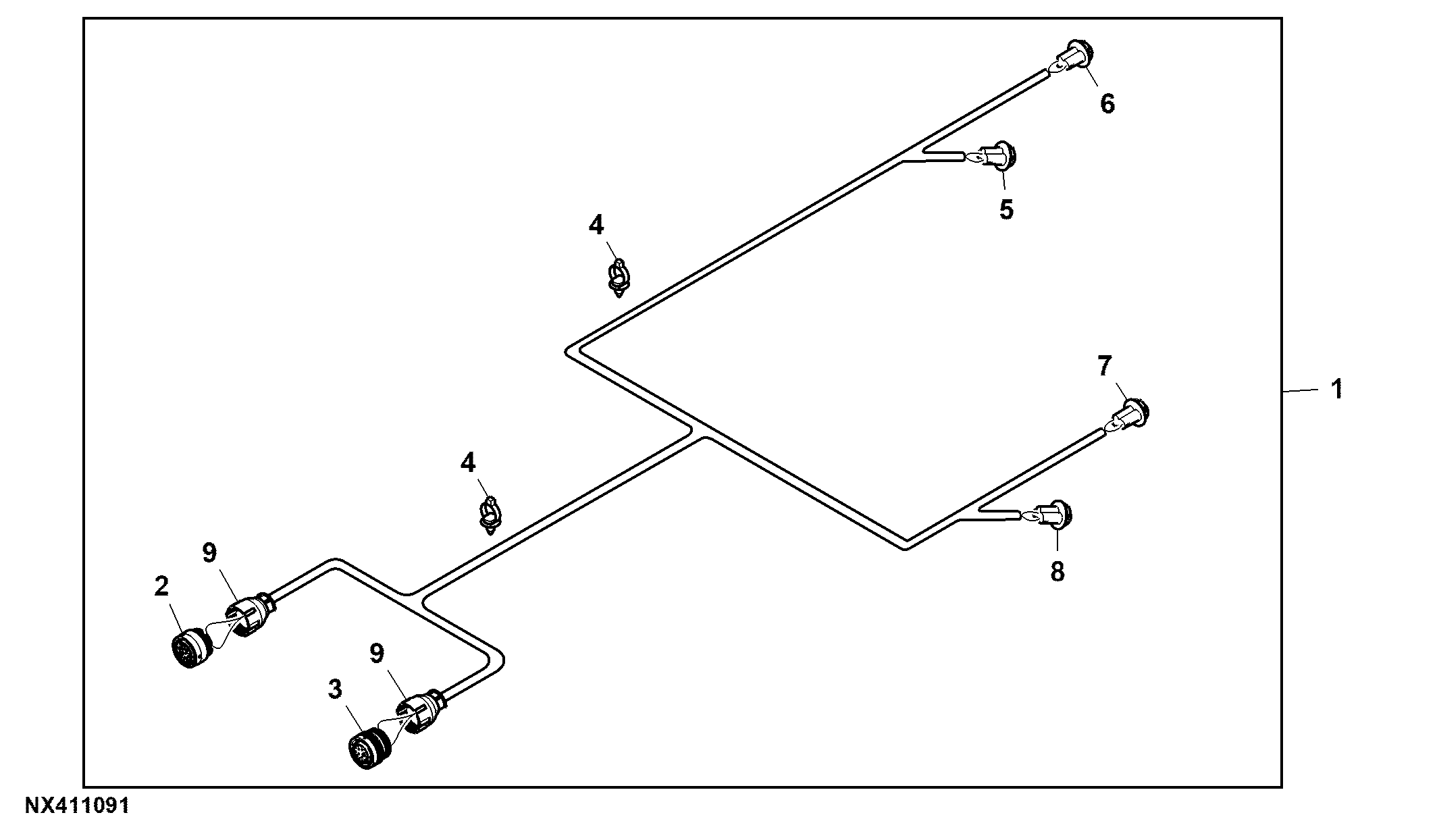

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK32056	1	Wiring Harness	-
2	57M12967	1	Elec. Connector Housing	Chassis System 2 Inline Harness XX167-2
2	57M13145	1	Elec. Connector Terminal	Cavity R
2	57M7905	2	Electrical Connector Assy	Cavity S, U
2	R78069	6	Elec. Connector Cavity Plug	Cavity T, V, W, X,Y,Z
3	57M11748	1	Elec. Connector Housing	Chassis System 1 Inline Harness XX166-2
3	57M7546	6	Elec. Connector Terminal	Cavity 2,3,5, 9,10,11
3	57M7905	1	Electrical Connector Assy	Cavity 1
3	R78069	11	Elec. Connector Cavity Plug	Cavity 4,6,7,8, 12,13,14,15,16,17,18
4	RE258807	19	Tie Band	-
5	57M8019	1	Elec. Connector Terminal	-
5	57M7546	2	Elec. Connector Terminal	Cavity A, B, C
5	57M8018	1	Electrical Connector Assy	Right Tail, Stop and Rear Turn Light XE104
6	57M8018	1	Electrical Connector Assy	Right Rear Turn Light XE134
6	57M7546	2	Elec. Connector Terminal	Cavity B, C
6	R78069	1	Elec. Connector Cavity Plug	Cavity A
6	57M8019	1	Elec. Connector Terminal	-
7	57M8018	1	Electrical Connector Assy	Left Rear Turn Light XE130
7	57M7546	2	Elec. Connector Terminal	Cavity B,C
7	R78069	1	Elec. Connector Cavity Plug	Cavity A
7	57M8019	1	Elec. Connector Terminal	-
8	57M8018	1	Electrical Connector Assy	Left Tail, Stop and Rear Turn Light XE103
8	57M7546	3	Elec. Connector Terminal	Cavity A, B, C
8	57M8019	1	Elec. Connector Terminal	-
9	57M11899	2	Elec. Connector Accessory	-

Wiring Harness, Less Application System
