Открытый узел

Wiring Harness, Armrest

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

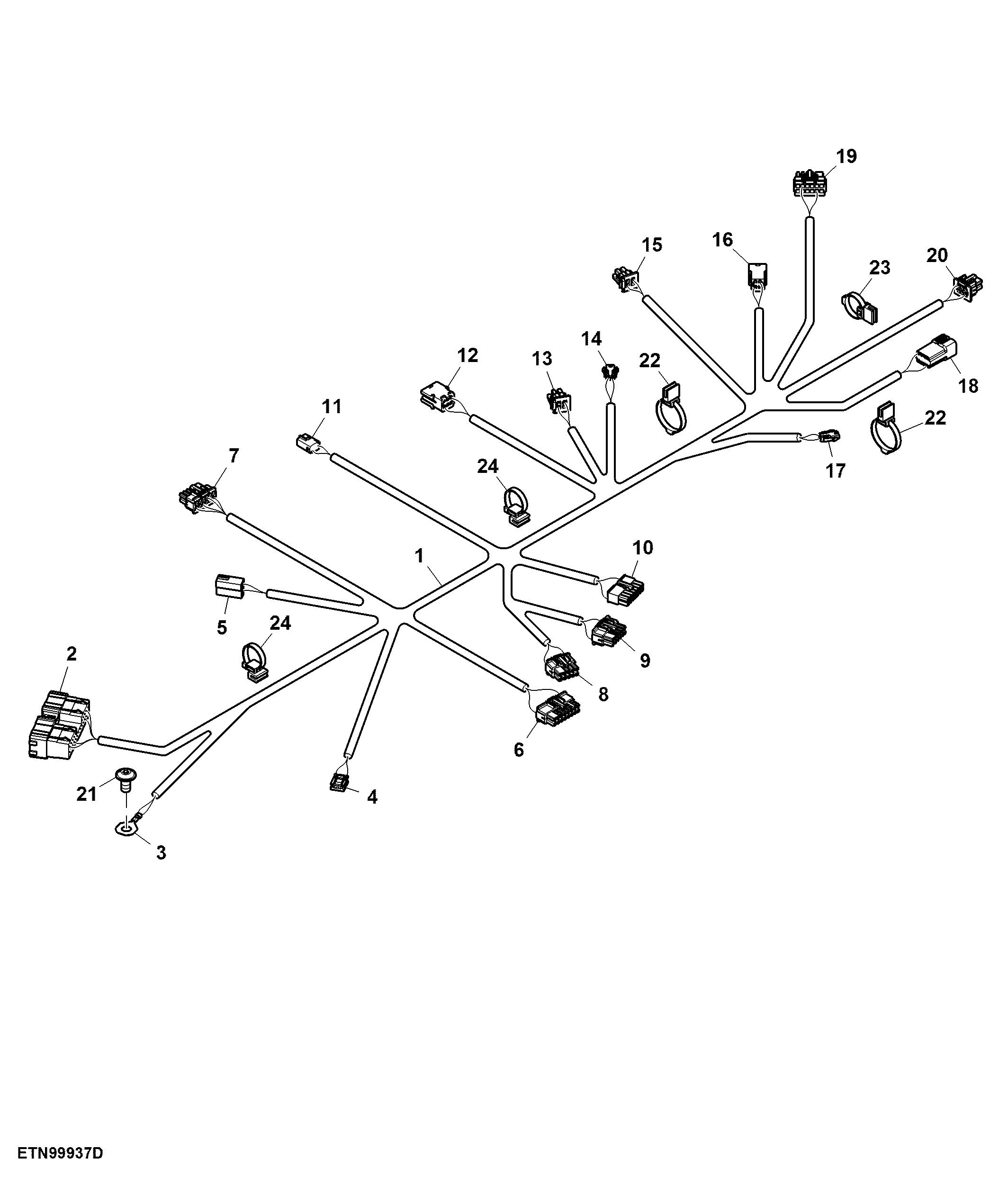

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AXE62172	1	Wiring Harness	-
2	57M8857	1	Elec. Connector Housing	Inline Cab Main / Armrest Harness XX0114-2
2	57M8910	1	Clip	-
2	57M8863	8	Elec. Connector Terminal	Cavity C, D, E, F, G, K, L, Y
2	57M8862	9	Elec. Connector Terminal	Cavity H, J, M, N, R, T, U, W, X
2	57M8860	1	Elec.Connect Locking Device	-
2	57M8859	1	Elec.Connect Locking Device	-
2	57M8861	4	Elec. Connector Terminal	Cavity A, B, P, S
3	57M8868	1	Elec. Connector Terminal	Armrest Tub Ground XGND0054
4	57M13867	1	Elec. Connector Housing	USB Charging Module XX26
4	57M13868	2	Elec. Connector Terminal	Cavity 1, 4
5	57M7065	1	Elec. Connector Housing	X23 Auxiliary Power Outlet 3 XX23
5	57M7041	2	Elec. Connector Terminal	Cavity 1, 2
6	57M7717	1	Electrical Connector Assy	A60 ACU Controller (J2A) XA60-2A
6	57M7550	2	Elec. Connector Terminal	Cavity 1, 2
6	57M11552	4	Elec. Connector Terminal	Cavity 7, 8, 13, 16
6	57M7722	1	Electrical Connector Assy	-
7	57M11552	10	Elec. Connector Terminal	Cavity 1, 2, 3, 6, 7, 8, 9, 10, 11, 12
7	57M7721	1	Electrical Connector Assy	-
7	57M7716	1	Electrical Connector Assy	A60 ACU Controller (J1) XA60-1
8	57M7470	1	Elec. Connector Housing	A60 ACU Controller (J3B) XA60-3B
8	57M11552	4	Elec. Connector Terminal	Cavity 1
8	57M11552	4	Elec. Connector Terminal	Cavity 2, 3, 6, 10
8	57M7474	1	Elec. Connector Terminal	-
9	57M7716	1	Electrical Connector Assy	A60 ACU Controller (J3A) XA60-3A
9	57M11552	10	Elec. Connector Terminal	Cavity 1, 2, 4, 5, 6, 8, 9, 10, 11, 12
9	57M7721	1	Electrical Connector Assy	-
10	57M7710	1	Electrical Connector Assy	A30 Handle Position Assembly XA30
10	57M11552	9	Elec. Connector Terminal	Cavity 1, 3, 4, 5, 7, 8, 12, 13, 14
10	57M12073	9	Elec. Connector Terminal	Cavity 2, 9, 10, 11
11	57M7724	2	Electrical Connector Assy	-
11	57M8293	3	Elec. Connector Terminal	Cavity A, B, D
11	57M7789	1	Elec. Connector Housing	Armrest Harness / Navigation Bar Harness XX0115-1
12	57M7715	1	Electrical Connector Assy	A28 Multifunction Control Handle XA28
12	57M7719	1	Electrical Connector Assy	-
12	57M10450	1	Elec. Connector Terminal	Cavity 1, 2, 3, 4, 5
13	57M7712	1	Electrical Connector Assy	A74 DCM Module XA74
13	57M11552	3	Elec. Connector Terminal	Cavity 1, 2, 4
13	57M7718	1	Electrical Connector Assy	-
14	57M13251	1	Elec. Connector Housing	Engagement Switch Backlighting Module XA22
14	57M11511	1	Elec. Connector Terminal	Cavity 1, 2
15	57M7712	1	Electrical Connector Assy	S28 Separator Engage Switch XS28
15	57M11552	4	Elec. Connector Terminal	Cavity 1, 2, 3, 4
15	57M7718	1	Electrical Connector Assy	-
16	57M7713	1	Electrical Connector Assy	S29 Header Engage Switch XS29
16	57M7718	1	Electrical Connector Assy	-
16	57M10450	1	Elec. Connector Terminal	Cavity 1, 2, 3, 4
17	57M13251	1	Elec. Connector Housing	A34 Hydro Handle Backlight Module XA34
17	57M11511	2	Elec. Connector Terminal	Cavity 1, 2
18	57M7792	1	Electrical Connector Assy	Sprayers Secondary Brake Switch XS51
18	57M7500	4	Elec. Connector Terminal	Cavity A, D, E, H
18	57M7731	1	Electrical Connector Assy	-
19	57M7716	1	Electrical Connector Assy	A73 House Controls Module XA73
19	57M11552	4	Elec. Connector Terminal	Cavity 1, 2, 4, 12
19	57M7721	1	Electrical Connector Assy	-
20	57M7714	1	Electrical Connector Assy	A77 SCM Module XA77
20	57M11552	3	Elec. Connector Terminal	Cavity 1, 2, 6
20	57M7719	1	Electrical Connector Assy	-
21	L212257	1	Screw	-
22	57M12042	2	Elec. Connector Accessory	-
23	57M10362	1	Clamp	-
24	57M9229	2	Clip	-
