Открытый узел

Wiring Harness, ActiveSeat™ Base

Wiring Harness, ActiveSeat™ Base

Wiring Harness, ActiveSeat™ Base

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

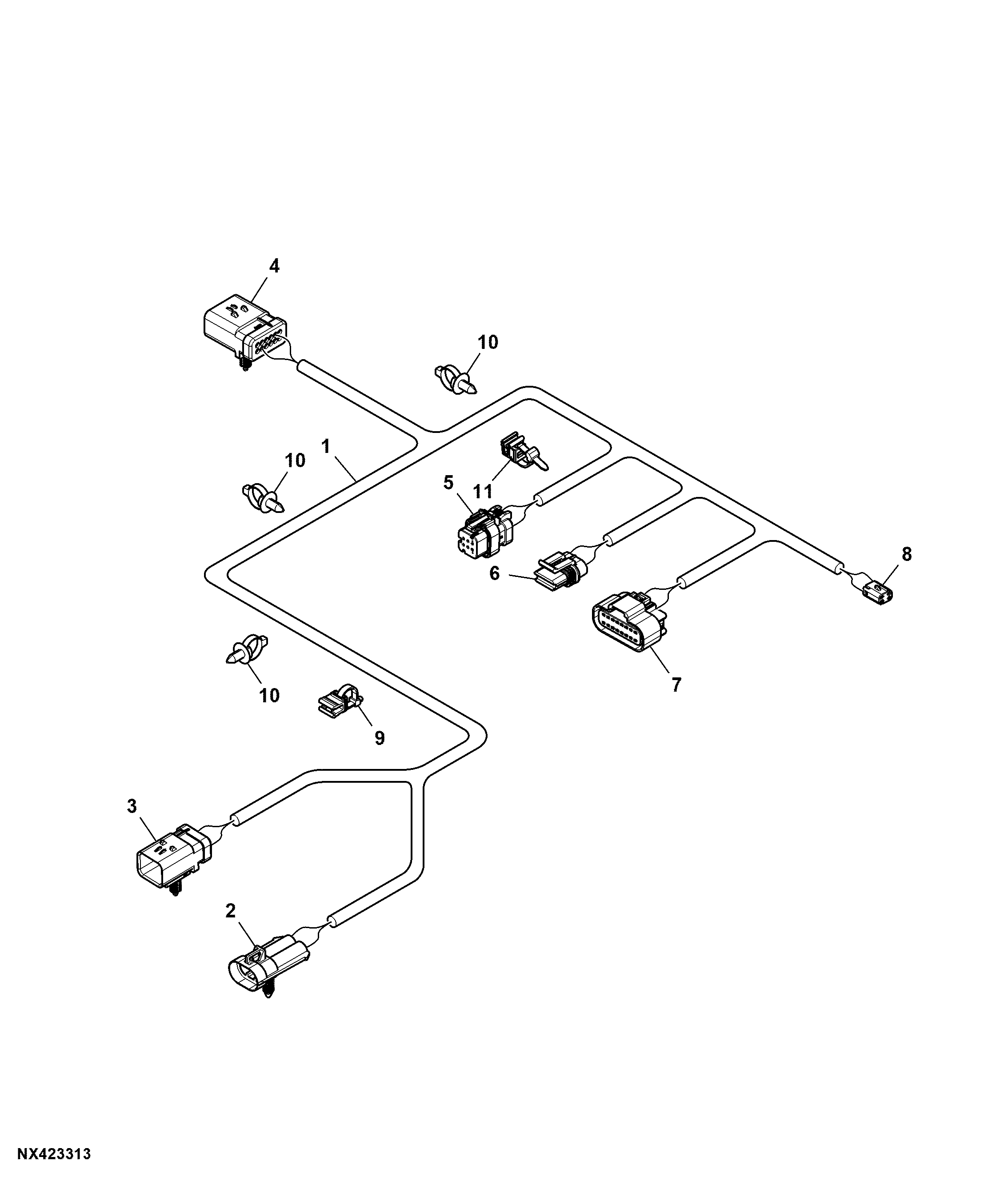

Wiring Harness, ActiveSeat™ Base

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE594643	1	Wiring Harness	Active Seat Base
2	57M14490	1	Elec. Connector Housing	Seat Base to Cab Harness Interconnect 2 XX931-2
2	57M7701	2	Elec. Connector Terminal	Cavity A, B
2	57M9907	1	Elec. Connector Accessory	Terminal Position Assurance
2	57M9555	1	Clip	-
3	57M9796	1	Elec. Connector Housing	Seat Base to Cab Harness Interconnect 1 XX930-2
3	57M9813	4	Elec. Connector Terminal	Cavity 3, 5, 6, 8
3	57M10603	1	Elec. Connector Terminal	Cavity 4
3	57M9939	1	Elec. Connector Accessory	-
4	57M9804	1	Elec. Connector Housing	Seat Base to Seat Top Interconnect XX933-1
4	57M10603	1	Elec. Connector Terminal	Cavity 1
4	57M9813	8	Elec. Connector Terminal	Cavity 3-6, 9-12
4	57M9814	2	Elec. Connector Cavity Plug	Cavity 2, 8
4	57M9939	1	Elec. Connector Accessory	-
5	57M9814	3	Elec. Connector Cavity Plug	Cavity 1-3
5	57M9786	1	Elec. Connector Housing	Seat Position Sensor B941
5	57M9808	3	Elec. Connector Terminal	Cavity 4-6
6	R104570	1	Electrical Connector Assy	Seat Controller D122-J1
6	R104571	2	Elec. Connector Terminal	Cavity A, B
7	57M8321	2	Elec. Connector Terminal	Cavity C, J
7	57M9919	1	Elec. Connector Accessory	Terminal Position Assurance
7	57M9446	2	Elec. Connector Seal	Cavity D, E
7	57M8300	3	Elec. Connector Terminal	Cavity C, J, K
7	57M9223	12	Elec. Connector Seal	Cavity A, B, F, G, H, K, L, M, N, P, R, S
7	57M8299	11	Elec. Connector Terminal	Cavity A, B, F, G, H, L, M, N, P, R, S
7	57M8484	1	Elec. Connector Housing	Seat Controller D122-J3
8	57M7789	1	Elec. Connector Housing	Seat Compressor Motor with Bleed Valve A909
8	57M7501	4	Elec. Connector Terminal	Cavity A-D
8	57M7724	2	Electrical Connector Assy	Terminal Position Assurance
9	57M14544	1	Elec. Connector Accessory	-
10	RE258807	6	Tie Band	-
11	57M9229	1	Clip	-
