Открытый узел

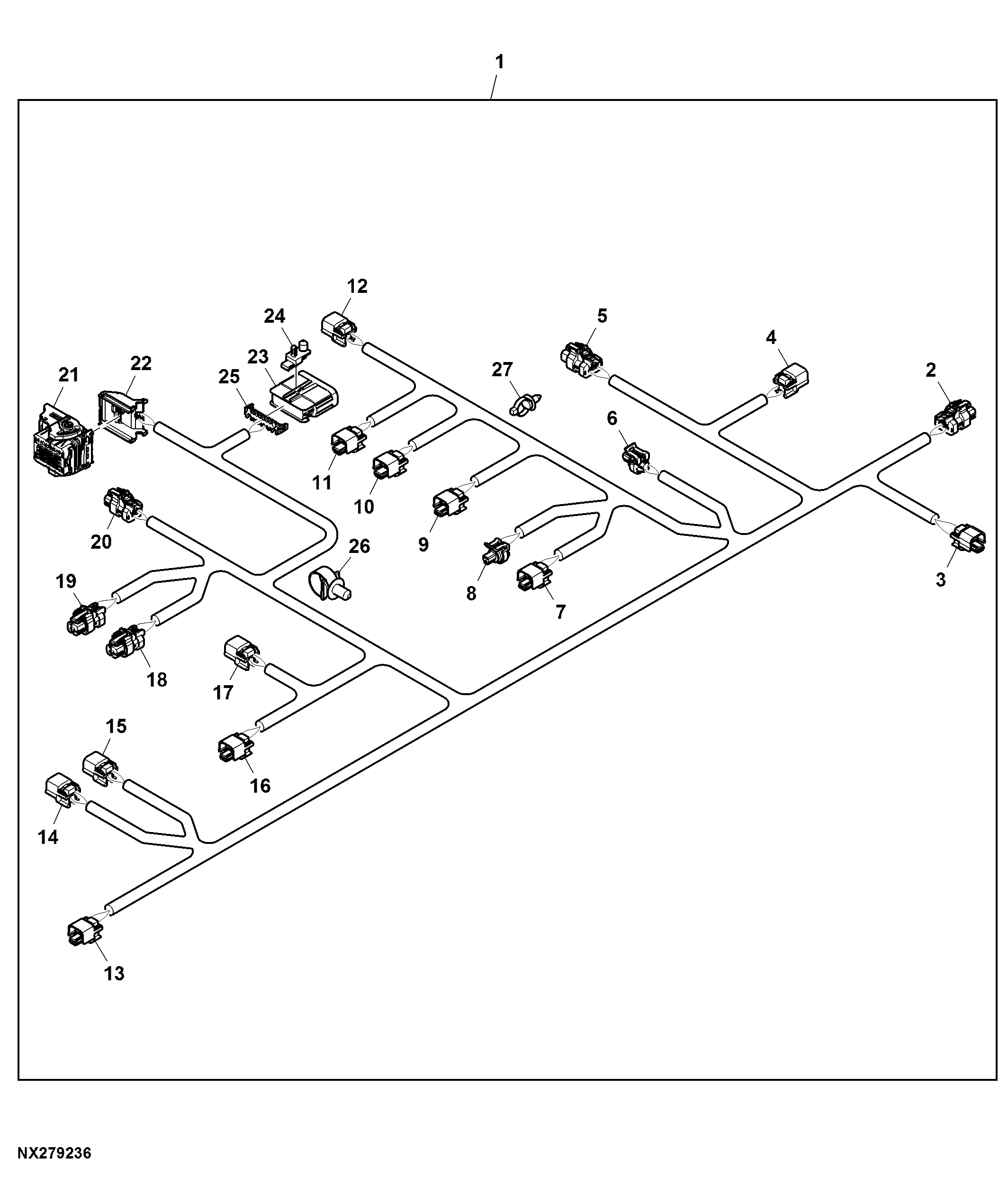

Transmission Harness ( - 208500)

Transmission Harness ( - 208500)

Transmission Harness ( - 208500)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Transmission Harness ( - 208500)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK19205	1	Chassis Wiring Harness	-
2	57M9780	1	Elec. Connector Housing	Secondary Wheel Speed
3	57M8633	1	Elec. Connector Accessory	-
3	57M8924	1	Elec. Connector Housing	Clutch HC
4	57M8924	1	Elec. Connector Housing	Clutch LC
4	57M8633	1	Elec. Connector Accessory	-
5	57M9780	1	Elec. Connector Housing	Primary Wheel Speed
6	57M8625	1	Elec. Connector Housing	Clutch Enable Pressure Sensor
6	57M8624	1	Elec.Connect Locking Device	-
7	57M8924	1	Elec. Connector Housing	Park Supply
7	57M8633	1	Elec. Connector Accessory	-
8	57M8625	1	Elec. Connector Housing	Park Brake Pressure
8	57M8624	1	Elec.Connect Locking Device	-
9	57M8924	1	Elec. Connector Housing	Park Sump Block Sol
9	57M8633	1	Elec. Connector Accessory	-
10	57M9210	1	Elec. Connector Housing	CU Hydro
10	57M8633	1	Elec. Connector Accessory	-
11	57M9210	1	Elec. Connector Housing	RU Hydro
11	57M8633	1	Elec. Connector Accessory	-
12	57M8633	1	Elec. Connector Accessory	-
12	57M9210	1	Elec. Connector Housing	Loop Flush Cutoff
13	57M8924	1	Elec. Connector Housing	Clutch C2 (IVT™)
13	57M8633	1	Elec. Connector Accessory	-
14	57M8924	1	Elec. Connector Housing	Enable Valve Supply
14	57M8633	1	Elec. Connector Accessory	-
15	57M8924	1	Elec. Connector Housing	Clutch RB
15	57M8633	1	Elec. Connector Accessory	-
16	57M8924	1	Elec. Connector Housing	Clutch C1 (IVT™)
16	57M8633	1	Elec. Connector Accessory	-
17	57M8633	1	Elec. Connector Accessory	-
17	57M8924	1	Elec. Connector Housing	Clutch C3 (IVT™)
18	57M9775	1	Elec. Connector Housing	CU Idler Speed
19	57M9775	1	Elec. Connector Housing	Hydro Ring 2
20	57M9775	1	Elec. Connector Housing	Carrier Speed
21	57M10366	1	Elec. Connector Housing	Vehicle Control Unit J3
22	57M10401	1	Elec. Connector Accessory	-
23	57M8281	1	Elec. Connector Housing	Transmission Interconnect
24	57M11407	1	Elec. Connector Accessory	-
25	57M11996	1	Elec. Connector Accessory	-
26	57M10630	6	Clip Kit	-
27	RE258807	11	Tie Band	-
