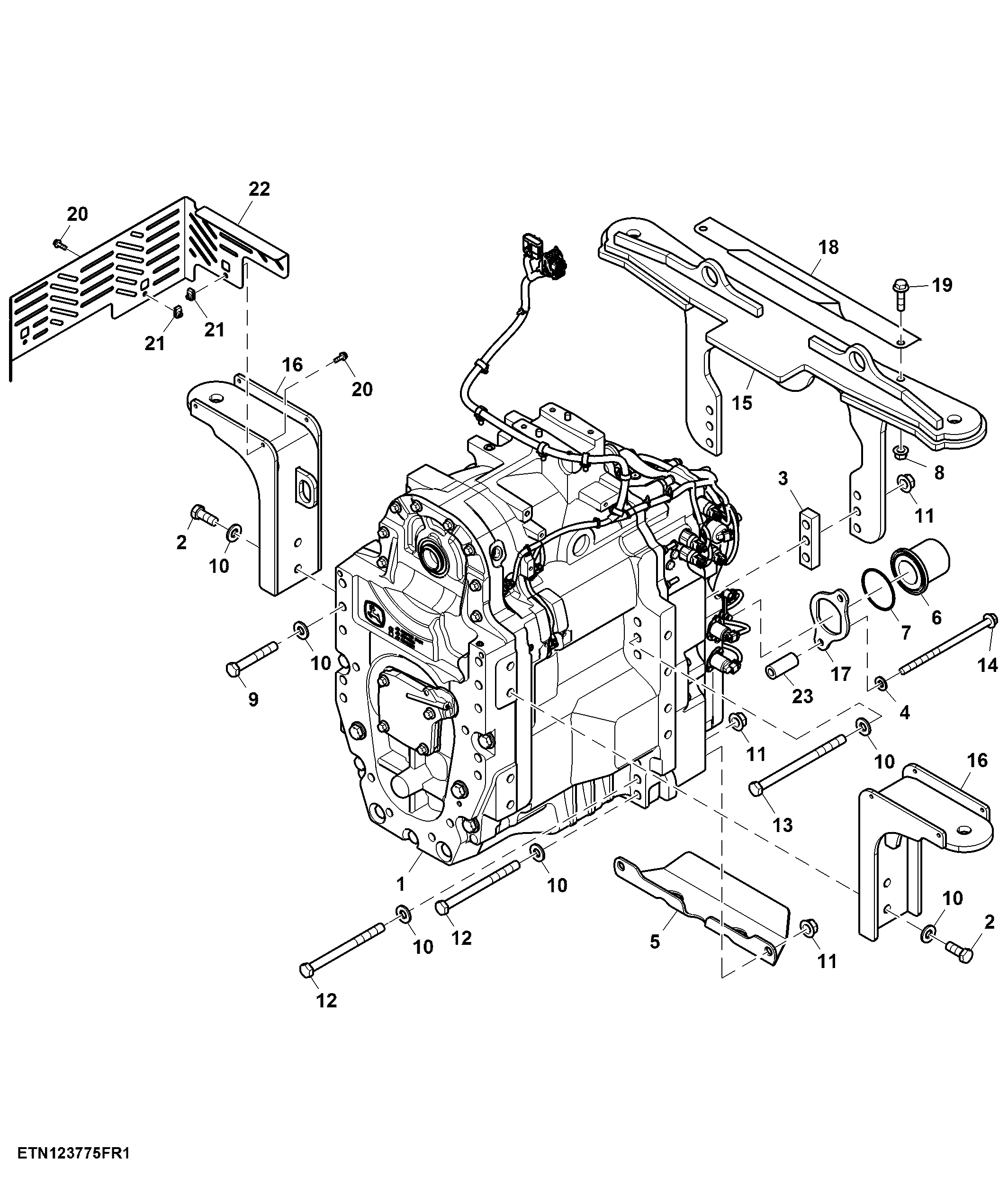

Transmission and Mountings ( - 208500)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RM100077	1	Transmission Reman	REMAN FOR AKK15443; ALSO ORDER AKK19205 AND RE330848
1	AKK15443	1	Transmission	F8 IVT™
2	19M9132	4	Cap Screw	M20 X 50
2	KK54430	4	Cap Screw	M20 X 50, Corrosion Resistance
3	KK27144	2	Spacer	-
4	24H1963	2	Washer	17/32" X 1" X 0.120"
5	KK27517	1	Guard	-
6	KK25104	1	Manifold	-
7	R537824	1	O-Ring	-
8	14M7726	2	Lock Nut	M16
8	KK54782	2	Lock Nut	M16, Corrosion Resistance
9	19M9139	4	Cap Screw	M20 X 130
9	KK54472	4	Cap Screw	M20 X 130, Corrosion Resistance
10	24M7558	20	Washer	21.400 X 42 X 5 mm
10	KK54941	20	Washer	21.400 X 42 X 5 mm (0.843" X 1.654" X 0.197"), Corrosion Resistance
11	14M7652	12	Flange Nut	M20
11	KK54789	12	Flange Nut	M20, Corrosion Resistance
12	19M9348	6	Cap Screw	M20 X 240
12	KK54490	6	Cap Screw	M20 X 240, Corrosion Resistance
13	19M9155	6	Cap Screw	M20 X 280
13	KK54497	6	Cap Screw	M20 X 280, Corrosion Resistance
14	19M10443	2	Screw	M12 X 220
14	KK54347	2	Screw	M12 X 220, Corrosion Resistance
15	AKK19583	1	Frame	-
16	AKK19802	2	Support	-
17	KK29421	1	Bracket	-
18	KK34046	1	Guard	-
19	19M10241	2	Screw	M16 X 60
19	KK54365	2	Screw	M16 X 60, Corrosion Resistance
20	19M9837	3	Screw	M8 X 25
21	M84971	3	Nut	-
22	KK33267	1	Bracket	ORDER KK44986
22	KK44986	1	Bracket	-
23	KK36835	2	Bushing	13.500 X 25 X 57 mm (17/32" X 63/64" X 2.244")

Transmission and Mountings ( - 208500)
