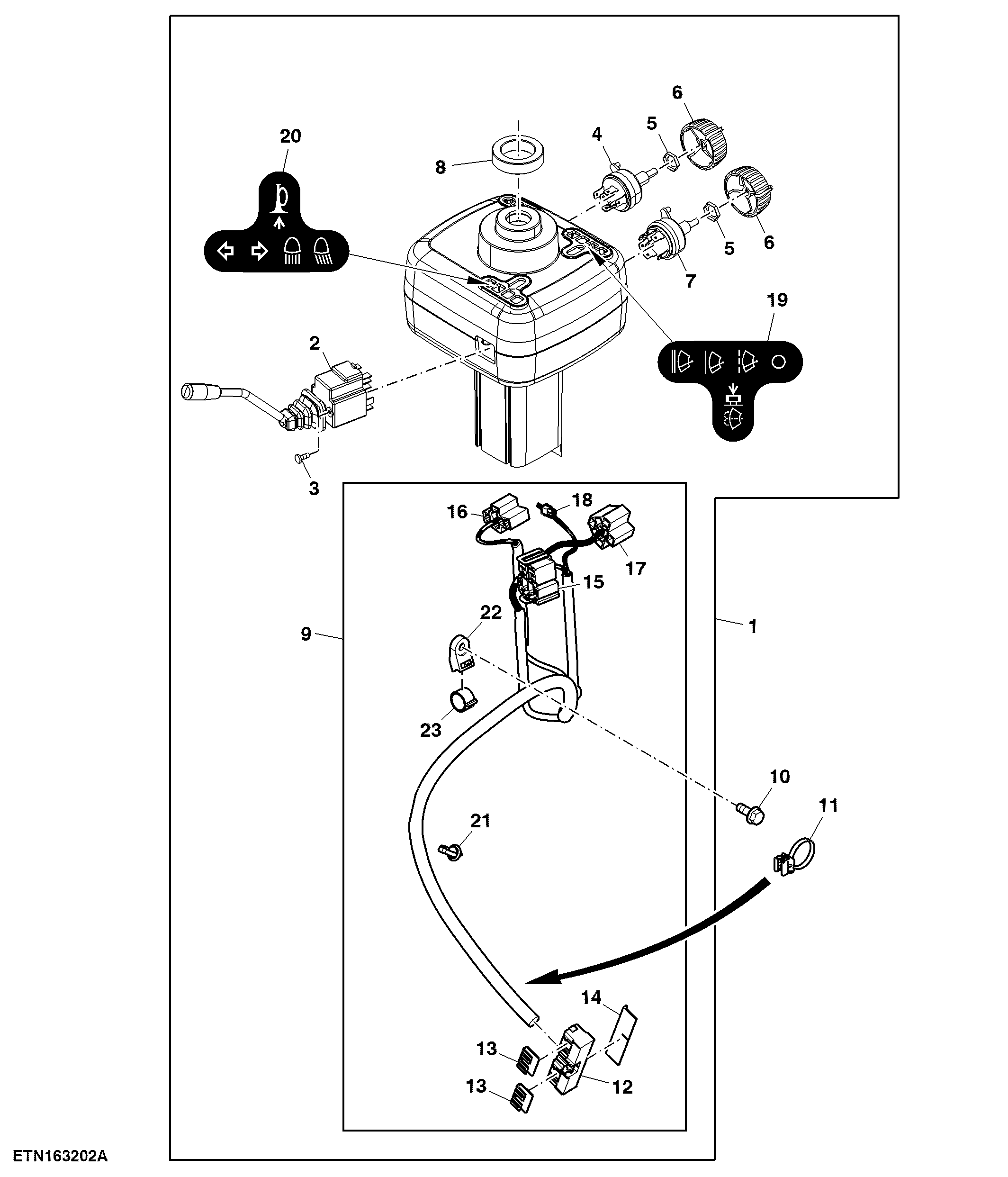

Steering Column Module, W/ RH Reverser

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE583451	1	Module	SUB FOR RE306838
2	RE278352	1	Switch	-
3	21M7495	2	Screw	M4 X 10
4	AL220958	1	Rotary Switch	3 Position Light Switch, Headlights Only
5	R44165	2	Lock Nut	-
5	H204146	2	Nut	-
6	RE271200	2	Knob	-
7	RE46634	1	Switch	-
8	R117220	1	Washer	-
9	RE579652	1	Turn Signal Wiring Harness	SUB FOR RE320202
10	19M7866	1	Screw	M8 X 20
11	AH225363	1	Clip	-
12	57M8912	1	Elec. Connector Terminal	-
12	57M8913	13	Elec. Connector Terminal	-
12	57M8858	1	Elec. Connector Housing	Front Console to Steering Column Harness Interconnect
13	57M8859	2	Elec.Connect Locking Device	-
14	57M8860	1	Elec.Connect Locking Device	-
15	57M9668	1	Elec. Connector Housing	Turn Signal Switch Assembly
15	57M13083	8	Elec. Connector Terminal	-
16	57M8758	1	Elec. Connector Housing	Road Light Switch
16	57M8757	1	Elec.Connect Locking Device	-
17	RE46735	1	Electrical Connector Assy	Front Wiper Switch
18	57M11510	1	Elec. Connector Housing	Inverter Backlighting Steering Column
18	57M8609	3	Elec. Connector Terminal	-
19	R272799	1	Label	Wiper Switch
20	R272797	1	Label	Turn Signal
21	RE258807	1	Tie Band	-
22	57M11799	1	Clip	-
23	57M11953	1	Elec. Connector Accessory	-

Steering Column Module, W/ RH Reverser
