Открытый узел

Roof Wiring Harness, Outer Light (188001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE574956	1	Wiring Harness	Roof Wiring Harness
2	R78053	1	Electrical Connector Assy	Beacon Light
2	R78059	2	Elec. Connector Seal	Cavity A, B
2	R78061	2	Elec. Connector Terminal	Cavity A, B
3	57M9555	1	Clip	-
4	57M10332	1	Elec. Connector Terminal	Cavity A
4	57M11959	1	Elec. Connector Seal	Cavity A
4	57M10331	8	Elec. Connector Terminal	Cavity 2,6,17,18,29,30,42,53
4	57M11973	3	Elec. Connector Seal	Cavity 3,4,5
4	57M10217	2	Elec. Connector Terminal	Cavity 4,5
4	57M10330	9	Elec. Connector Terminal	Cavity 7,8,9,10,12,13,15,16,31
4	57M10617	1	Elec. Connector Housing	Cavity 41
4	57M10366	1	Elec. Connector Housing	MECA Roof Controller
5	57M10401	1	Elec. Connector Accessory	-
6	57M10367	1	Elec. Connector Housing	MECA Roof Controller
6	57M10217	5	Elec. Connector Terminal	Cavity 1,2,3,4,5
6	57M11973	5	Elec. Connector Seal	Cavity 1,2,3,4,5
6	57M10617	2	Elec. Connector Housing	Cavity 6,30
6	57M10330	13	Elec. Connector Terminal	Cavity 16,20,25,28,31,32,35,38,43,48,49,50,51
6	57M10331	6	Elec. Connector Terminal	Cavity 17,18,29,41,42,53
7	57M10401	1	Elec. Connector Accessory	-
8	57M7255	1	Elec. Connector Housing	Right Front Clearance Light
8	R104846	3	Elec. Connector Terminal	Cavity A,B,C
8	57M9215	3	Elec. Connector Seal	-
8	57M7317	1	Elec. Connector Accessory	-
9	57M8839	1	Elec. Connector Housing	Right Midbody Flood
9	57M7491	2	Elec. Connector Terminal	-
9	R78059	2	Elec. Connector Seal	-
9	57M8129	1	Elec. Connector Terminal	-
10	R78053	1	Electrical Connector Assy	Beacon Light
10	R78061	2	Elec. Connector Terminal	Cavity A, B
10	R78059	2	Elec. Connector Seal	-
10	57M9555	1	Clip	-
11	RE258807	1	Tie Band	-
12	57M9229	1	Clip	-
13	57M10421	1	Elec. Connector Accessory	-
14	57M11650	1	Elec. Connector Housing	Right Hand Wiper Motor
14	57M8602	4	Elec. Connector Terminal	Cavity A,B,D,E
14	57M8321	4	Elec. Connector Terminal	Cavity A,B,D,E
15	57M8839	1	Elec. Connector Housing	Right Front Side Flood
15	57M7878	2	Elec. Connector Terminal	Cavity A, B
15	R78059	2	Elec. Connector Seal	-
16	57M8839	1	Elec. Connector Housing	Right Front Corner Light
16	57M7297	2	Elec. Connector Terminal	Cavity A, B
16	57M10915	2	Elec. Connector Accessory	Cavity A, B
16	57M8129	1	Elec. Connector Terminal	-
17	57M11650	1	Elec. Connector Housing	Front Wiper Motor
17	57M8602	5	Elec. Connector Terminal	Cavity A,B,C,D,E
17	57M8321	5	Elec. Connector Terminal	Cavity A,B,C,D,E
18	N282070	1	Elec. Connector Terminal	Cavity 5
18	57M8009	1	Elec.Connect Locking Device	-
18	57M9071	1	Elec. Connector Housing	Cap
19	57M8271	1	Electrical Connector Assy	Loader Lights Inline
19	57M7878	1	Elec. Connector Terminal	Cavity A
19	R104923	5	Elec. Connector Terminal	Cavity B,C,D,E,F
19	57M7592	1	Elec. Connector Terminal	Cavity G
19	57M8328	1	Electrical Connector Assy	-
19	57M9555	1	Clip	-
20	57M9229	1	Clip	-
21	57M8839	1	Elec. Connector Housing	Left Front Corner Light
21	57M7297	2	Elec. Connector Terminal	Cavity A, B
21	57M10915	2	Elec. Connector Accessory	Cavity A, B
21	57M8129	1	Elec. Connector Terminal	-
22	57M7317	1	Elec. Connector Accessory	-
22	R104846	2	Elec. Connector Terminal	Cavity A,B,C
22	57M7255	1	Elec. Connector Housing	Left Front Clearance Light
22	57M9215	2	Elec. Connector Seal	-
23	57M7491	2	Elec. Connector Terminal	Cavity A, B
23	R78059	2	Elec. Connector Seal	-
23	57M8129	1	Elec. Connector Terminal	-
23	57M8839	1	Elec. Connector Housing	Left Midbody Flood
24	57M11798	1	Elec. Connector Accessory	Implement can
24	R104846	4	Elec. Connector Terminal	Cavity B,D,E,F
24	57M7258	4	Elec. Connector Seal	-
25	57M7260	1	Elec. Connector Housing	-
25	57M7291	1	Electrical Connector Assy	-
26	57M11352	1	Elec. Connector Housing	AC Connector
26	57M10106	13	Elec. Connector Terminal	Cavity A7,A8,B1,B3,B4,B10,B11,C1,C2,C3,C4,D7,D8
26	57M10107	1	Elec. Connector Terminal	Cavity A5
26	57M12012	13	Elec. Connector Terminal	Cavity A1,A2,B5,B6,B7,B8,B9,C8,C9,C11,C12,D1,D2
27	57M11796	1	Elec. Connector Accessory	-
28	57M8865	2	Elec. Connector Terminal	Roof Ground
29	57M8839	1	Elec. Connector Housing	Right Front Side Flood
29	57M8129	1	Elec. Connector Terminal	-
29	57M7297	1	Elec. Connector Terminal	Cavity B
29	57M10915	2	Elec. Connector Accessory	Cavity A, B
29	57M7491	1	Elec. Connector Terminal	Cavity A
30	57M8839	1	Elec. Connector Housing	Right Rear Corner Light
30	57M7297	2	Elec. Connector Terminal	Cavity A, B
30	57M10915	2	Elec. Connector Accessory	Cavity A, B
30	57M8129	1	Elec. Connector Terminal	-
31	57M8839	1	Elec. Connector Housing	Right Rear Inner Flood
31	57M7878	2	Elec. Connector Terminal	Cavity A, B
31	R78059	2	Elec. Connector Seal	-
31	57M8129	1	Elec. Connector Terminal	-
32	57M9712	1	Elec. Connector Accessory	-
32	R104846	2	Elec. Connector Terminal	Cavity A, B
32	57M7254	1	Elec. Connector Housing	Left Licence Plate Light
32	57M9215	2	Elec. Connector Seal	-
33	57M7254	1	Elec. Connector Housing	Right Licence Plate Light
33	R104846	2	Elec. Connector Terminal	Cavity A, B
33	57M9215	2	Elec. Connector Seal	-
33	57M9712	1	Elec. Connector Accessory	-
34	57M11650	1	Elec. Connector Housing	Rear Wiper Motor
34	57M8602	2	Elec. Connector Terminal	Cavity B,E
34	57M8321	2	Elec. Connector Terminal	Cavity B,E
35	57M8839	1	Elec. Connector Housing	Left Rear Inner Flood
35	57M7491	2	Elec. Connector Terminal	Cavity A, B
35	R78059	2	Elec. Connector Seal	-
35	57M8129	1	Elec. Connector Terminal	-
36	R78059	2	Elec. Connector Seal	-
36	57M8129	1	Elec. Connector Terminal	-
36	57M7297	2	Elec. Connector Terminal	Cavity A, B
36	57M8839	1	Elec. Connector Housing	Left Rear Corner Light
37	57M8839	1	Elec. Connector Housing	Left Rear Side Flood
37	57M7491	2	Elec. Connector Terminal	Cavity A, B
37	57M10915	2	Elec. Connector Accessory	Cavity A, B
37	57M8129	1	Elec. Connector Terminal	-
38	57M8839	1	Elec. Connector Housing	Left Front Side Flood
38	57M7297	2	Elec. Connector Terminal	Cavity A, B
38	57M10915	2	Elec. Connector Accessory	Cavity A, B
38	57M8129	1	Elec. Connector Terminal	-
39	57M9228	1	Elec. Connector Housing	Global Position Sensor
39	57M8164	3	Elec. Connector Terminal	Cavity 1,4,9
39	N282068	1	Elec. Connector Terminal	Cavity 5
39	N282069	3	Elec. Connector Terminal	Cavity 6,7,12
39	57M9069	1	Elec. Connector Housing	-
39	57M7682	1	Elec.Connect Locking Device	-

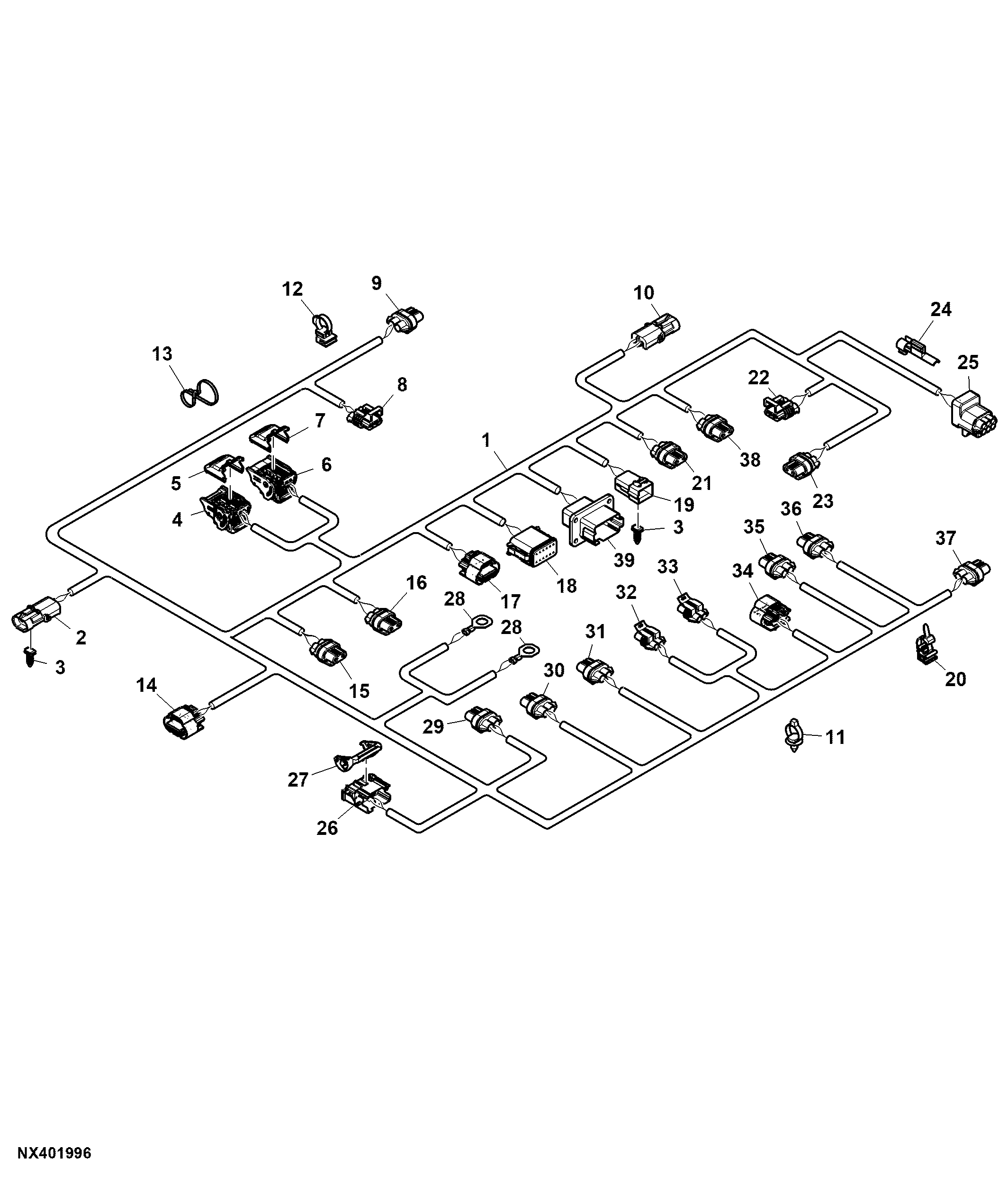

Roof Wiring Harness, Outer Light (188001 - )
