Roof Wiring Harness Common , Inner/ Outer (188001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE587087	1	Roof Wiring Harness	-
2	57M11351	1	Elec. Connector Housing	Cab Inline Connector
2	57M11242	1	Elec. Connector Accessory	-
2	57M11243	14	Elec. Connector Terminal	Cavity A7,A8,B1,B3,B4,B10,B11,C1,C2,C4,C8,C9,C10,D1,D2
2	57M10110	2	Elec. Connector Terminal	Cavity A3,A5
2	57M10111	2	Elec. Connector Terminal	Cavity A4,D5
2	57M10113	15	Elec. Connector Terminal	Cavity A7,A8,B1,B3,B4,B10,B11,C1,C2,C4,C8,C9,C10,D1,D2
3	RE258807	1	Tie Band	-
4	57M8843	1	Elec. Connector Housing	Business Band Device
4	57M7725	1	Electrical Connector Assy	-
4	57M7500	3	Elec. Connector Terminal	Cavity A,B,C
5	57M8206	1	Elec. Connector Housing	Electric Water Valve
6	57M11351	1	Elec. Connector Housing	Roof Connector
6	57M11242	1	Elec. Connector Accessory	-
6	57M11243	17	Elec. Connector Terminal	Cavity A1,A2,A7,A8,B4,B5,B6,B7,B8,B9,C8,C9,C11,C12,D1,D2,D8
6	57M10110	1	Elec. Connector Terminal	Cavity A5
6	57M10113	8	Elec. Connector Terminal	Cavity B1,B3,B10,B11,C1,C2,C3,C4
7	57M8924	1	Elec. Connector Housing	Roof Temp Sensor
7	57M8633	1	Elec. Connector Accessory	-
7	57M8560	2	Elec. Connector Terminal	Cavity A,B
7	57M8566	1	Elec. Connector Seal	-
8	57M7729	1	Electrical Connector Assy	-
8	57M9189	5	Elec. Connector Terminal	Cavity A,B,C,D,E
8	57M7790	1	Electrical Connector Assy	Right Hand Wiper Switch
9	57M7790	1	Electrical Connector Assy	Rear Wiper
9	57M7729	1	Electrical Connector Assy	-
9	57M9189	5	Elec. Connector Terminal	Cavity A,B,C,D,E
10	57M9776	1	Elec. Connector Housing	Tractor Can Terminating Device
10	57M9813	2	Elec. Connector Terminal	Cavity 1,2
11	57M8612	1	Elec. Connector Housing	Cab Temp Sensor
11	57M8633	1	Elec. Connector Accessory	-
11	57M8560	2	Elec. Connector Terminal	Cavity A,B
11	57M8566	2	Elec. Connector Seal	-
12	57M8719	5	Elec. Connector Terminal	Cavity 1,2,3,5,6
12	57M8933	1	Elec. Connector Housing	Air Mode Actuator
13	57M8761	1	Elec. Connector Housing	Dome Lamp Switch
13	57M10980	3	Elec. Connector Terminal	Cavity 2,3,4
14	57M8549	1	Elec. Connector Housing	Control Head
14	57M8719	19	Elec. Connector Terminal	Cavity 5,6,8,9,11,14,15,16,18,19,20,21,22,23,24,25,27,31,32
15	57M8721	1	Elec. Connector Accessory	-
16	57M9127	1	Elec. Connector Terminal	Radio Connector
16	57M12009	11	Elec. Connector Terminal	Cavity A1,A3,A4,B1,B2,B3,B4,B5,B6,B7,B8
16	57M10226	2	Elec. Connector Terminal	Cavity A5,A7
17	57M7256	1	Elec. Connector Housing	Power Mirror Inline
17	57M7258	2	Elec. Connector Seal	-
17	57M9712	1	Elec. Connector Accessory	-
17	57M7252	2	Elec. Connector Terminal	Cavity A,B
18	57M8910	1	Clip	-
19	57M8174	1	Elec. Connector Housing	Right Rear Speaker
19	57M7724	1	Electrical Connector Assy	-
19	57M8293	2	Elec. Connector Terminal	Cavity A,B
20	57M8174	1	Elec. Connector Housing	Left Rear Speaker
20	57M7724	1	Electrical Connector Assy	-
20	57M8293	2	Elec. Connector Terminal	Cavity A,B
21	57M7285	2	Elec. Connector Terminal	Cavity A,B
21	57M9218	2	Elec. Connector Seal	-
21	57M9555	1	Clip	-
21	57M8129	1	Elec. Connector Terminal	-
21	57M8958	1	Elec. Connector Housing	Pressurizer Blower Motor
22	57M8174	1	Elec. Connector Housing	Right Front Speaker
22	57M7724	1	Electrical Connector Assy	-
22	57M8293	2	Elec. Connector Terminal	Cavity A,B
23	57M7254	1	Elec. Connector Housing	Evaporator Temp Sensor
23	57M9712	1	Elec. Connector Accessory	-
23	57M7494	2	Elec. Connector Terminal	Cavity A,B
24	57M8560	3	Elec. Connector Terminal	Cavity 1,2,3
24	57M8624	1	Elec.Connect Locking Device	-
24	57M8625	1	Elec. Connector Housing	Refrigerant Pressure Sensor
25	57M8612	1	Elec. Connector Housing	Duct And Case Temp Sensor
25	57M8633	1	Elec. Connector Accessory	-
25	57M8560	2	Elec. Connector Terminal	Cavity A,B
25	57M8566	2	Elec. Connector Seal	-
26	57M8174	1	Elec. Connector Housing	Left Front Speaker
26	57M7724	1	Electrical Connector Assy	-
26	57M8293	2	Elec. Connector Terminal	Cavity A,B
27	57M8809	1	Elec. Connector Terminal	Left Hand Door Switch
27	57M9199	1	Elec. Connector Terminal	Cavity 1
28	U46662	1	Elec. Connector Terminal	Left Hand Door Switch (Ground)
28	57M9199	1	Elec. Connector Terminal	Cavity 1
29	57M11639	1	Elec. Connector Accessory	-
30	57M12241	1	Elec. Connector Housing	-
30	57M12294	2	Elec. Connector Terminal	Cavity 1,3
30	57M12296	2	Elec. Connector Seal	-
30	57M12295	1	Elec. Connector Terminal	Cavity 2
30	57M12297	1	Elec. Connector Seal	Motor Driver
31	57M11134	1	Elec. Connector Housing	-
32	57M8865	1	Elec. Connector Terminal	-

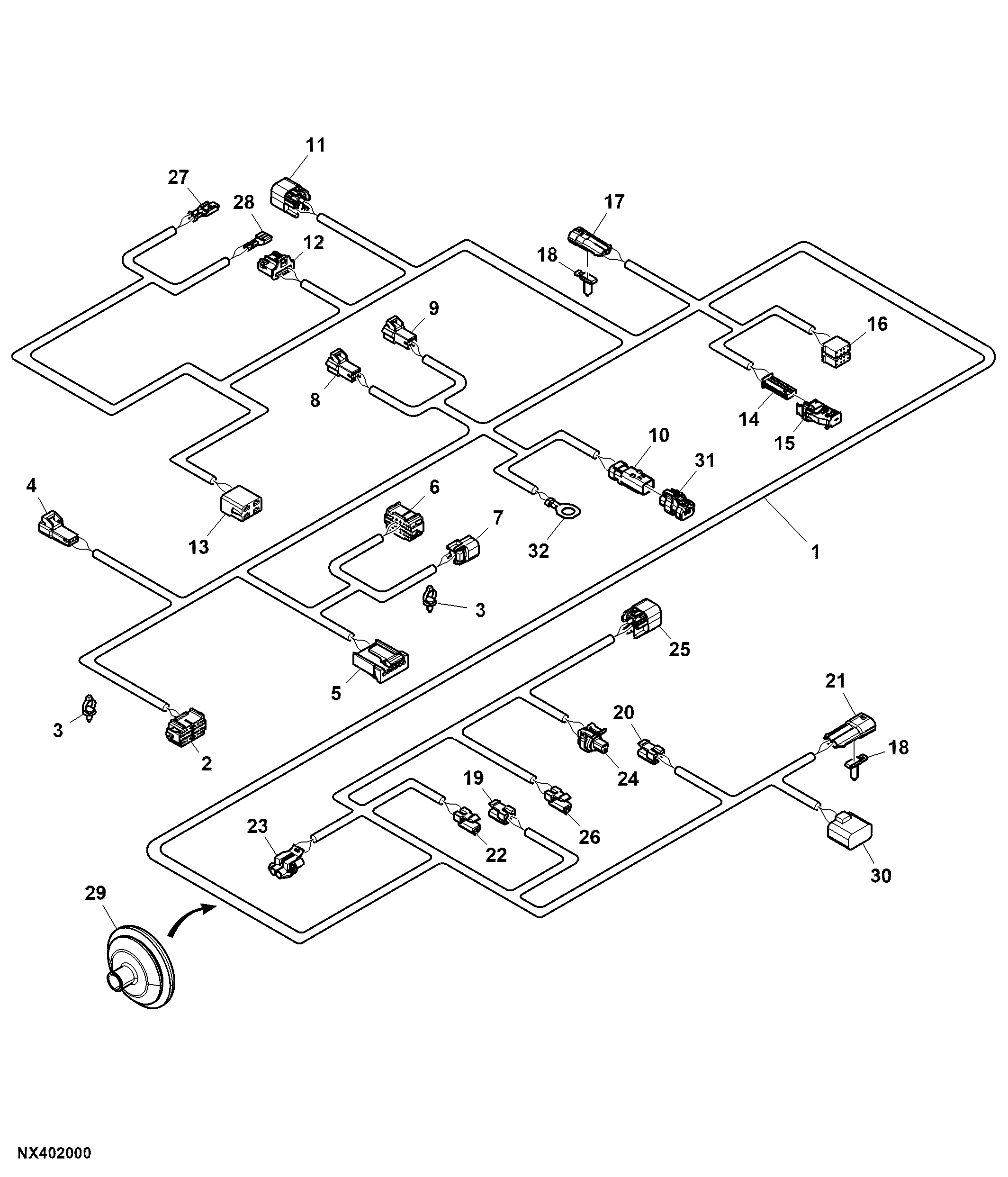

Roof Wiring Harness Common , Inner/ Outer (188001 - )
