Открытый узел

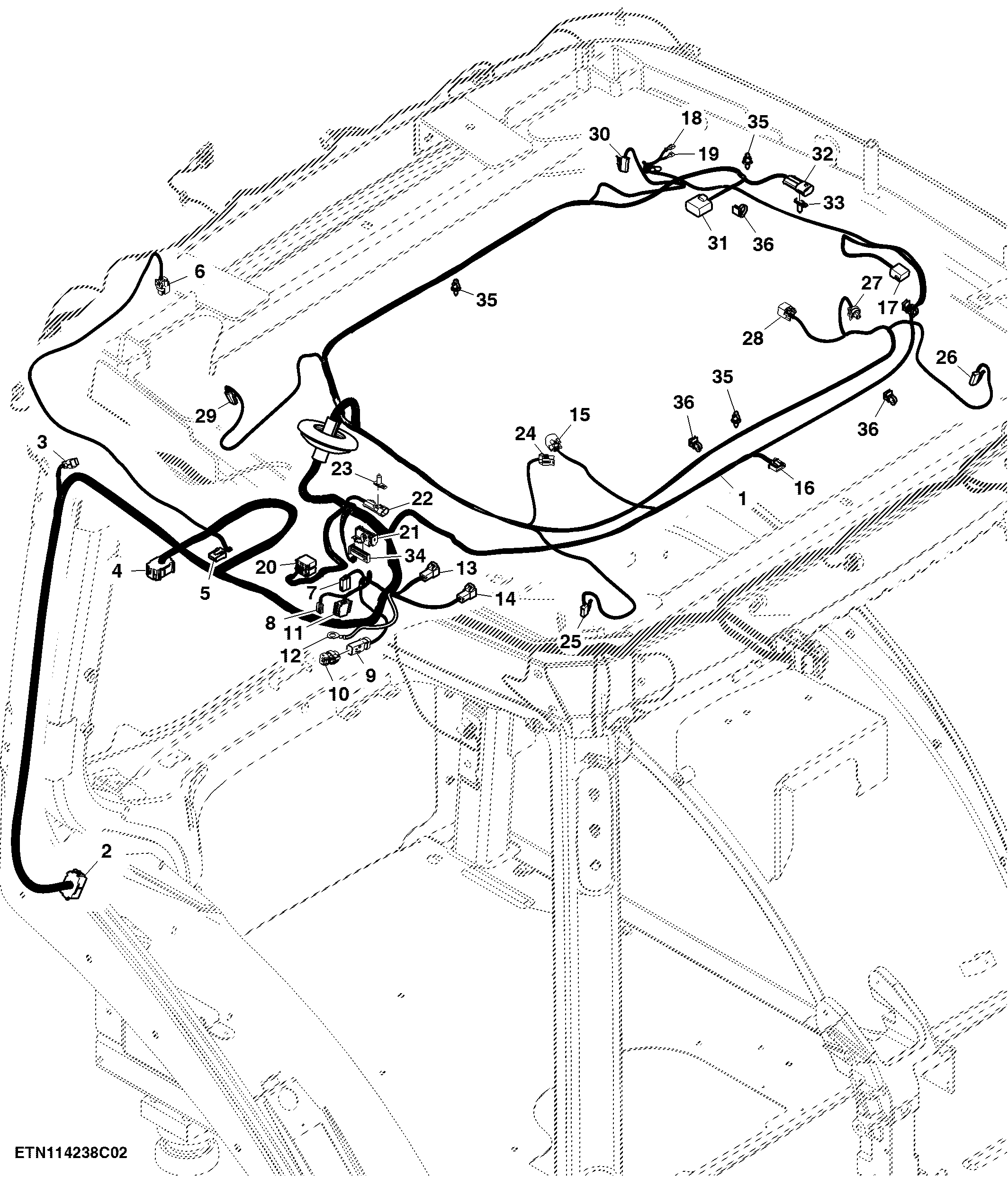

Roof Wiring Harness, (2/2) ( - 188000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE581901	1	Roof Wiring Harness	-
1	RE575170	1	Roof Wiring Harness	-
1	RE587087	1	Roof Wiring Harness	-
2	57M11351	1	Elec. Connector Housing	Cab Inline Connector
2	RWA10648	15	Repair Wire Assembly	-
2	RWA10620	2	Repair Wire Assembly	Cavity A5, A3
2	RWA10621	2	Repair Wire Assembly	Cavity A4, D5
2	57M11242	1	Elec. Connector Accessory	-
3	57M8843	1	Elec. Connector Housing	Business Band Device
3	57M7725	1	Electrical Connector Assy	-
4	57M11351	1	Elec. Connector Housing	Roof Connector
4	57M11242	1	Elec. Connector Accessory	-
4	RWA10648	10	Repair Wire Assembly	Cavity D7, B3, B10, C4, B11, B4, C3, C1, C2, B1
4	RWA10620	1	Repair Wire Assembly	Cavity A5
5	57M8206	1	Elec. Connector Housing	Electric Water Valve
6	RWA10703	2	Repair Wire Assembly	Cavity A, B
6	57M8633	1	Elec. Connector Accessory	-
6	57M8924	1	Elec. Connector Housing	Roof Temperature Sensor
7	57M11177	1	Elec. Connector Housing	Map Light
8	-	1	Part 20	Console Light
9	57M9776	1	Elec. Connector Housing	Tractor Can Terminating Device
9	RWA10616	2	Repair Wire Assembly	Cavity 1, 2
10	57M11134	1	Elec. Connector Housing	-
11	57M8033	1	Elec. Connector Housing	RHC Lamp Switch
12	57M8865	1	Elec. Connector Terminal	Chassis Ground
13	57M7790	1	Electrical Connector Assy	Right Hand Wiper Switch
14	57M7790	1	Electrical Connector Assy	Rear Wiper
15	57M8612	1	Elec. Connector Housing	Cab Temperature Sensor
15	57M8633	1	Elec. Connector Accessory	-
15	RWA10703	2	Repair Wire Assembly	Cavity A, B
16	57M8933	1	Elec. Connector Housing	HVAC Air Mode Actuator
17	57M8761	1	Elec. Connector Housing	Dome Lamp Switch
18	RWA10678	1	Repair Wire Assembly	Cavity 1
18	57M9199	1	Elec. Connector Terminal	LH Door Switch (Power)
19	57M9199	1	Elec. Connector Terminal	LH Door Switch (Ground)
19	RWA10678	1	Repair Wire Assembly	Cavity 1
20	57M9127	1	Elec. Connector Terminal	Radio Connector
21	57M8721	1	Elec. Connector Accessory	-
22	RWA10714	2	Repair Wire Assembly	Cavity A, B
22	57M7289	1	Elec.Connect Locking Device	-
22	57M7256	1	Elec. Connector Housing	Power Mirror Inline
23	57M8910	1	Clip	-
24	57M7254	1	Elec. Connector Housing	Evaporator Temperature Sensor
24	57M7289	1	Elec.Connect Locking Device	-
24	RWA10689	2	Repair Wire Assembly	Cavity A, B
25	57M9669	1	Elec. Connector Housing	Right Front Speaker
26	57M9669	1	Elec. Connector Housing	Left Front Speaker
27	57M8625	1	Elec. Connector Housing	Refrigerant Pressure Sensor
27	RWA10703	3	Repair Wire Assembly	Cavity 1, 3, 2
27	57M8624	1	Elec.Connect Locking Device	-
28	57M8612	1	Elec. Connector Housing	Duct and Case Temperature Sensor
28	57M8633	1	Elec. Connector Accessory	-
28	RWA10703	2	Repair Wire Assembly	Cavity A, B
29	57M9669	1	Elec. Connector Housing	Right Rear Speaker
30	57M9669	1	Elec. Connector Housing	Left Rear Speaker
31	-	1	Part 56	PWM Motor
32	57M8958	1	Elec. Connector Housing	Pressurizer Blower Motor
32	57M8129	1	Elec. Connector Terminal	-
33	57M9555	1	Clip	-
34	57M8549	1	Elec. Connector Housing	Control Head
35	RE258807	16	Tie Band	-
36	57M9229	8	Clip	-

Roof Wiring Harness, (2/2) ( - 188000)
