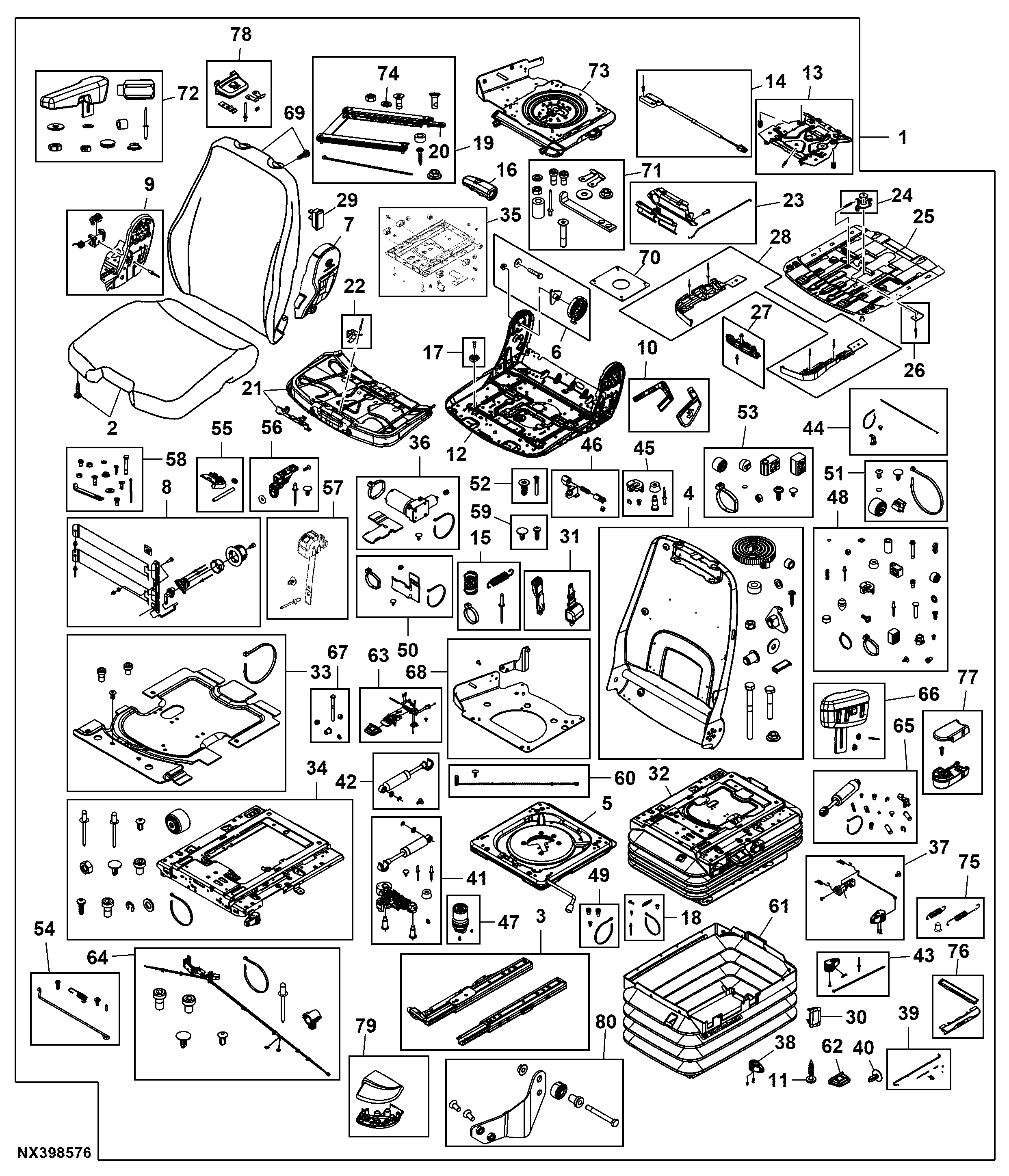

Premium Operator Seat, Leather

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE594528	1	Seat Assembly	-
1	RE582557	1	Seat Assembly	-
2	RE592923	1	Cushion Kit	-
3	RE592927	1	Seat Slide Track Kit	USE WITH RE582557
4	RE592924	1	Seat Kit	Backrest
5	RE592933	1	Seat Kit	Swivel USE WITH RE582557
6	AL210885	1	Mounting Parts	Backrest
7	AXE39817	1	Cover	-
8	AL210471	1	Support Kit	-
9	AL117357	1	Support	-
10	AL210447	1	Lever Kit	-
10	AL210479	1	Spindle Kit	-
11	AL210871	1	Package Of Parts	Cushion
12	AL210488	1	Plate	-
13	AL210449	1	Compensator	INCLUDES AL210872
14	AL210457	1	Switch	INCLUDES AL210872
15	AL210872	1	Package Of Parts	Seat Switch
16	AL210873	1	Grip	USE WITH RE582557
17	AL210874	1	Guide Kit	-
18	AL210876	1	Package Of Parts	Seat Adjustment
19	RE334539	1	Isolator Kit	USE WITH RE582557
20	AL210472	1	Handle Kit	Lumbar
20	AL210875	1	Handle	Lateral USE WITH RE582557
21	AL210450	1	Adjuster Kit	-
22	AL210883	1	Leaf Spring	-
23	AL210451	1	Control Kit	-
24	AL117352	1	Lever	INCLUDES AL210877
25	AL210453	1	Adjuster Kit	INCLUDES AL210876
26	AL210884	1	Leaf Spring	-
27	AL117444	1	Grip	-
28	AL117443	1	Shield	-
29	AXE42040	1	Seat Suspension	Back Rest
30	AXE61863	1	Package Of Parts	-
31	RE334549	1	Seat Belt	-
32	RE592840	1	Seat Suspension	-
33	AL210497	1	Shield Kit	-
34	AL210498	1	Seat Suspension	Upper
35	AL210501	1	Seat Suspension	Ground Plate
36	AL210503	1	Compressor Kit	-
37	AL210506	1	Detent Kit	-
38	AL210507	1	Handle Kit	Longitudinal
39	AL210509	1	Hose	-
40	AL210512	1	Mounting Parts	Boot
41	AL210537	1	Isolator Kit	-
42	AL210538	1	Absorber	-
43	AL210541	1	Handle	-
44	AL210542	1	Push Pull Cable	-
45	AL210543	1	Package Of Parts	Longitudinal
46	AL210888	1	Adjuster	-
47	AL210889	1	Spring	-
48	AL210891	1	Repair Kit	-
49	AL210893	1	Package Of Parts	Shield
50	AL210894	1	Package Of Parts	Compressor
51	AL210895	1	Package Of Parts	Upper Suspension
52	AL210896	1	Package Of Parts	Air Spring
53	AL210897	1	Package Of Parts	Lower Suspension
54	AL210898	1	Package Of Parts	Longitudinal
55	AL210899	1	Package Of Parts	Air Hose
56	AL210900	1	Package Of Parts	-
57	AXE47928	1	Indicator	-
58	AXE60831	1	Hardware Kit	-
59	AL210901	1	Package Of Parts	Height Adjustment
60	RE334557	1	Adapter Kit	Adapter Seat Harness Kit
61	AL210502	1	Boot	-
62	AL210522	1	Handle	Height Adjustment
63	AL210510	1	Control Kit	-
64	AL210534	1	Wiring Harness	-
65	AL210544	1	Seat Shock Absorber Kit	-
66	RE592926	1	Armrest Kit	USE WITH RE582557
67	RE592925	1	Seat Kit	-
68	RE592928	1	Seat Kit	USE WITH RE582557
69	RE592922	1	Cushion Kit	-
70	RE592932	1	Seat Kit	USE WITH RE594528
71	AXE63787	1	Mounting Parts	USE WITH RE594528
72	RE334550	1	Armrest Kit	USE WITH RE594528
73	RE592931	1	Seat Kit	USE WITH RE594528
74	AL151004	1	Absorber Kit	-
75	AL210877	1	Package Of Parts	Seat Adjustment
76	AL226404	1	Cover	USE WITH RE594528
77	AL219141	1	Handle	USE WITH RE594528
78	AL219140	1	Handle	USE WITH RE594528
79	AL226403	1	Handle	USE WITH RE594528
80	AL219149	1	Support	USE WITH RE594528
