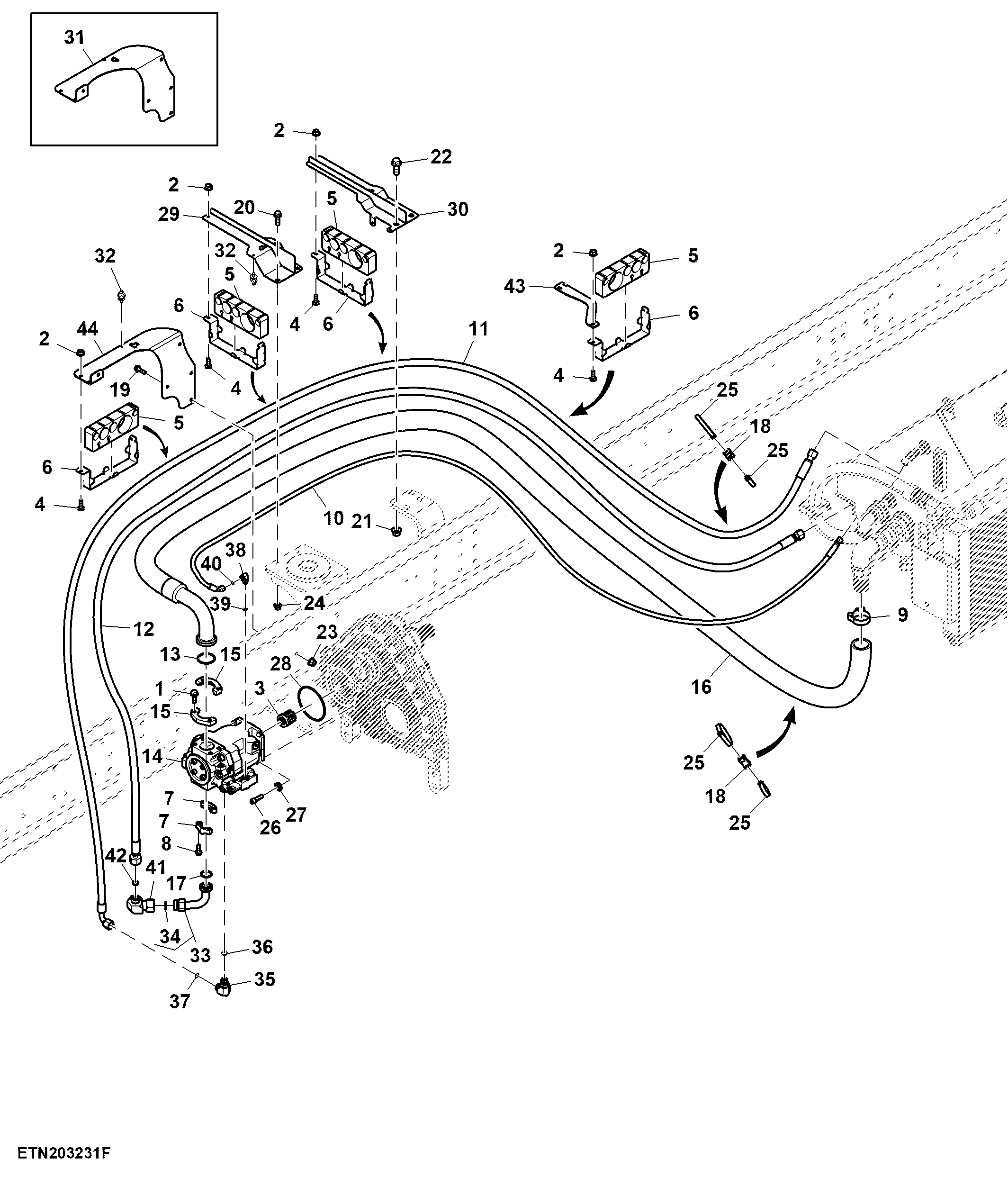

Hydraulic Pump, Primary Hose Routing and Mounting (198001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	KK54295	4	Screw	M12 X 35
1	19M9984	4	Screw	M12 X 35
2	KK54763	5	Flange Nut	M8
2	14M7649	5	Flange Nut	M8
3	4028056	1	Splined Coupling	-
4	03M7413	5	Bolt	M8 X 25
4	KK54660	5	Bolt	M8 X 25
5	KK66820	5	Clamp	-
6	KK27402	5	Bracket	-
7	H61354	2	Flange Fitting	-
8	19M9370	4	Screw	M10 X 30
8	KK54209	4	Screw	M10 X 30
9	AN209544	1	Hose Clamp	-
10	AKK30024	1	Hydraulic Hose	LH Hose Drybox
11	AKK18333	1	Hydraulic Hose	Case Hose Drybox
12	AKK30023	1	Hydraulic Hose	Pressure Hose Drybox
13	F1870R	1	O-Ring	-
14	AKK18289	1	Hydraulic Pump	90 cc
15	R37023	2	Flange Fitting	-
16	AKK18331	1	Hydraulic Hose	Suction Hose Drybox
17	U12037	1	O-Ring	-
18	AN209168	7	Swivel	-
19	19M9986	2	Screw	M10 X 35
19	KK54215	2	Screw	M10 X 35
20	19M9985	2	Screw	M12 X 40
20	KK54298	2	Screw	M12 X 40
21	KK54782	2	Lock Nut	M16
21	14M7726	2	Lock Nut	M16
22	19M9855	2	Screw	M16 X 45
22	KK54360	2	Screw	M16 X 45
23	14M7723	2	Lock Nut	M10
23	KK54768	2	Lock Nut	M10
24	14M7724	2	Lock Nut	M12
24	KK54775	2	Lock Nut	M12
25	H113197	3	Tie Band	-
26	19M10869	4	Cap Screw	M12 X 40
27	24M7623	4	Washer	13 X 24 X 2.500 mm
27	KK54921	4	Washer	13 X 24 X 2.500 mm (0.512" X 0.945" X 0.098")
28	F37030250	1	O-Ring	-
29	AKK20112	1	Support	-
30	AKK20111	1	Support	-
31	KK33040	1	Bracket	ORDER KK66818
32	RE258807	4	Tie Band	-
33	AT435922	1	Oil Tube	-
34	T76938	1	O-Ring	-
35	38H5335	1	Elbow Fitting	-
36	51M7045	1	O-Ring	19.300 X 2.200 mm
37	T77932	2	O-Ring	-
38	38H5329	1	Elbow Fitting	-
39	51M7040	1	O-Ring	9.300 X 2.200 mm
40	T77814	1	O-Ring	-
41	38H5379	1	Adapter Fitting	-
42	T77858	1	O-Ring	-
43	KK63383	2	Plate	-
44	KK66818	1	Bracket	-

Hydraulic Pump, Primary Hose Routing and Mounting (198001 - )
