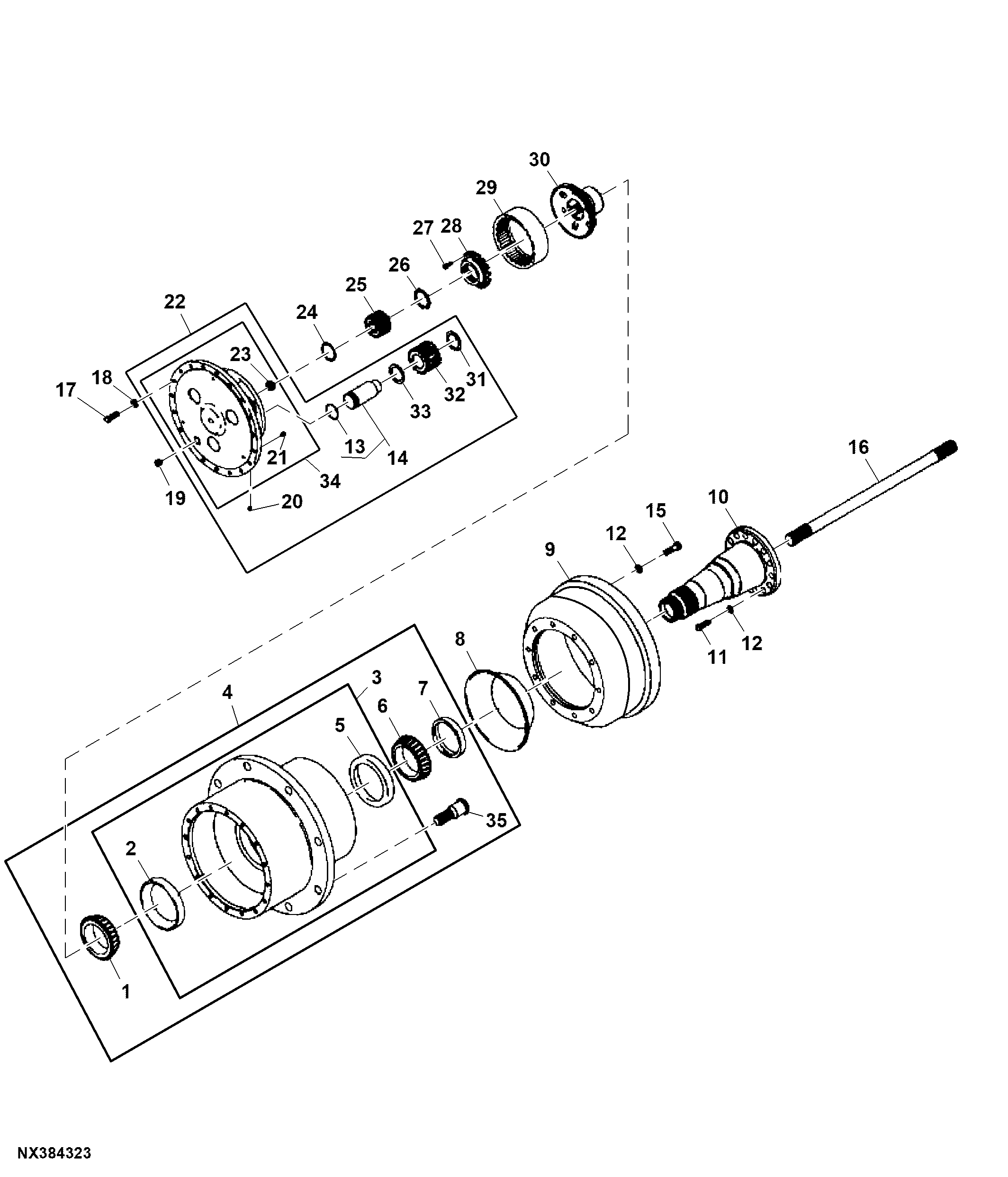

Hub and Shaft, Rear Axle ( - 208500)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK23186	2	Bearing	(B)
2	AKK23187	2	Bearing	(A)
3	AKK23226	2	Outboard PLNTY WHL Hub	(B); Includes Part Marked A
4	AKK23227	2	Outboard PLNTY WHL Hub	Includes Part Marked B
5	AKK23188	2	Bearing	(A)
6	AKK23189	2	Bearing	(B)
7	AKK23167	2	Seal	(B)
8	KK37214	2	Oil Slinger	-
9	KK37208	2	Brake Drum	-
10	KK37215	2	Spindle	-
11	KK37084	26	Cap Screw	-
12	KK37201	46	Washer	-
13	KK37198	6	O-Ring	(E)
14	AKK23195	6	Pinion Shaft	(C); Includes Part Marked E
15	KK37085	20	Cap Screw	-
16	KK37216	1	Jackshaft	LGTH = 52.150 in.(132.461 cm), LH
16	KK37217	1	Jackshaft	LGTH = 53.000 in.(134.620 cm), RH
17	KK37086	60	Cap Screw	-
18	KK37114	60	Washer	-
19	KK37212	1	Drain Plug	-
20	KK37087	6	Cap Screw	(C)
21	KK37218	6	Thrust Washer	(D)
22	AKK23204	2	Planet Pinion Carrier	Includes Part Marked C
23	KK37219	2	Thrust Washer	(D)
24	KK37196	2	Snap Ring	-
25	KK37184	2	Sun Gear	-
26	KK37116	2	Washer	-
27	KK37088	2	Cap Screw	-
28	KK37099	2	Nut	-
29	KK37185	2	Ring Gear	-
30	KK37186	2	Ring Gear	-
31	KK37118	6	Washer	(C)
32	AKK23194	6	Planet Pinion	(C)
33	KK37119	6	Washer	(C)
34	AKK23205	2	Differential	(C); Includes Part Marked D
35	KK37188	24	Stud	(B)

Hub and Shaft, Rear Axle ( - 208500)
