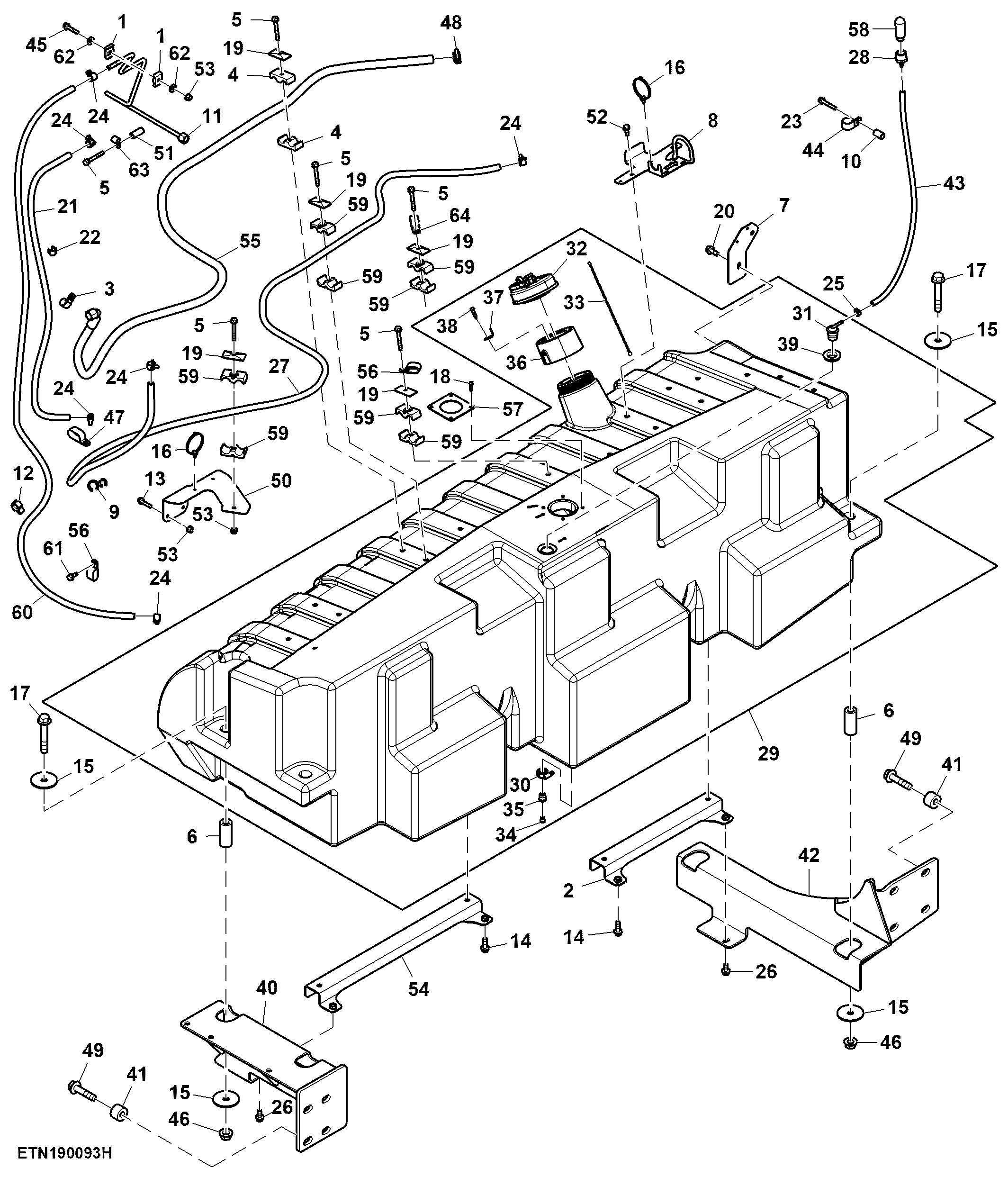

Hoses and Support, Fuel Tank (198001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H128515	2	Clamp	-
2	AKK20223	1	Support	-
3	AH78125	1	Clip	-
4	T74260	6	Half Clamp	-
5	19M9842	10	Screw	M8 X 60
5	KK53948	11	Screw	M8 X 60
6	N404813	4	Spacer	-
7	KK25609	1	Bracket	-
8	KK31525	1	Bracket	-
9	AL159725	1	Clamp	-
10	28H3495	1	Spacer	0.493" X 0.675" X 1"
11	AKK21101	1	Fuel Line	-
12	R213663	1	Clamp	-
13	19M9839	2	Screw	M8 X 35
13	KK53938	2	Screw	M8 X 35
14	19M9370	2	Screw	M10 X 30
14	KK54209	2	Screw	M10 X 30
15	24H1954	8	Washer	21/32" X 2-3/4" X 0.180"
16	T364089	3	Clamp	-
17	KK54397	4	Screw	M16 X 100
17	19M9410	4	Screw	M16 X 100
18	N205840	4	Bolt	-
19	H112567	10	Plate	-
20	19M9845	1	Screw	M10 X 25
20	KK54203	1	Screw	M10 X 25
21	KK45631	1	Hose	Fuel Cooler
22	R214293	2	Clamp	-
23	19M9841	1	Screw	M8 X 50
23	KK53946	1	Screw	M8 X 50
24	R202160	6	Clamp	-
25	R56101	1	Clip	-
26	19M9844	2	Screw	M10 X 20
26	KK53970	2	Screw	M10 X 20
27	KK33048	1	Hose	Line Bundle to Tank
28	H217849	1	Fitting	-
29	AKK19916	1	Fuel Tank	-
30	AR21837	1	Clamp	-
31	R237815	1	Vent	-
32	AT346094	1	Cap	-
33	RE255766	1	Link Chain	-
34	N407618	1	Pipe Plug	-
35	N407619	1	Fitting	-
36	RE566651	1	Adapter Fitting	-
37	H174831	1	Anchor	-
38	T164203	1	Screw	-
39	R560528	1	Grommet	-
40	AKK23326	1	Support	-
41	N406364	8	Bushing	-
42	AKK23322	1	Support	-
43	-	1	Part 50	Fuel Tank Breather CTL 810 mm, MF TY22551
44	T27550	1	Clip	-
45	19M9840	1	Screw	M8 X 40
45	KK53942	1	Screw	M8 X 40
46	14M7590	4	Flange Nut	M16
46	KK54779	4	Flange Nut	M16
47	F122159	1	Clamp	-
48	R184863	1	Hose Clamp	-
49	KK54374	8	Screw	M16 X 70
49	19M9858	8	Screw	M16 X 70
50	KK31634	1	Bracket	-
51	N311182	1	Spacer	-
52	19M10365	2	Screw	M8 X 20
52	KK53905	2	Screw	M8 X 20, USE WITH KK31525
53	14M7722	4	Lock Nut	M8
53	KK54762	4	Lock Nut	M8
54	AKK20222	1	Support	-
55	AKK20948	1	Hose	Fuel Supply
56	AH97280	3	Clip	-
57	R330922	1	Plate	-
58	H216169	1	Breather	-
59	H159793	14	Clamp	-
60	KK45643	1	Hose	-
61	19M9836	1	Screw	M8 X 20
61	KK53905	1	Screw	M8 X 20
62	24H1975	2	Washer	3/8" X 7/8" X 0.083"
63	AH80916	1	Clip	-
64	R49921	1	Clamp	-

Hoses and Support, Fuel Tank (198001 - )
