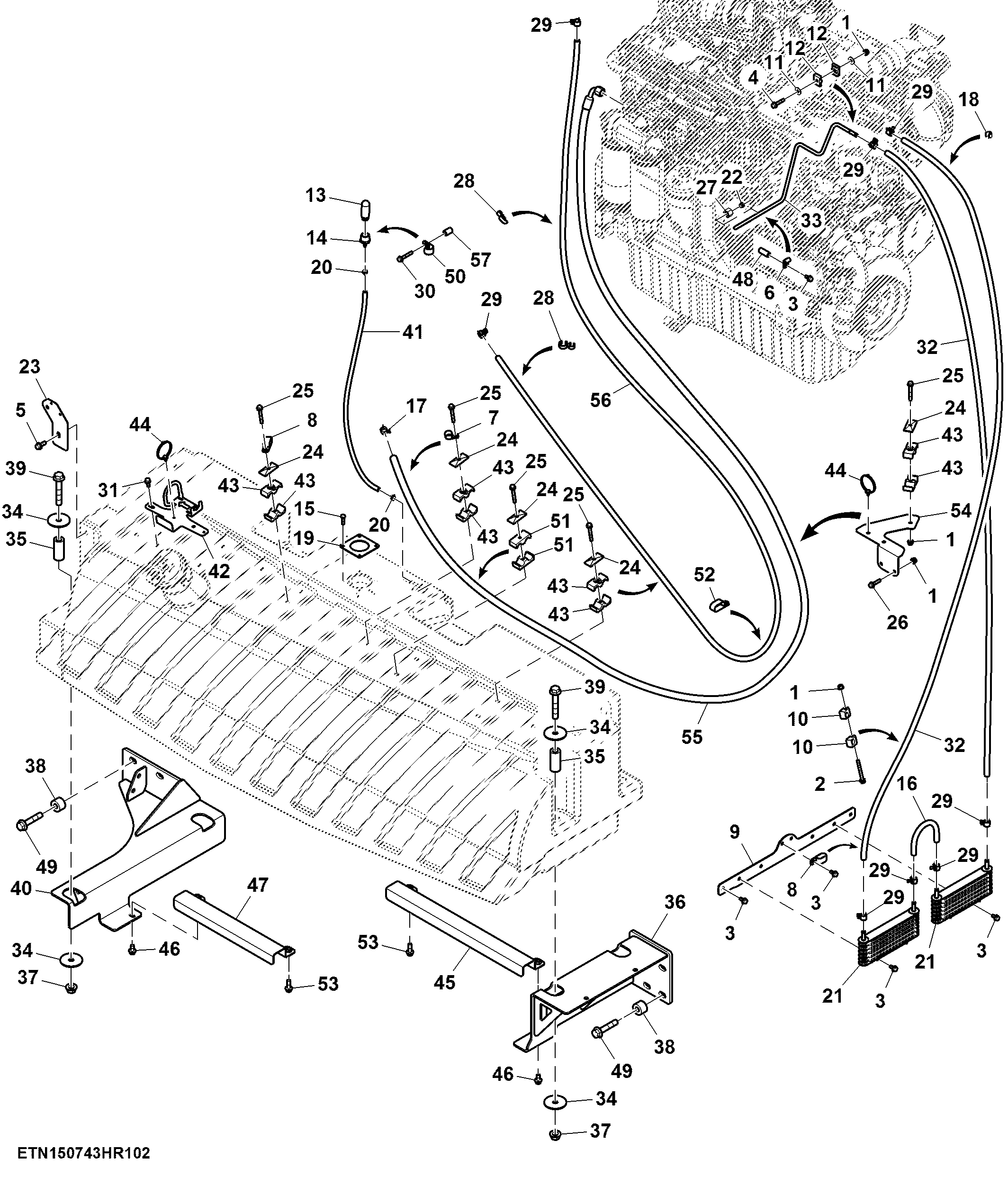

Hoses and Support, Fuel Tank ( - 198000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7722	5	Lock Nut	M8
2	19M10057	1	Screw	M8 X 70
3	19M9405	8	Screw	M8 X 16
4	19M9840	1	Screw	M8 X 40
5	19M9845	1	Screw	M10 X 25
6	AH80916	1	Clip	-
7	R49921	1	Clamp	-
8	AH97280	3	Clip	-
9	AN405189	1	Bracket	-
10	H112162	2	Clamp	-
11	24H1975	2	Washer	3/8" X 7/8" X 0.083"
12	H128515	2	Clamp	-
13	H216169	1	Breather	-
14	H217849	1	Fitting	-
15	N205840	4	Bolt	-
16	N408935	1	Hose	Jumper
17	R184863	1	Hose Clamp	-
18	R214293	2	Clamp	-
19	R330922	1	Plate	-
20	R56101	2	Clip	-
21	RE241176	2	Fuel Cooler	-
22	38H1132	1	Shoulder Fitting	-
23	KK25609	1	Bracket	-
24	H112567	9	Plate	-
25	19M9842	10	Screw	M8 X 60
26	19M9839	2	Screw	M8 X 35
27	38H5079	1	Tube Nut	-
28	AL159725	2	Clamp	-
29	R202160	8	Clamp	-
30	19M9841	1	Screw	M8 X 50
31	19M10365	2	Screw	M8 X 20
32	N407512	2	Hose	-
33	AKK21101	1	Fuel Line	Engine to Cooler
34	24H1954	8	Washer	21/32" X 2-3/4" X 0.180"
35	N404813	4	Spacer	-
36	AKK23326	1	Support	SUB FOR AKK20117
37	14M7590	4	Flange Nut	M16
38	N406364	8	Bushing	-
39	19M9410	4	Screw	M16 X 100
40	AKK23322	1	Support	SUB FOR AKK20134
41	-	1	Part 41	Fuel Tank Breather; CTL 810 mm, MF TY22551
42	KK31525	1	Bracket	-
43	H159793	12	Clamp	-
44	T364089	3	Clamp	-
45	AKK20222	1	Support	-
46	19M9844	2	Screw	M10 X 20
47	AKK20223	1	Support	-
48	N311182	1	Spacer	-
49	19M9856	8	Screw	M16 X 80
50	H75541	1	Clamp	-
51	T74260	6	Half Clamp	-
52	F122159	1	Clamp	-
53	19M9370	2	Screw	M10 X 30
54	KK31634	1	Bracket	-
55	AKK20948	1	Hose	-
56	-	1	Part 56	Line Bundle To Tank; CTL 2570 mm, MF TY22552
57	28H1495	1	Spacer	0.493" X 0.675" X 1"

Hoses and Support, Fuel Tank ( - 198000)
