Hoses and Fittings, Receiver Dryer, HVAC, FT4 (198001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	KK54762	5	Lock Nut	M8
1	14M7722	5	Lock Nut	M8
2	KK54351	1	Screw	M16 X 30
2	19M10392	1	Screw	M16 X 30
3	19M9836	2	Screw	M8 X 20
3	KK53905	2	Screw	M8 X 20
4	19M9844	2	Screw	M10 X 20
4	KK53970	2	Screw	M10 X 20
5	AN205158	4	Hose Clamp	-
6	R213663	1	Clamp	-
7	AKK24598	1	Refrigerant Hose	Condencer to Receiver
8	R214293	1	Clamp	-
9	RE576835	1	Receiver-Dryer	-
10	R183409	2	O-Ring	-
11	-	2	Part 15	-
12	19M10057	1	Screw	M8 X 70
13	19M9977	3	Screw	M8 X 80
14	AKK24889	1	Line	Refrigerant Hose FT4 A/C REC/DR
15	N410845	1	Clamp	-
16	N410846	1	Clamp	-
17	N410848	1	Fuel Line	Fuel Return
18	N410849	1	Tube	Heater Return
19	N410850	1	Tube	Cab Heater Coolant Supply
20	N412182	2	Strap	-
21	N412183	1	Bracket	-
22	R307289	3	Channel	-
23	R187365	5	Nut	-
24	24H1957	1	Washer	11/32" X 3/4" X 0.120"
25	19M10400	1	Cap Screw	M8 X 90
26	AKK16990	1	Hose	Heater Supply
27	AKK16989	1	Hose	Heater Supply
27	KK71286	1	Hose	Heater Supply
28	KK26004	3	Clamp	-
29	R109479	1	Clamp	-
30	KK25391	1	Block Clamp	-
31	14M7744	1	Flange Nut	M6
32	19M9981	1	Screw	M6 X 50
33	AKK24887	1	Oil Line	Oil Cooler
34	T76938	2	O-Ring	-
35	H85741	1	Clamp	-
36	AKK19421	1	Line	Suction, Cab to Compressor
37	KK33196	1	Bracket	-
38	AKK24888	1	Oil Line	Oil Cooler Out
39	KK41141	1	Bracket	-
40	38H1114	2	Adapter Fitting	-
41	R52861	1	Fitting	-

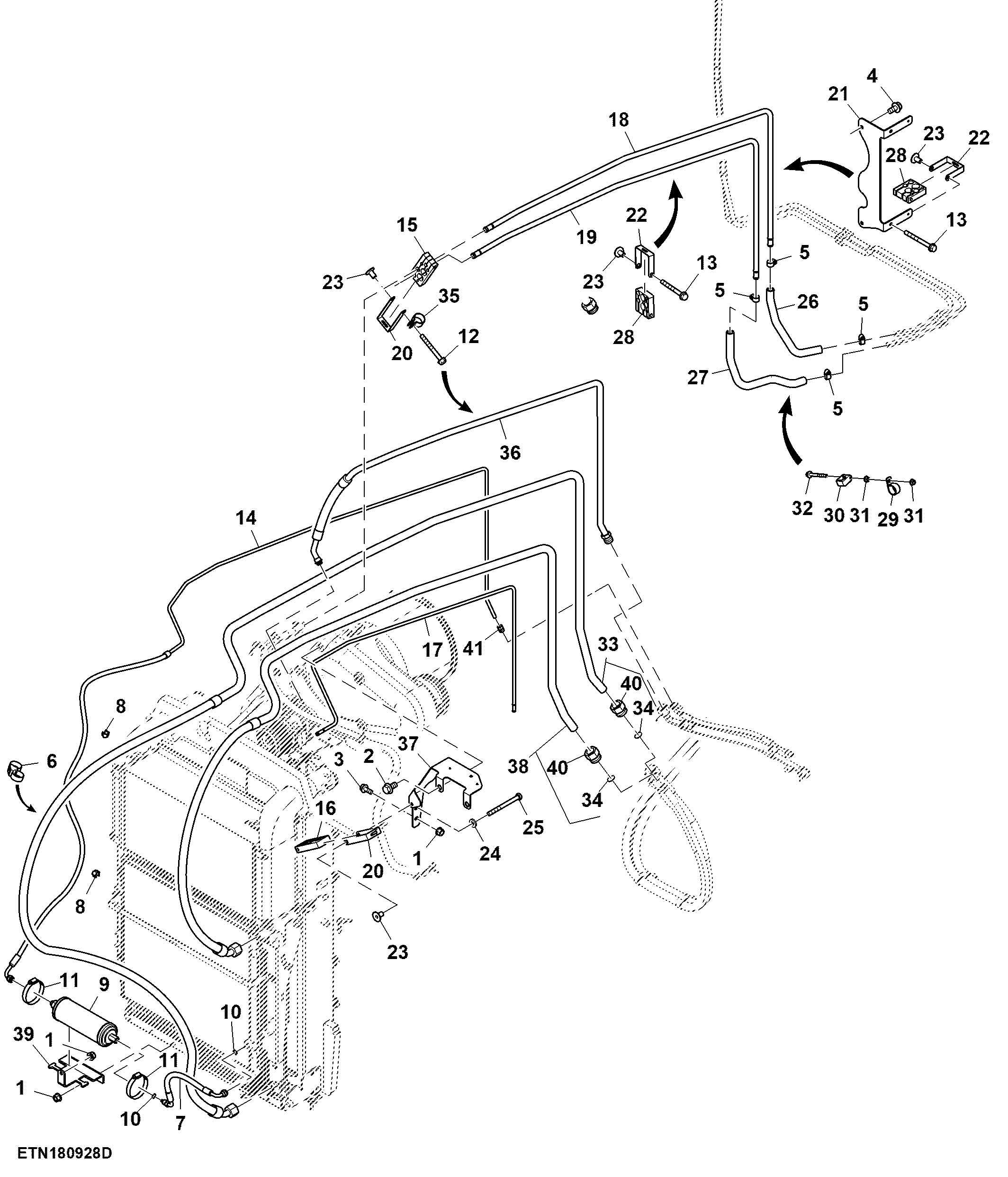

Hoses and Fittings, Receiver Dryer, HVAC, FT4 (198001 - )
