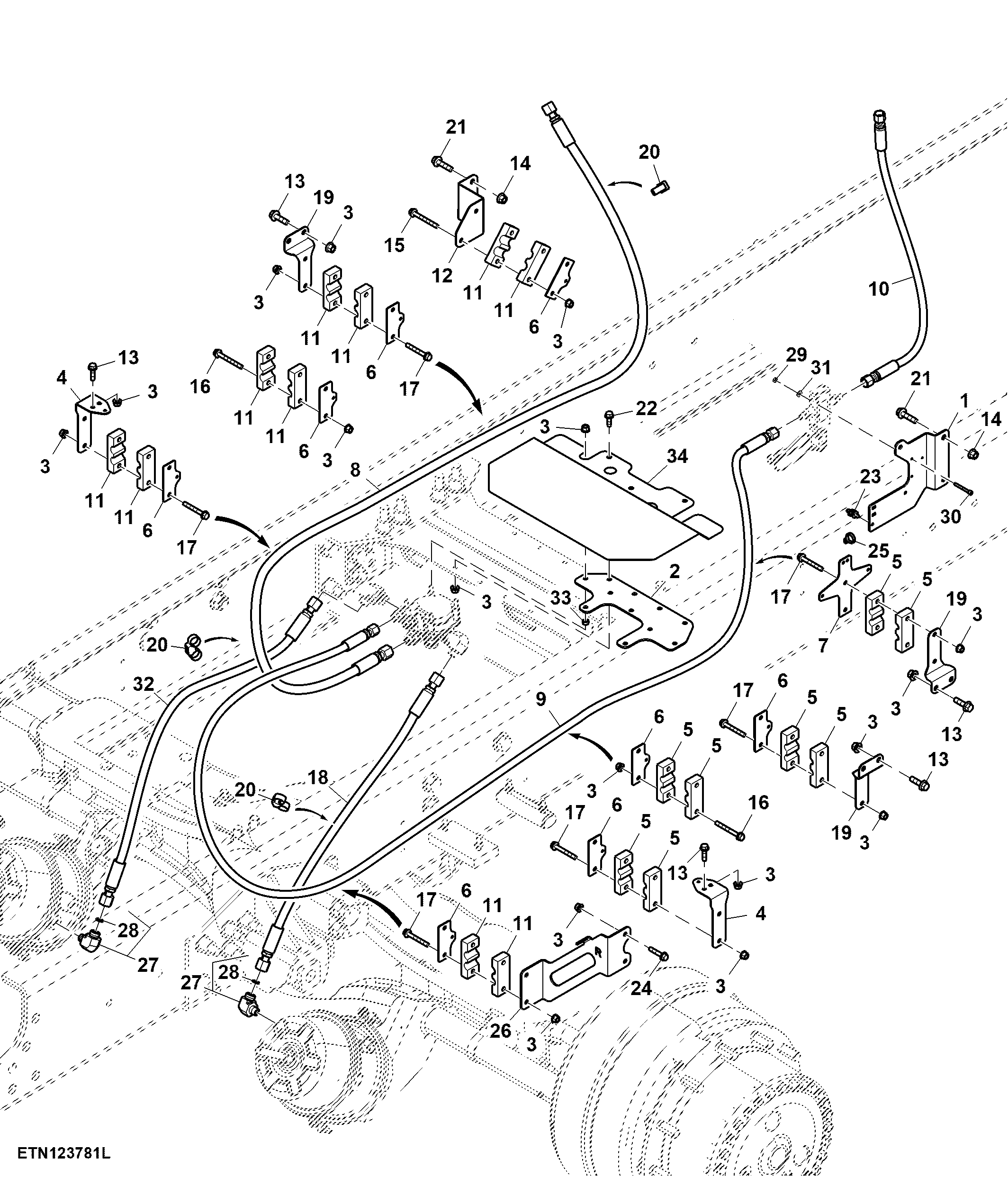

Hoses and Brackets, Park Brake Valve

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	KK35839	1	Bracket	-
2	KK23710	1	Bracket	-
3	KK54762	51	Lock Nut	M8, Corrosion Resistance
3	14M7722	52	Lock Nut	M8
4	KK25576	4	Bracket	-
5	KK25572	16	Block Clamp	-
6	KK25574	15	Plate	-
7	KK31448	1	Plate	-
8	AKK16406	1	Hydraulic Hose	Park Brake Relay Supply
9	AKK16419	1	Hydraulic Hose	Park Brake Control
10	AKK16416	1	Hydraulic Hose	Park Brake Control Supply
11	KK25569	16	Block Clamp	-
12	KK25866	1	Bracket	-
13	19M9838	10	Screw	M8 X 30
13	KK53935	10	Screw	M8 X 30, Corrosion Resistance
14	14M7723	4	Lock Nut	M10
14	KK54768	4	Lock Nut	M10, Corrosion Resistance
15	19M10157	2	Screw	M8 X 65
15	KK53949	2	Screw	M8 X 65, Corrosion Resistance
16	19M10057	14	Screw	M8 X 70
16	KK53951	14	Screw	M8 X 70, Corrosion Resistance
17	19M9842	16	Screw	M8 X 60
17	KK53948	16	Screw	M8 X 60, Corrosion Resistance
18	AKK16410	1	Hydraulic Hose	Park Brake Actuator
19	KK26572	3	Bracket	-
20	R213663	3	Clamp	-
21	19M9846	4	Screw	M10 X 40
21	KK54219	4	Screw	M10 X 40, Corrosion Resistance
22	19M9837	4	Screw	M8 X 25
22	KK53932	4	Screw	M8 X 25, Corrosion Resistance
23	RE258807	2	Tie Band	-
24	KK53942	2	Screw	M8 X 40, Corrosion Resistance
24	19M9840	2	Screw	M8 X 40
25	H77698	1	Tie Band	-
26	KK30572	1	Bracket	-
27	AKK19699	2	Elbow Fitting	-
28	T77857	2	O-Ring	-
29	WZ2022001	4	Lock Nut	-
30	19M10436	4	Socket Head Screw	M4 X 35
31	N407706	4	Washer	-
32	AKK19432	1	Hydraulic Hose	Service Brake
33	KK30948	3	Spacer	-
34	KK30941	1	Shield	-

Hoses and Brackets, Park Brake Valve
