Heating Ventilating / Air Conditioning Lines and Hoses

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE305823	1	Line	High Pressure Refrigrant
2	RE286820	1	Line	AC Suction, A-Post
3	R183409	5	O-Ring	-
4	R183412	4	O-Ring	-
5	H120847	4	Clamp	-
6	H121168	2	Plate	-
7	19M7979	2	Screw	M8 X 55
8	R280791	2	Push Nut	-
9	R320709	1	Line	Coolant Supply
9	RE574463	1	Line	Coolant Supply
10	R334016	1	Line	Heater Return
11	R44302	1	Tie Band	-
12	R289547	3	Hose	Condensate Drain
13	R291221	4	Grommet	-
14	57M8902	2	Clip	-
15	R332501	1	Hose	-
16	R343208	1	Clamp	-
17	37M7352	6	Screw	-
18	R115466	2	Plug	-
19	R286827	1	Half Clamp	-
20	R559859	1	Clamp	SUB FOR R286834
21	R542019	3	Half Clamp	-
22	R293158	3	Half Clamp	-
23	R294565	3	Half Clamp	-
24	R294567	3	Half Clamp	-
25	R125223	1	Plate	-
26	19M8666	1	Screw	M6 X 16
27	RE286824	1	Line	AC High Pressure, Roof
28	AH78237	1	Clamp	-
29	37M7092	1	Screw	M8 X 16
30	R289546	1	Strap	-
31	R286832	1	Hose	Heater Supply
32	RE286825	1	Line	AC Suction, Roof
33	AH76882	1	Clip	-
34	24M7100	4	Washer	6.600 X 22 X 2 mm
35	T184924	2	Hose Clamp	-
36	RE57589	1	Clip	-
37	RE332499	1	Hose	Condensate Drain, RH Rear
38	RE332500	1	Hose	Condensate Drain, RH Rear
39	RE573278	1	Hose	Condensate Drain, RH Front
40	R332503	1	Hose	Condensate Drain, RH Front
41	RE560644	1	Hose	Condensate Drain, LH Front
42	L206271	1	Clamp	-
43	R215302	1	Clip	-
44	R551492	1	Hose	Condensate Drain, Nylon
45	RE321761	1	Refrigerant Hose	-
46	RE321762	1	Refrigerant Hose	-
46	AKK28891	1	Refrigerant Hose	-

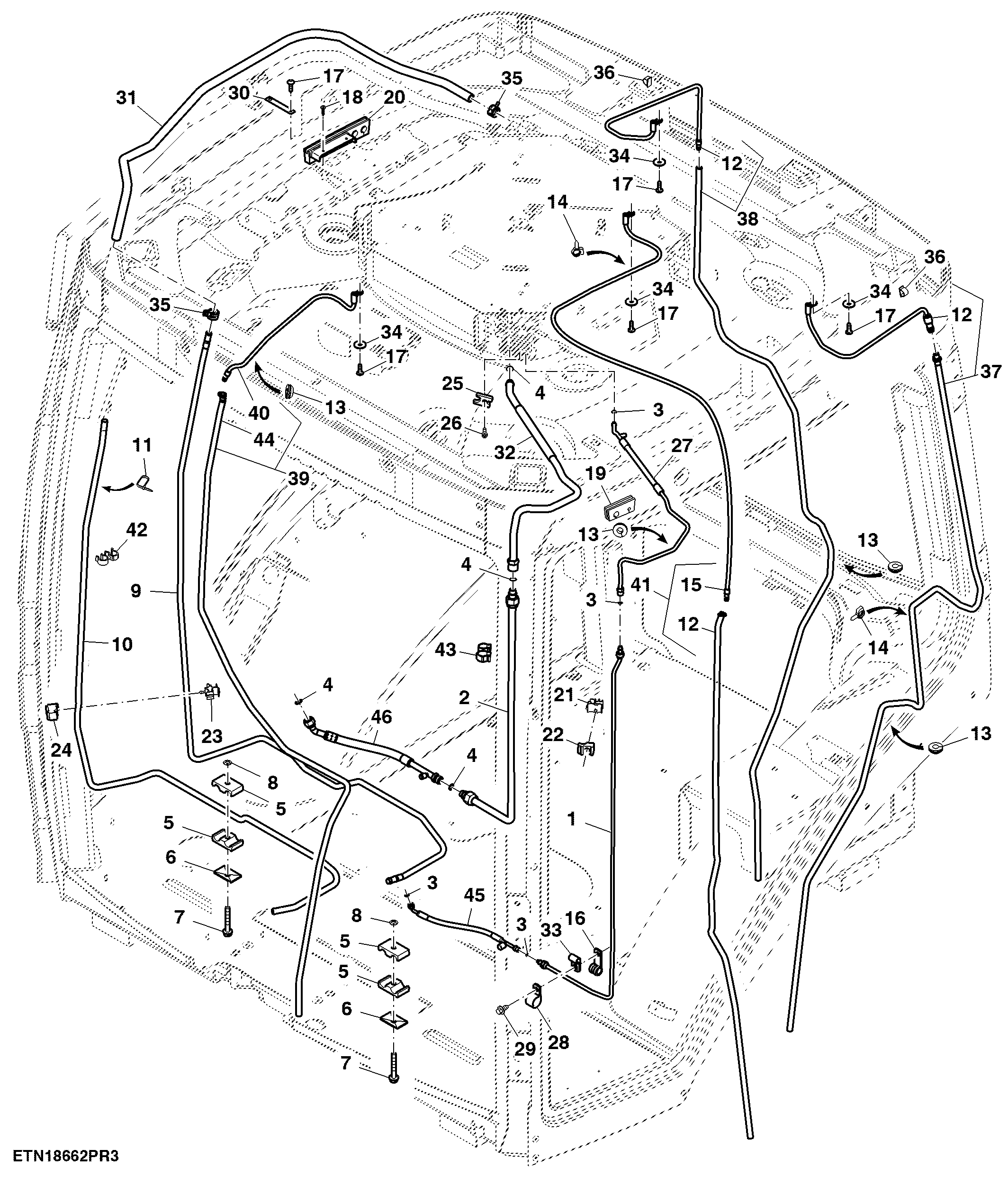

Heating Ventilating / Air Conditioning Lines and Hoses
