Gear Case and Carrier, Rear Axle ( - 208500)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK23235	1	Planet Pinion Carrier	-
2	AKK23211	1	Hardware Kit	-
2	KK37153	1	Shim	TK = 0.5 mm
2	KK37152	4	Shim	TK = 0.25 mm
2	KK37150	3	Shim	TK = 0.075 mm
2	KK37151	2	Shim	TK = 0.125 mm
3	KK37160	1	Cage	-
4	AKK23191	1	Shim	-
5	KK37194	1	Snap Ring	(A)
6	AKK23220	1	Differential Kit	-
6	AKK23221	1	Differential Kit	-
7	AKK23184	1	Bearing	Includes Part Marked C
7	AKK23185	1	Bearing	Includes Part Marked E
7	AKK23213	1	Hardware Kit	Includes Part Marked D
7	AKK23183	1	Bearing	Includes Part Marked B
7	AKK23193	1	Ring Gear And Pinion	Includes Part Marked A
7	AKK23203	1	Gear Group	(A)
8	KK37195	2	Snap Ring	-
9	KK37115	4	Washer	-
10	KK37110	24	Washer	-
11	19M10317	16	Cap Screw	M12 X 90
12	KK37139	4	Cap Screw	-
13	KK37136	2	Cap Screw	(D)
14	KK37137	1	Cap Screw	-
15	KK37096	1	Nut	-
16	KK37111	1	Washer	(A)
17	KK37097	1	Nut	(A)
18	AKK23212	1	Hardware Kit	-
19	AKK23176	2	Bearing	(E)
20	AKK23177	2	Bearing	(E)
21	AKK23178	1	Bearing	(C)
22	AKK23179	1	Bearing	(C)
23	AKK23222	1	Differential Kit	-
24	KK37112	4	Washer	-
25	KK37161	4	Pinion	-
26	KK37183	2	Bevel Gear	-
27	KK37113	2	Washer	-
28	AKK23180	1	Bearing	(B)
29	AKK23181	1	Bearing	(B)
30	AKK23182	1	Bearing	(A)
31	AKK23166	1	Seal	-
32	AKK23210	1	Hardware Kit	-
33	KK37138	12	Cap Screw	-
34	KK37114	12	Washer	-
35	KK37098	12	Nut	-
36	19M10445	8	Cap Screw	M12 X 45
37	AKK23223	1	Differential Kit	-
38	KK37211	4	Dowel Pin	-

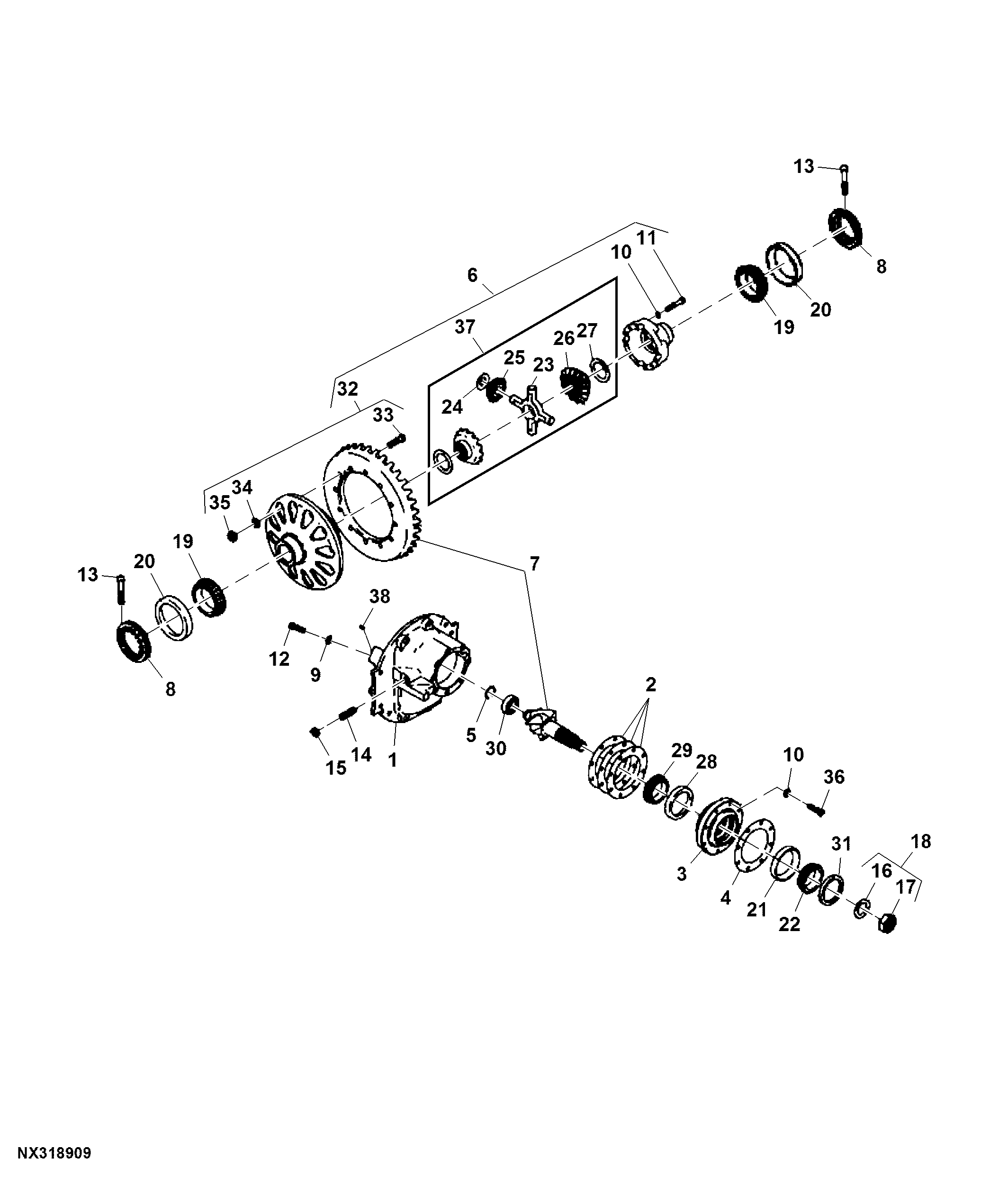

Gear Case and Carrier, Rear Axle ( - 208500)
