Chassis Wiring Harness, Hood Extension (208001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK31264	1	Wiring Harness	-
2	57M11753	1	Elec. Connector Housing	XX001
2	R78068	4	Elec. Connector Terminal	Cavity 1,2, 3, 4
2	N282069	2	Elec. Connector Terminal	Cavity 5, 7
2	R78066	11	Elec. Connector Terminal	Cavity 6, 8, 9, 10, 11, 12, 14, 15, 16, 17 ,21
2	57M8429	6	Elec. Connector Terminal	Cavity 18, 20, 23, 24, 27, 29
2	Z78008	4	Elec. Connector Seal	Cavity 2, 25, 26, 28
3	RE258807	3	Tie Band	-
4	57M9807	3	Elec. Connector Terminal	Cavity 1, 3, 4
4	R78065	2	Elec. Connector Terminal	Cavity 5, 6
4	57M9814	1	Elec. Connector Cavity Plug	Cavity 2
4	57M9751	1	Elec. Connector Housing	NOX Sensor, DPF Outlet XB5502
5	57M10230	1	Elec. Connector Accessory	NOX Sensor, DPF Outlet XB5502
6	R213663	3	Clamp	-
7	57M9780	1	Elec. Connector Housing	DPF Delta Pressure Face Seal XB5109
7	57M14898	3	Elec. Connector Terminal	Cavity 1,2, 3
8	57M8544	4	Elec. Connector Terminal	Cavity 1,5, 10, 14
8	57M12212	1	Elec. Connector Accessory	-
8	57M8545	1	Elec. Connector Terminal	Cavity 9
8	57M8572	1	Elec. Connector Cavity Plug	Cavity 7
8	57M8565	8	Elec. Connector Terminal	Cavity 2, 3, 4, 6, 8, 11, 12, 13
8	57M10297	1	Elec. Connector Housing	Hood Harness XX002
9	KK55593	1	Bracket	-
10	19M9844	2	Screw	M10 X 20
11	57M9061	1	Elec.Connect Locking Device	-
12	57M8035	1	Nut	-
13	AKK36599	1	Wiring Harness	-
14	57M8866	1	Elec. Connector Terminal	A100-30, Power Stud, Cavity 1
15	57M7567	1	Elec. Connector Terminal	X008, Power Stud, Cavity 1
16	AKK36917	1	Elec. Connector Housing	-
17	57M10611	1	Elec. Connector Housing	A980-J3, Steering System Control Unit J3
18	57M10334	8	Elec. Connector Cavity Plug	-
19	57M10333	24	Elec. Connector Cavity Plug	-
20	57M10604	1	Elec. Connector Housing	-

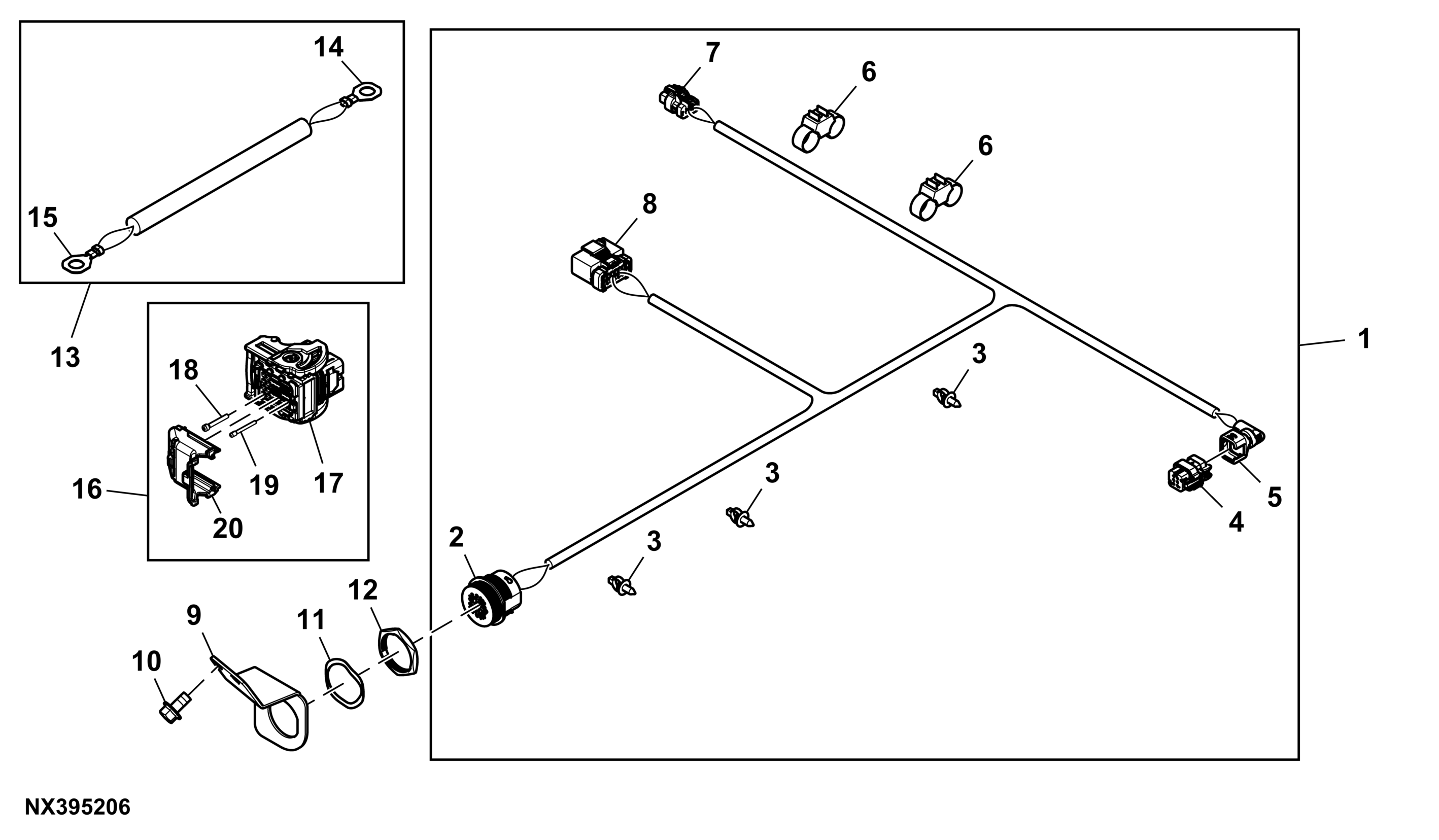

Chassis Wiring Harness, Hood Extension (208001 - )
