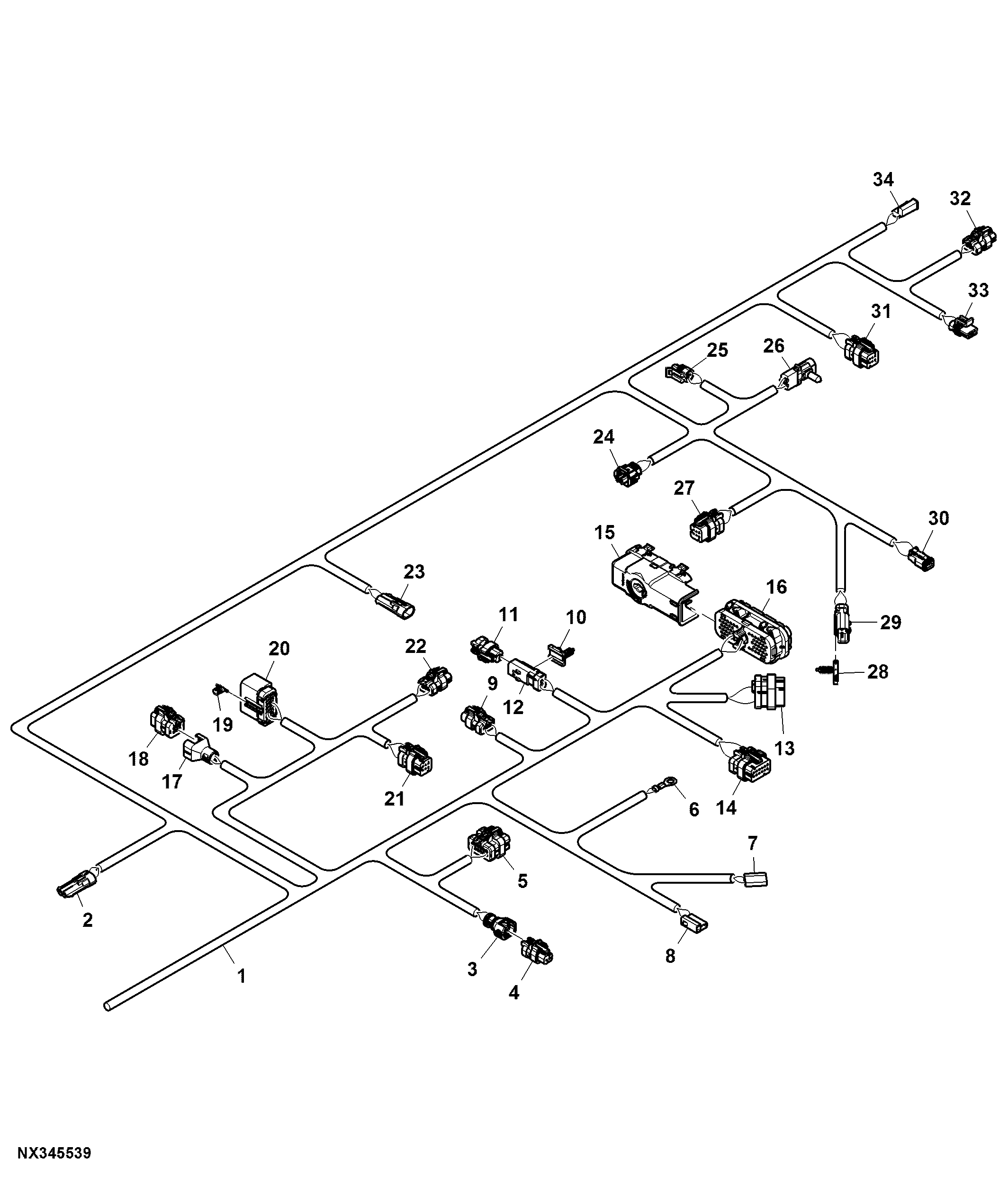

Chassis Wiring Harness (3/3) (188001 - 208000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK26903	1	Wiring Harness	-
2	57M7256	1	Elec. Connector Housing	Hydraulic Oil Filter Restriction Sensor 2
2	57M7495	2	Elec. Connector Terminal	-
2	57M9712	1	Elec. Connector Accessory	-
2	57M7258	2	Elec. Connector Seal	-
3	57M9837	1	Elec. Connector Accessory	-
4	57M9774	1	Elec. Connector Housing	Fuel Transfer Pump
4	57M10319	2	Elec. Connector Terminal	-
5	57M9800	1	Elec. Connector Housing	FT4 AT Engine
5	57M9844	1	Elec. Connector Accessory	-
5	57M9808	7	Elec. Connector Terminal	-
6	57M8875	1	Elec. Connector Terminal	Starter Solenoid
7	U46662	1	Elec. Connector Terminal	-
7	57M8809	1	Elec. Connector Terminal	-
7	57M7144	1	Elec. Connector Housing	Front Washer Pump
8	57M7144	1	Elec. Connector Housing	Right Washer Pump
8	U46662	2	Elec. Connector Terminal	-
9	57M9734	1	Elec. Connector Housing	Left Front Warning Inline
9	57M9838	1	Elec. Connector Accessory	-
9	57M9807	3	Elec. Connector Terminal	-
10	57M9940	1	Elec. Connector Accessory	-
11	57M11134	1	Elec. Connector Housing	-
12	57M9812	2	Elec. Connector Terminal	-
12	57M9776	1	Elec. Connector Housing	Chassis Tractor Can Terminator Connector
13	57M9801	1	Elec. Connector Housing	FT4 SCR Supply Module Connector
13	57M9844	1	Elec. Connector Accessory	-
13	57M10321	10	Elec. Connector Terminal	-
13	57M9808	1	Elec. Connector Terminal	-
14	57M9802	1	Elec. Connector Housing	FT4 Diesel Exhaust Fluid Engine
14	57M9844	1	Elec. Connector Accessory	-
14	57M9808	3	Elec. Connector Terminal	-
14	57M10319	6	Elec. Connector Terminal	-
15	R528122	1	Elec. Connector Accessory	-
16	RE538505	1	Elec. Connector Accessory	ECU J3
16	57M10321	13	Elec. Connector Terminal	-
16	57M9808	5	Elec. Connector Terminal	-
17	57M9841	1	Elec. Connector Accessory	-
18	57M9786	1	Elec. Connector Housing	Chassis to Front Control Inline
18	57M9809	4	Elec. Connector Terminal	-
18	57M10631	2	Elec. Connector Terminal	-
19	57M12212	1	Elec. Connector Accessory	-
20	57M9808	5	Elec. Connector Terminal	-
20	57M9751	1	Elec. Connector Housing	NOX Sensor DPF Outlet
20	57M8545	1	Elec. Connector Terminal	-
20	57M8543	4	Elec. Connector Terminal	-
20	57M10297	1	Elec. Connector Housing	Chassis to Hood Inline
20	57M8565	8	Elec. Connector Terminal	-
21	57M9787	1	Elec. Connector Housing	-
22	57M9780	1	Elec. Connector Housing	DPF Delta Pressure Face Seal
22	R78065	3	Elec. Connector Terminal	-
23	57M7256	1	Elec. Connector Housing	Hydraulic Oil Filter Restriction Sensor
23	57M9712	1	Elec. Connector Accessory	-
23	57M7258	2	Elec. Connector Seal	-
23	57M7495	2	Elec. Connector Terminal	-
24	57M9832	2	Elec. Connector Terminal	-
24	57M10925	3	Elec. Connector Terminal	-
24	57M9005	1	Elec. Connector Housing	TVT Brake Preesure Sensor
24	57M9149	2	Elec. Connector Seal	-
24	57M10315	1	Elec. Connector Housing	SCR Dosing Control Valve
25	57M8625	1	Elec. Connector Housing	-
26	57M9570	1	Electrical Connector Assy	Brake IVT Switch
26	57M9218	2	Elec. Connector Seal	-
26	57M7251	2	Elec. Connector Terminal	-
27	57M9751	1	Elec. Connector Housing	NOX Sensor SCR Outlet
27	57M9808	4	Elec. Connector Terminal	-
28	57M9939	1	Elec. Connector Accessory	-
29	57M9738	1	Elec. Connector Housing	Right Chassis Side Work Light Inline
29	57M9811	3	Elec. Connector Terminal	-
29	57M9734	1	Elec. Connector Housing	-
30	57M8021	1	Electrical Connector Assy	Right Chassis Side Work Light 1
30	57M8022	1	Elec.Connect Locking Device	-
30	57M11230	1	Elec. Connector Accessory	-
30	R78065	2	Elec. Connector Terminal	-
31	57M9750	1	Elec. Connector Housing	Wheel Angle Inline
31	57M9809	6	Elec. Connector Terminal	-
32	57M9734	1	Elec. Connector Housing	Right Front Warning Inline
32	57M9838	1	Elec. Connector Accessory	-
32	57M9807	3	Elec. Connector Terminal	-
33	57M7309	1	Elec. Connector Housing	A/C Compressor
33	57M7297	2	Elec. Connector Terminal	-
33	57M9218	2	Elec. Connector Seal	-
33	57M7306	1	Elec.Connect Locking Device	-
34	57M8812	1	Elec. Connector Housing	Ether
34	U46662	2	Elec. Connector Terminal	-
35	57M10630	6	Clip Kit	-
36	RE258807	1	Tie Band	-
37	R213663	1	Clamp	-
38	H77698	1	Tie Band	-
