Открытый узел

Chassis Wiring Harness, 2T, IVT, Transmission (208501 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8309	1	Elec. Connector Terminal	Cavity A
1	57M8281	1	Elec. Connector Housing	Transmission Interconnect XX330-2
1	57M11996	1	Elec. Connector Accessory	-
1	57M8329	6	Electrical Connector Assy	Cavity G,H,J,L,M,N
1	57M8322	1	Elec. Connector Terminal	-
1	57M8321	1	Elec. Connector Terminal	-
1	57M8318	1	Elec. Connector Terminal	-
1	57M9223	7	Elec. Connector Seal	-
1	57M9539	7	Elec. Connector Terminal	Cavity B,C,D,E,K,P,R
1	57M8301	1	Elec. Connector Terminal	Cavity F
1	57M8306	1	Elec. Connector Terminal	Cavity S
2	57M11407	1	Elec. Connector Accessory	-
3	57M10366	1	Elec. Connector Housing	Vehicle Control Unit J3 XA570-J3
3	57M10332	1	Elec. Connector Terminal	Cavity 1
3	57M10619	1	Elec. Connector Housing	Cavity 5
3	57M10331	6	Elec. Connector Terminal	Cavity 6,17,18,30,42,53
3	57M10514	21	Elec. Connector Terminal	Cavity 7,9,13,15,16,21,22,23,24,25,27,31,32,33,35,39,43,44,45,46,49
3	57M11959	1	Elec. Connector Seal	-
3	57M10620	1	Elec. Connector Seal	-
3	57M9875	3	Elec. Connector Cavity Plug	Cavity 2,3,4
3	57M10333	19	Elec. Connector Cavity Plug	Cavity 8,10,11,12,14,19,20,26,28,34,36,37,38,40,47,48,50,51,52
4	57M10401	1	Elec. Connector Accessory	-
5	57M12144	1	Clamp	-
6	RE258807	11	Tie Band	-
7	57M9775	1	Elec. Connector Housing	Hydro Ring 2 XB518
7	57M9808	2	Elec. Connector Terminal	Cavity 1,2
8	57M9775	1	Elec. Connector Housing	CU Idler Speed XB514
8	57M9808	2	Elec. Connector Terminal	Cavity 1,2
9	57M9775	1	Elec. Connector Housing	Carrier Speed XB515
9	57M9808	2	Elec. Connector Terminal	Cavity 1,2
10	57M8924	1	Elec. Connector Housing	Clutch C3 Infinitely Variable Transmission XY661
10	57M8560	2	Elec. Connector Terminal	Cavity A,B
10	57M8566	2	Elec. Connector Seal	-
11	57M8560	2	Elec. Connector Terminal	Cavity A,B
11	57M8566	2	Elec. Connector Seal	-
11	57M8924	1	Elec. Connector Housing	Clutch C1 Infinitely Variable Transmission XY659
12	57M8924	1	Elec. Connector Housing	Enable Valve Supply XY629
12	57M8602	1	Elec. Connector Terminal	Cavity A
12	57M8560	1	Elec. Connector Terminal	Cavity B
12	57M8603	1	Elec. Connector Seal	-
12	57M8566	1	Elec. Connector Seal	-
13	57M8633	1	Elec. Connector Accessory	-
13	57M8566	2	Elec. Connector Seal	-
13	57M8924	1	Elec. Connector Housing	Clutch C2 Infinitely Variable Transmission XY660
13	57M8560	2	Elec. Connector Terminal	Cavity A,B
14	57M8602	2	Elec. Connector Terminal	Cavity A,B
14	57M8603	2	Elec. Connector Seal	-
14	57M8924	1	Elec. Connector Housing	Clutch RB XY658
15	57M8924	1	Elec. Connector Housing	Park Supply XY633
15	57M8560	2	Elec. Connector Terminal	Cavity A,B
15	57M8566	2	Elec. Connector Seal	-
16	57M8924	1	Elec. Connector Housing	Park Sump Block SOL XY670
16	57M8560	2	Elec. Connector Terminal	Cavity A,B
16	57M8566	2	Elec. Connector Seal	-
17	57M8602	2	Elec. Connector Terminal	Cavity A,B
17	57M8603	2	Elec. Connector Seal	-
17	57M8924	1	Elec. Connector Housing	Clutch LC XY657
18	57M8924	1	Elec. Connector Housing	Clutch Hi-Current XY656
18	57M8602	2	Elec. Connector Terminal	Cavity A,B
18	57M8603	2	Elec. Connector Seal	-
19	57M11380	9	Elec. Connector Accessory	-
20	57M9837	1	Elec. Connector Accessory	-
21	57M9780	1	Elec. Connector Housing	Secondary Wheel Speed XB516
21	57M9809	3	Elec. Connector Terminal	Cavity 1,2,3
22	57M9780	1	Elec. Connector Housing	Primary Wheel Speed XB517
22	57M9809	3	Elec. Connector Terminal	Cavity 1,2,3
23	57M9780	1	Elec. Connector Housing	Clutch Enable Pressure Sensor XB526
23	57M9809	3	Elec. Connector Terminal	Cavity 1,2,3
24	57M9780	1	Elec. Connector Housing	Park Brake Pressure XB707
24	57M9809	3	Elec. Connector Terminal	Cavity 1,2,3
25	57M10156	2	Elec. Connector Accessory	-
26	57M9210	1	Elec. Connector Housing	Loop Flush Cutoff XY616
26	57M8602	2	Elec. Connector Terminal	Cavity A,B
26	57M8603	2	Elec. Connector Seal	-
27	57M8602	1	Elec. Connector Terminal	Cavity A
27	57M8633	1	Elec. Connector Accessory	-
27	57M8566	1	Elec. Connector Seal	-
27	57M8603	1	Elec. Connector Seal	-
27	57M8560	1	Elec. Connector Terminal	Cavity B
27	57M9210	1	Elec. Connector Housing	RU Hydro XY654
28	57M9210	1	Elec. Connector Housing	CU Hydro XY655
28	57M8560	2	Elec. Connector Terminal	Cavity A,B
28	57M8566	1	Elec. Connector Seal	-
28	57M8633	1	Elec. Connector Accessory	-
29	57M10630	4	Clip Kit	-
30	AKK39130	1	Chassis Wiring Harness	-

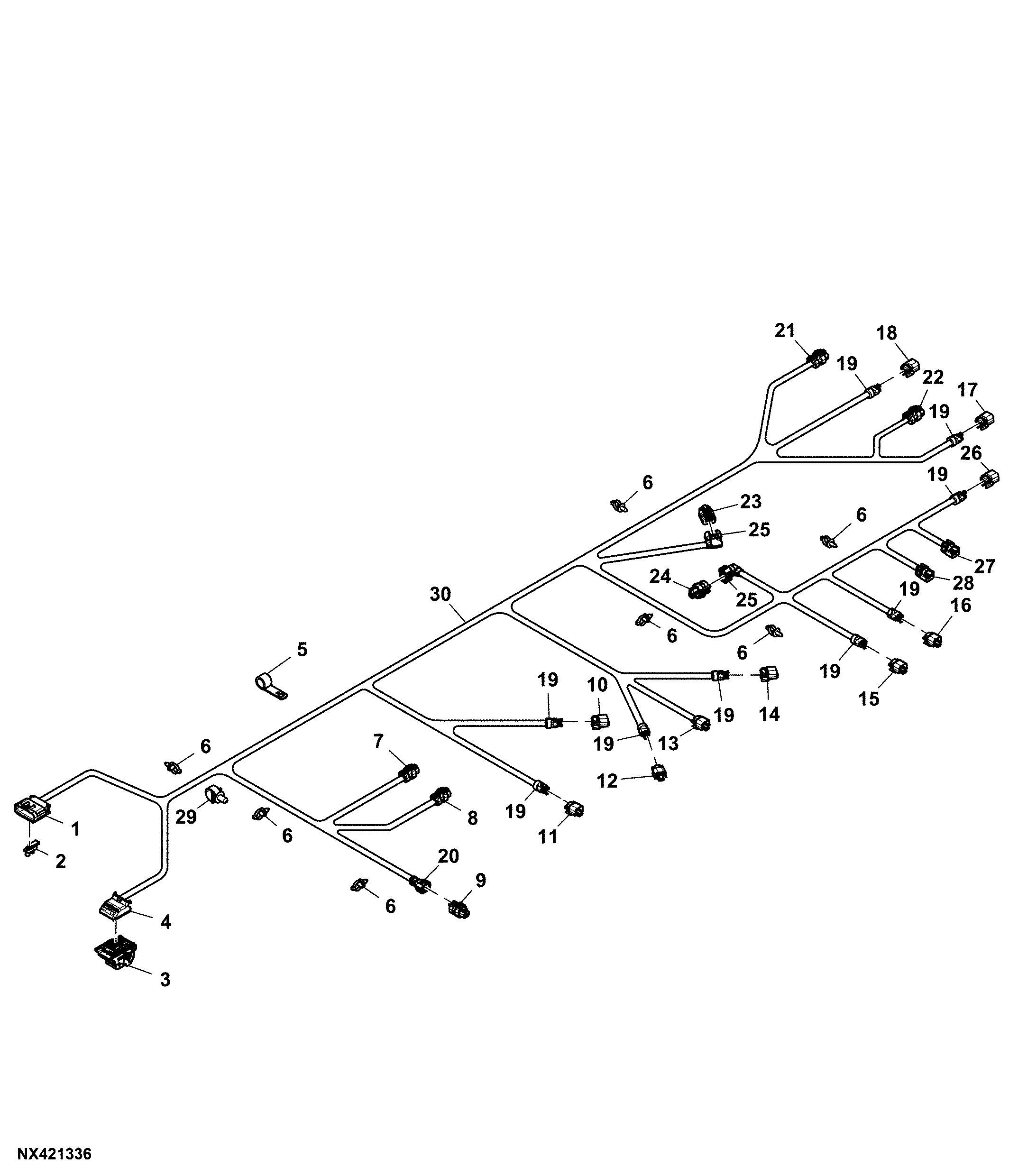

Chassis Wiring Harness, 2T, IVT, Transmission (208501 - )
