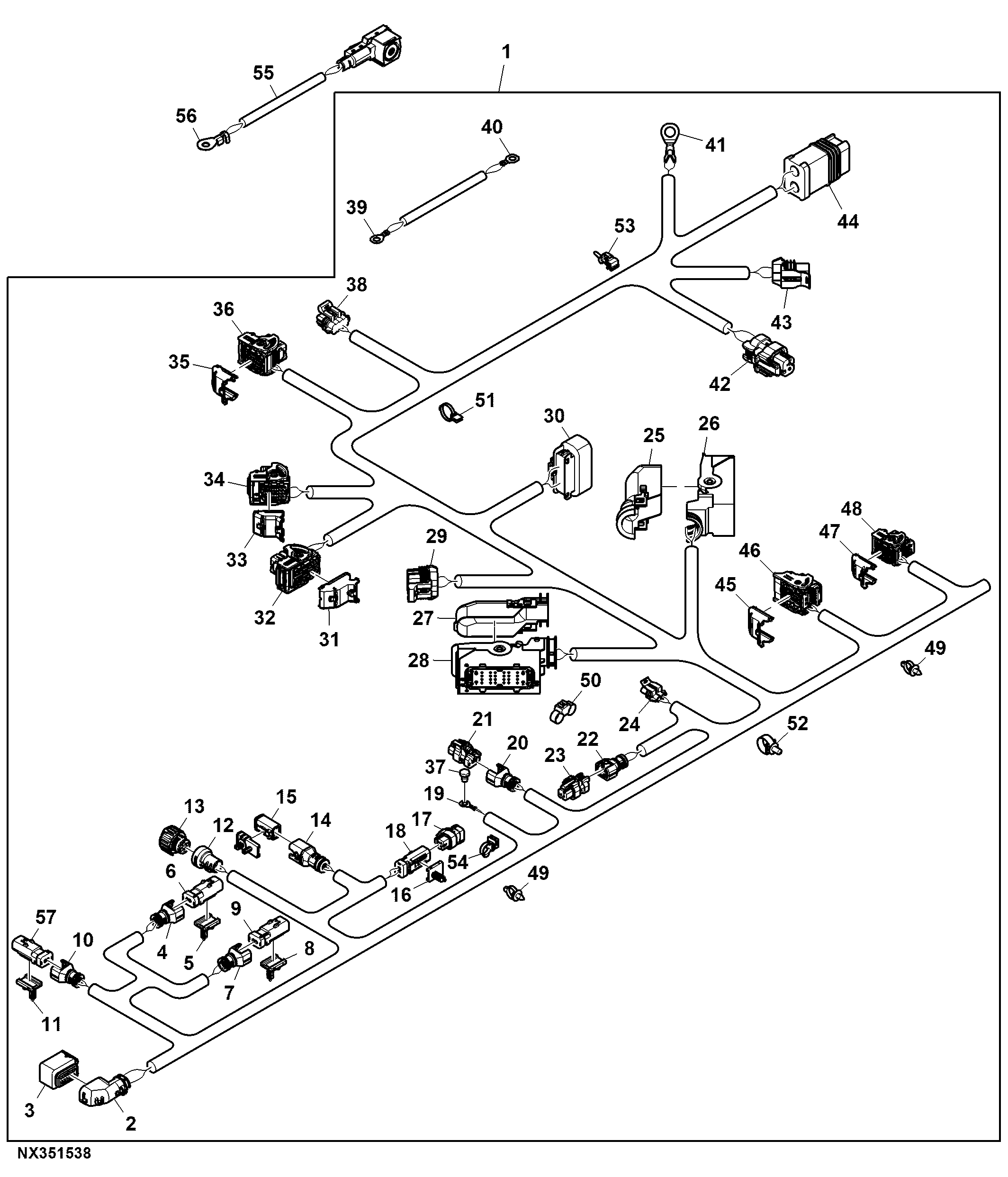

Chassis Wiring Harness (1/3) (188001 - 208000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK26903	1	Wiring Harness	-
2	57M11439	1	Elec. Connector Accessory	-
3	57M11248	10	Elec. Connector Terminal	-
3	57M10958	1	Elec. Connector Housing	SCR Supply Module
3	57M8241	10	Elec. Connector Terminal	-
4	57M9837	1	Elec. Connector Accessory	-
5	57M9940	1	Elec. Connector Accessory	-
5	57M9810	2	Elec. Connector Terminal	-
6	57M9732	1	Elec. Connector Housing	Diesel Exhaust Fluid Line Heaters Return Line
7	57M9837	1	Elec. Connector Accessory	-
8	57M9940	1	Elec. Connector Accessory	-
8	57M9810	2	Elec. Connector Terminal	-
9	57M9730	1	Elec. Connector Housing	Diesel Exhaust Fluid Line Heaters Suction Line
10	57M9837	1	Elec. Connector Accessory	-
11	57M9940	1	Elec. Connector Accessory	-
11	57M9810	2	Elec. Connector Terminal	-
12	57M11120	1	Elec. Connector Accessory	-
13	57M13137	1	Elec. Connector Housing	Coolant Control Valve
13	57M7951	2	Elec. Connector Terminal	-
13	57M7948	2	Elec. Connector Terminal	-
14	57M12049	1	Elec. Connector Accessory	-
15	57M10530	1	Elec. Connector Housing	Diesel Exhaust Fluid Quality Sensor
15	57M8016	1	Elec.Connect Locking Device	-
15	57M8165	2	Elec. Connector Terminal	-
15	R78065	2	Elec. Connector Terminal	-
16	57M9939	1	Elec. Connector Accessory	-
17	57M11134	1	Elec. Connector Housing	-
18	57M9776	1	Elec. Connector Housing	Can Transmination Register
18	57M9812	2	Elec. Connector Terminal	-
19	57M8872	1	Elec. Connector Terminal	Fuel Neck Ground
19	57M11496	1	Elec. Connector Accessory	-
19	57M8872	1	Elec. Connector Terminal	-
20	57M9837	1	Elec. Connector Accessory	-
21	57M9726	1	Elec. Connector Housing	Fuel Level
21	R78065	2	Elec. Connector Terminal	-
22	57M9837	1	Elec. Connector Accessory	-
23	57M9772	1	Elec. Connector Housing	Chassis to Backup Alarm Inline
23	R78065	2	Elec. Connector Terminal	-
24	57M9883	2	Elec. Connector Cable Seal	-
24	57M10770	2	Elec. Connector Terminal	-
24	57M9712	1	Elec. Connector Accessory	-
24	57M7254	1	Elec. Connector Housing	Park Brake Solenoid
25	57M11528	1	Elec. Connector Accessory	-
26	57M11523	1	Elec. Connector Housing	Cab to Chassis Connection 2
26	57M9809	4	Elec. Connector Terminal	-
26	57M9807	8	Elec. Connector Terminal	-
27	57M11528	1	Elec. Connector Accessory	-
28	57M11524	1	Elec. Connector Housing	Cab to Chassis Connection 1
28	57M8569	4	Elec. Connector Terminal	-
28	57M9809	8	Elec. Connector Terminal	-
28	57M9807	7	Elec. Connector Terminal	-
29	57M10770	2	Elec. Connector Terminal	-
29	57M9883	2	Elec. Connector Cable Seal	-
29	57M7261	1	Elec. Connector Housing	Right Fender Connector
29	57M7296	1	Elec. Connector Accessory	-
30	57M8156	1	Elec. Connector Housing	Transmission to chassis Inline
30	57M8318	1	Elec. Connector Terminal	-
30	57M9884	8	Elec. Connector Cable Seal	-
30	57M8304	1	Elec. Connector Terminal	-
30	57M8299	6	Elec. Connector Terminal	-
30	57M8300	2	Elec. Connector Terminal	-
31	57M10613	1	Elec. Connector Housing	-
31	57M10330	14	Elec. Connector Terminal	-
31	57M10617	8	Elec. Connector Housing	-
32	57M10614	1	Elec. Connector Housing	Steering System Control Unit J2
33	57M10604	1	Elec. Connector Housing	-
34	57M10617	2	Elec. Connector Housing	-
34	57M10330	3	Elec. Connector Terminal	-
34	57M10605	1	Elec. Connector Housing	Steering System Control Unit J1
35	57M10604	1	Elec. Connector Housing	-
36	57M10611	1	Elec. Connector Housing	Steering System Control Unit J3
37	19M7302	1	Cap Screw	M6 X 8
38	57M7261	1	Elec. Connector Housing	Left Fender Connector
38	57M9883	2	Elec. Connector Cable Seal	-
38	57M10770	2	Elec. Connector Terminal	-
39	57M8866	1	Elec. Connector Terminal	Power Stud
40	57M7567	1	Elec. Connector Terminal	-
41	57M10374	1	Elec. Connector Terminal	PWR Mod SW Output
42	57M9729	1	Elec. Connector Housing	PWR Mod SW Signal
42	57M9807	2	Elec. Connector Terminal	-
43	57M7254	1	Elec. Connector Housing	PWR Mod SW Signal
43	57M9883	2	Elec. Connector Cable Seal	-
43	57M10770	2	Elec. Connector Terminal	-
43	57M9712	1	Elec. Connector Accessory	-
43	57M9696	1	Elec. Connector Terminal	-
44	57M8981	1	Elec. Connector Housing	PWR Module Output
44	57M10400	1	Elec. Connector Accessory	-
44	57M10375	1	Elec. Connector Terminal	-
45	57M10401	1	Elec. Connector Accessory	-
46	57M10367	1	Elec. Connector Housing	Vehicle Control Unit J2
46	57M10619	3	Elec. Connector Housing	-
46	57M10217	4	Elec. Connector Terminal	-
46	57M10330	6	Elec. Connector Terminal	-
46	57M10617	5	Elec. Connector Housing	-
47	57M10613	1	Elec. Connector Housing	-
48	57M10614	1	Elec. Connector Housing	Vehicle Control Unit J1
48	57M10617	7	Elec. Connector Housing	-
48	57M10330	20	Elec. Connector Terminal	-
49	RE258807	1	Tie Band	-
50	R213663	1	Clamp	-
51	57M12042	1	Elec. Connector Accessory	-
52	57M10630	1	Clip Kit	-
53	57M9229	1	Clip	-
54	AH225366	1	Clip	-
55	RE304437	1	Battery Cable	-
56	57M8901	1	Elec. Connector Terminal	-
57	57M9731	1	Elec. Connector Housing	Diesel Exhaust Fluid Line Heaters Pressure Line
