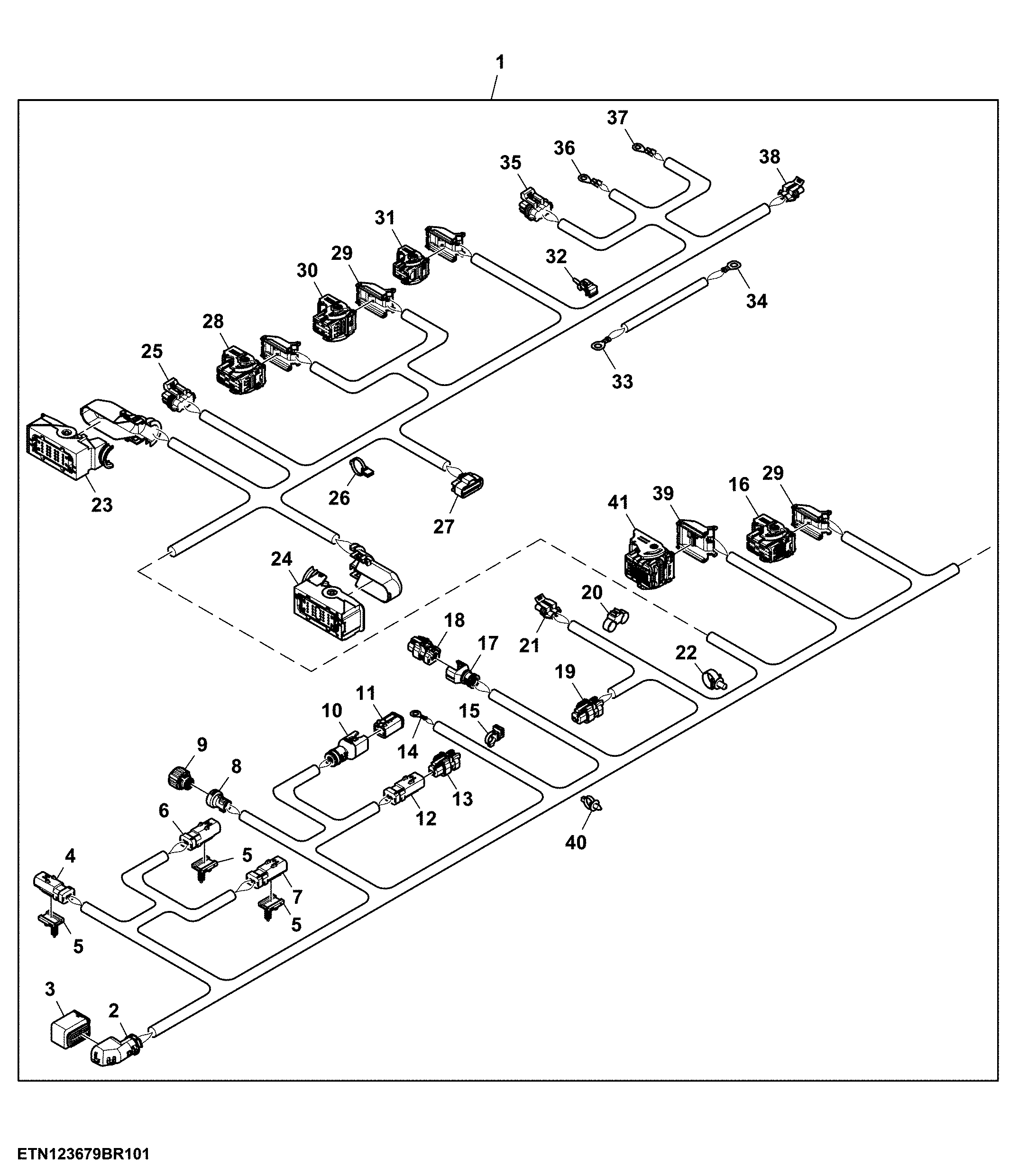

Chassis Wiring Harness (1/3) ( - 178135)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK22978	1	Wiring Harness	SUB FOR AKK19646
2	57M11439	1	Elec. Connector Accessory	-
3	57M11248	10	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
3	57M10958	1	Elec. Connector Housing	SCR Supply Module B5501
3	57M8241	10	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
4	57M9731	1	Elec. Connector Housing	Diesel Exhaust Fluid Line Heaters, Pressure Line E5601
4	57M9837	1	Elec. Connector Accessory	-
4	57M9810	2	Elec. Connector Terminal	Cavity 1, 2
5	57M9940	3	Elec. Connector Accessory	-
6	57M9732	1	Elec. Connector Housing	Diesel Exhaust Fluid Line Heaters, Return Line E5603
6	57M9837	1	Elec. Connector Accessory	-
6	57M9810	2	Elec. Connector Terminal	Cavity 1, 2
7	57M9730	1	Elec. Connector Housing	Diesel Exhaust Fluid Line Heaters, Suction Line E5602
7	57M9837	1	Elec. Connector Accessory	-
7	57M9810	2	Elec. Connector Terminal	Cavity 1, 2
8	57M11120	1	Elec. Connector Accessory	-
9	57M13137	1	Elec. Connector Housing	Coolant Control Valve A5507
9	57M7948	2	Elec. Connector Terminal	Cavity 1, 4
9	57M7951	2	Elec. Connector Terminal	Cavity 1, 4
10	57M12049	1	Elec. Connector Accessory	-
11	57M10530	1	Elec. Connector Housing	Diesel Exhaust Fluid Quality Sensor B5214
11	57M8016	1	Elec.Connect Locking Device	-
11	57M8165	2	Elec. Connector Terminal	Cavity 1, 2
11	R78065	2	Elec. Connector Terminal	Cavity 3, 4
12	57M9812	2	Elec. Connector Terminal	Cavity 1, 2
12	57M9939	1	Elec. Connector Accessory	-
12	57M9776	1	Elec. Connector Housing	CAN Terminator A916
13	57M11134	1	Elec. Connector Housing	2W CAN Terminator
14	57M8872	1	Elec. Connector Terminal	Fuel Neck Ground XGND14
14	57M11496	1	Elec. Connector Accessory	-
15	AH225366	1	Clip	-
16	57M10614	1	Elec. Connector Housing	Vehicle Control Unit J1 A570-J1
16	57M10330	17	Elec. Connector Terminal	Cavity A1, A3, A4, B1, B2, B3, C1, D1, D4, F3, G4, H1, H2, J1, J3, K1, K2
16	57M10617	7	Elec. Connector Housing	Cavity L1, L2, L4, M1, M2, M3, M4
17	57M9837	1	Elec. Connector Accessory	-
18	57M9726	1	Elec. Connector Housing	Fuel Level B692
18	R78065	2	Elec. Connector Terminal	Cavity 1, 2
19	57M9772	1	Elec. Connector Housing	Chassis to Backup Alarm Inline X014B
19	R78065	2	Elec. Connector Terminal	Cavity 1, 2
19	57M9837	1	Elec. Connector Accessory	-
20	R213663	1	Clamp	-
21	57M7254	1	Elec. Connector Housing	Park Brake Solenoid Y664
21	57M9712	1	Elec. Connector Accessory	-
21	57M10770	2	Elec. Connector Terminal	Cavity A, B
21	57M9883	2	Elec. Connector Cable Seal	Cavity A, B
22	57M10630	5	Clip Kit	-
23	57M9807	7	Elec. Connector Terminal	Cavity 15, 16, 17, 18, 19, 21, 22
23	57M9809	11	Elec. Connector Terminal	Cavity 3, 6, 7, 8, 10, 12, 14, 20, 24, 25, 26
23	57M8569	4	Elec. Connector Terminal	Cavity 1, 2, 27, 28
23	57M11524	1	Elec. Connector Housing	Cab to Chassis Connection 1 X500A
23	57M11528	1	Elec. Connector Accessory	-
24	57M11523	1	Elec. Connector Housing	Cab to Chassis Connection 2 X501A
24	57M11528	1	Elec. Connector Accessory	-
24	57M9809	5	Elec. Connector Terminal	Cavity 4, 15, 16, 19, 20
24	57M9807	8	Elec. Connector Terminal	Cavity 8, 9, 10, 13, 17, 23, 24, 26
25	57M7261	1	Elec. Connector Housing	Right Fender Connector E186B
25	57M7296	1	Elec. Connector Accessory	-
25	57M10770	4	Elec. Connector Terminal	Cavity A-D
25	57M9883	4	Elec. Connector Cable Seal	Cavity A-D
26	57M12042	3	Elec. Connector Accessory	-
27	57M8156	1	Elec. Connector Housing	Transmission to Chassis Inline X330B
27	57M9884	9	Elec. Connector Cable Seal	Cavity C-F, K, N, P, R, S
27	57M8318	1	Elec. Connector Terminal	Cavity A
27	57M8300	2	Elec. Connector Terminal	Cavtity F, R
27	57M8299	7	Elec. Connector Terminal	Cavity C, D, E, K, N, P, S
27	57M8304	1	Elec. Connector Terminal	Cavity A
28	57M10614	1	Elec. Connector Housing	Steering System Control Unit J2 A980-J2
28	57M10330	14	Elec. Connector Terminal	Cavity A1, A3, B1, D2, D4, E1, E2, F1, G1, H1, J1, J2, K2, K3
28	57M10617	8	Elec. Connector Housing	Cavity L1-L4, M1-M4
29	57M10613	2	Elec. Connector Housing	-
30	57M10617	2	Elec. Connector Housing	Cavity G1, H3
30	57M10330	3	Elec. Connector Terminal	Cavity A2, C4, E3
30	57M10605	1	Elec. Connector Housing	Steering System Control Unit J1 A980-J1
30	57M10604	1	Elec. Connector Housing	-
31	57M10611	1	Elec. Connector Housing	Steering System Control Unit J3 A980-J3
31	57M10604	1	Elec. Connector Housing	-
32	57M9229	2	Clip	-
33	57M8866	1	Elec. Connector Terminal	Power Stud A100-30
34	57M7567	1	Elec. Connector Terminal	Power Stud X008
35	57M7261	1	Elec. Connector Housing	Left Fender Connector E183B
35	57M7296	1	Elec. Connector Accessory	-
35	57M10770	4	Elec. Connector Terminal	Cavity A-D
35	57M9883	4	Elec. Connector Cable Seal	Cavity A-D
36	57M10374	1	Elec. Connector Terminal	Rear Power 1 A100-87
37	57M10374	1	Elec. Connector Terminal	Implement Hydraulic Oil Fan Power A100-87a
38	57M7254	1	Elec. Connector Housing	Implement Power Relay A100
38	57M9712	1	Elec. Connector Accessory	-
38	57M10770	2	Elec. Connector Terminal	Cavity A, B
38	57M9883	2	Elec. Connector Cable Seal	Cavity A, B
39	57M10401	1	Elec. Connector Accessory	-
40	RE258807	1	Tie Band	-
41	57M10367	1	Elec. Connector Housing	Vehicle Control Unit J2 A570-J2
41	57M10619	3	Elec. Connector Housing	Cavity 1-3
41	57M10217	4	Elec. Connector Terminal	Cavity 4-6, 44
41	57M10330	5	Elec. Connector Terminal	Cavity 10, 25, 26, 35, 36
41	57M10617	5	Elec. Connector Housing	Cavity 18, 29, 30, 41, 42
41	57M10331	1	Elec. Connector Terminal	Cavity 53

Chassis Wiring Harness (1/3) ( - 178135)
