Brackets and Supports, Rear Hood, FT4

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R555082	2	Guide	-
2	19M7835	4	Screw	M10 X 35
3	19M9405	1	Screw	M8 X 16
3	KK53896	1	Screw	M8 X 16, Corrosion Resistance
4	19M9836	10	Screw	M8 X 20
4	KK53905	10	Screw	M8 X 20, Corrosion Resistance
5	19M9838	2	Screw	M8 X 30
5	KK53935	2	Screw	M8 X 30, Corrosion Resistance
6	19M9840	1	Screw	M8 X 40
6	KK53942	1	Screw	M8 X 40, Corrosion Resistance
7	24M7338	2	Washer	17 X 30 X 3 mm
8	24M7345	4	Washer	13.500 X 24 X 2.500 mm
9	40M7059	4	Snap Ring	-
10	KK17433	1	Bracket	-
11	N311717	1	Spacer	-
12	N406364	2	Bushing	-
13	RE191783	4	Ball Bearing	-
14	KK24360	1	Support	-
15	R259541	2	Bolt	-
17	R289234	1	Pin Fastener	-
18	R547113	1	Bracket	-
19	AKK29539	1	Barrier	SUB FOR RE572454
20	KK20960	1	Support	ORDER KK35972
20	KK35972	1	Support	-
21	AKK21218	1	Support	RH
22	AKK21217	1	Support	LH
23	19M9856	4	Screw	M16 X 80
23	KK54382	4	Screw	Corrosion Resistance
24	KK54782	4	Lock Nut	M16, Corrosion Resistance
24	14M7726	4	Lock Nut	M16
25	19M9154	2	Cap Screw	M20 X 60
25	KK54432	2	Cap Screw	M20 X 60, Corrosion Resistance
26	N312295	2	Spacer	-
27	KK27643	1	Bracket	-
28	24M7617	1	Washer	17 X 30 X 3 mm
28	KK54928	1	Washer	17 X 30 X 3 mm (0.669" X 1.181" X 0.118"), Corrosion Resistance
29	F2863R	1	Snap Ring	-
30	R183008	4	Bushing	-
31	R288350	1	Linkage	-
32	R289232	3	Pin Fastener	-
33	R294777	1	Hinge	-
34	R297389	1	Pin Fastener	-
35	R329837	1	Linkage	-
36	R549721	1	Linkage	-
37	RE572574	1	Spring	-
38	19M9854	2	Screw	M12 X 90
39	19M9347	4	Screw	M12 X 30
39	KK54282	4	Screw	M12 X 30, Corrosion Resistance
40	14M7722	2	Lock Nut	M8, USE WITH AKK29539
40	KK54762	2	Lock Nut	M8, Corrosion Resistance USE WITH AKK29539
41	KK51390	1	Bracket	-
42	24H1721	2	Washer	13/64" X 15/32" X 0.049"
43	14M7100	2	Nut	M4
44	24M7138	26	Washer	5.300 X 15 X 1 mm
45	R542174	1	Bracket	-
46	19M9224	5	Cap Screw	M4 X 14
47	R292644	1	Seal	-
48	R538298	25	Rivet	-
16A	R345595	1	Bracket	RH; ORDER RE583888
16B	RE583888	1	Bracket	RH

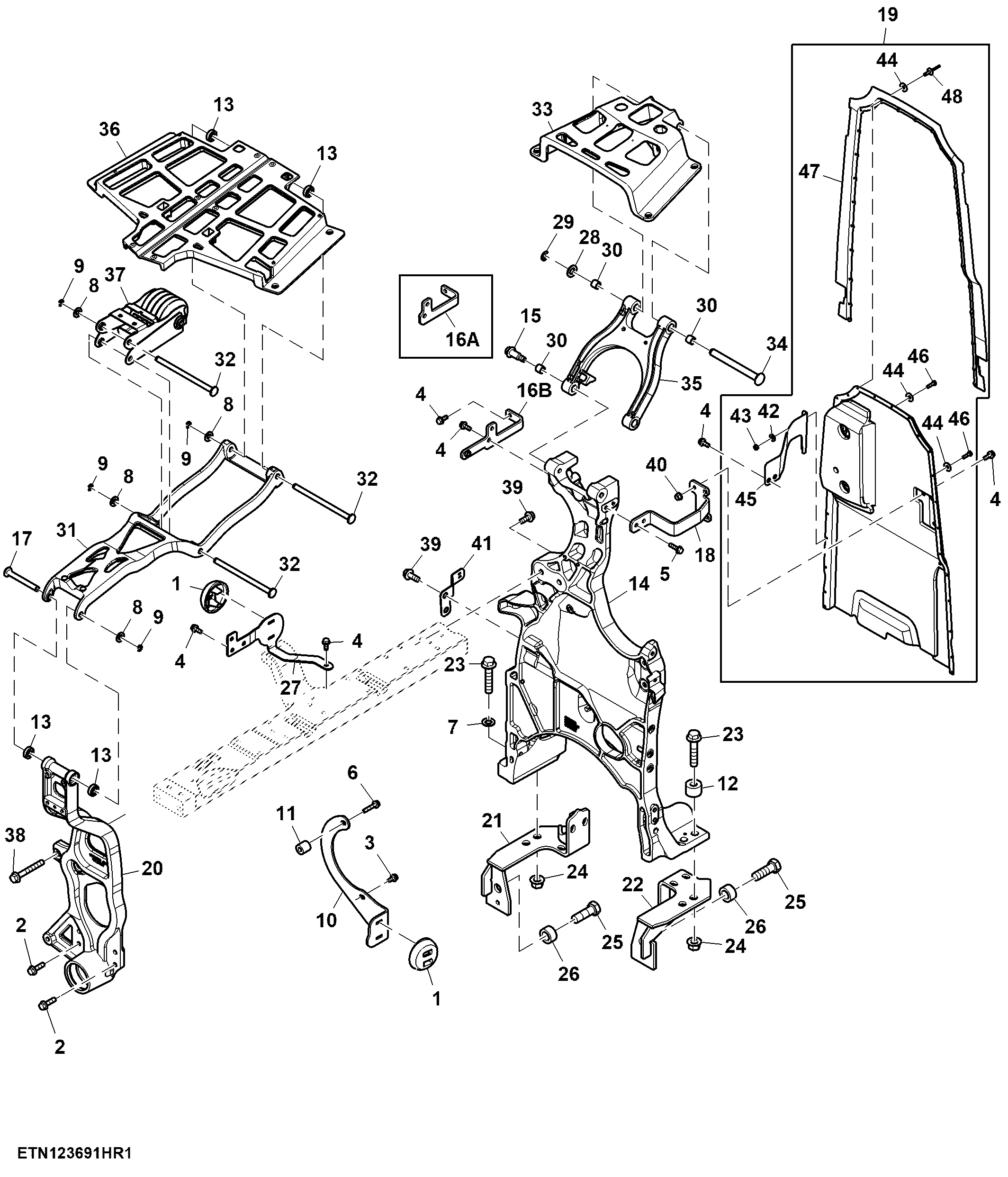

Brackets and Supports, Rear Hood, FT4
